TOP SELLING RACKS

Toyocc's best-selling glass storage and mobile shelves.

Inquire

L-type Glass Storage Rack

Harp Glass Rack

A Frame Glass Rack Trolley

Dual IG Storage Rack

→

Manual Glass Storage Rack Shelf Roller Car

1.Light and compact, easier use 2.Storage glass packs in a compact space 3.Customized size and design are available 4.Easy put and pick glass packs with manual operation

→

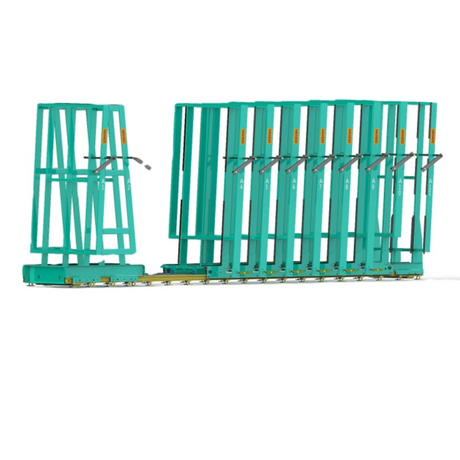

Maunal Glass Storage System

1. Light and compact, easier use 2. Storage glass packs in a compact space 3. High quality rubber pads with built-in steel plates 4. Customized size and design are available 5. Sold and used in one set 6. Square steel tubing: 60*60*3mm 7. Electrostatic spraying for long lasting surface 8. Easy put and pick glass packs with manual operation

→

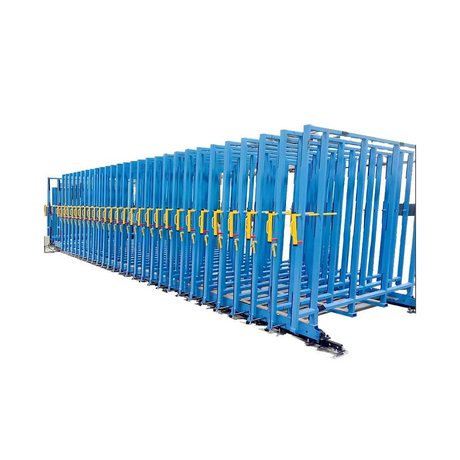

Electrical Glass Storage System

1. Light and compact, easier use 2. Storage in one compact shape and space 3. High quality rubber pads with built-in steel plates 4. Customized size and design are available 5. Sold and used in one set 6. Square steel tubing: 60*60*3mm 7. Electrostatic spraying for long lasting surface 8. Electrical control with speed of 1m/min 9. Overhead crane to pick up and put the glass pack 10.The height of warehouse needs to be more than 4m 11.One 40HQ can contain 20 racks

Description:
The L-Type/shape glass storage rack/shelf is a mufti-functional glass stock rack integrating storage and transport all-in-one.

It is the first choice to store fragmented glass or finished glass.

The shelf angle strictly controlled at 90 degrees, so it will never be slipped for the hollowed glass.

With a crown block and forklift truck, it can move glass with great stability. And also can be directly handled by crane.

The shelf can be overlaid one by one to save storage space, transport space, and improve the utilization rate of the warehouse.
Description:
This product is widely used in high-end glass, hollow glass pairing, and other places with a strict requirement on glass placing.
It can ensure that single piece of glass not hurt when placing. For hollow glass pairing, it can take and put glass accurately, to achieve the goal of saving manpower & time & space.
The shelf has a device for fixing glass to avoid glass slide down when moving.
It uses separated structure, easy to assembly and installation, can greatly reduce the cost of transportation.

Description

Sturdy structure, designed to eliminate any risk of slabs tipping over.

Slabs are placed on a special rubber profiles and secured with four ratchet securing bars. Contains an extra storage section in the center that is ideal for storing tools.

Frame features two eyelets which can be used to pick up the frame with an overhead crane. Built in brackets on all sides for forklift transport.

Four 2T and 5T heavy-duty removable casters included.

reaches 220mm, suitable for big truck transport.
Description
The Dual IG Storage Rack Unit is a free loading harp storage rack (optional mounted on four heavy-duty casters).
The floor is with numbered slots and glass handling controlled by a dual set of replaceble dividing nylon cords and corners.
Glass is delivered to the washer sorted in the proper order to match up with the spacer frames.
The washer operator simply loads each glass sheet in order from the racks. Also offered are 100-slot carts for single slotting glass.

Professional Painting

It is more corrosion-resistant than ordinary spray paint, not easy to fade, more durable and more beautiful.

Warehouse

Harp Glass Rack

1. Light and compact, easier use
2. Storage and transportation all in one
3. Detachable into parts when shipping to save space
4. Customized size and design are available
5. Sold and used in one
6. For hollow glass pairing and other exquisite glass sheet which needs careful storage condition
7. Small nylon wheels in the base to reduce friction and scratch
8. Electrostatic spraying for long lasting surface
L type Rack

1. Square steel tubing 60*60*3mm
2. Self-weight 168kgs
3. Added strengthening plates for increased Working Load Limit and stability from our previous design.
4. Working loading weight: 20 Ton
4. Includes rubber to protect material and improve stability
5. Sold and used in pairs
6. One connection between two racks to fix the position
Dual IG Storage Rack

1. Rugged structural steel design with multiple base and divider options designed to fit your needs
2. The rack base and back vertical members are all MIG welded construction
3. Durable electrostatic coating for long-lasting durability
4. The harp dividing nylon cords and corners are removable, so that the cords and corner can be replaced when it becomes worn.
5. The rack flooring contains bolted HDPE strips glass contact surfaces for easy sliding of glass.
6. HDPE strips also provides a non-stick surface for insulated glass.
7. Labeled slots is easy to organize production for the rest of the plant
8. Frame for storing / transporting insulating glass units for inside and outside, mounts for forklifts and industrial trucks, optionally four additional casters.
9. Multiple racks are shipped stacked & vertically nested for freight savings.
10. User assembly of cords and casters.
