Pneumatic Vacuum Glass Lifter Sucker – Rotation
Product Description

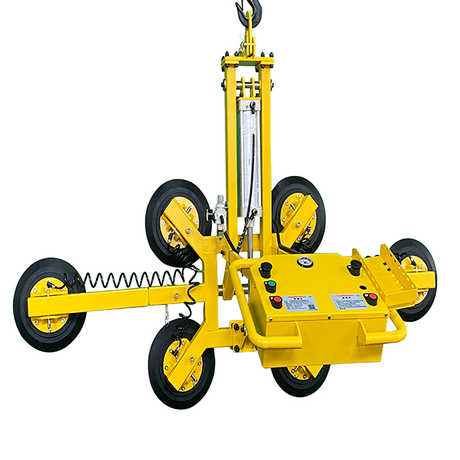

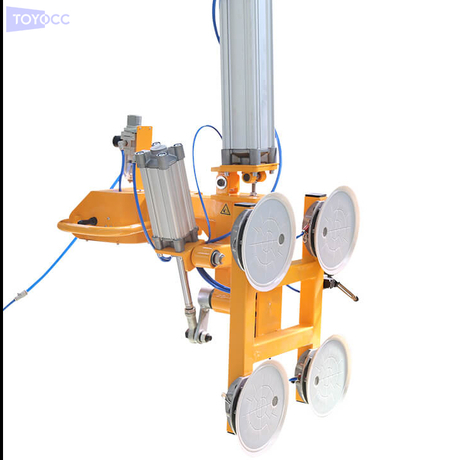

TYRYS-XF350/500 Rotary Pneumatic Glass Vacuum Lifter
uDescription
Vacuum glass lifters have become widely used for lifting glass sheets in factories and glass wall installation outdoors. Safety and efficiency are the two main reasons for using vacuum glass lifters — reducing the number of personnel required while minimizing the risk of injury. Glass is moved safely and stacked without extra personnel in the unloading area.
Our vacuum glass lifters use Thomas (USA) as the vacuum pump and Japan SMC as the control system. The vacuum pads are made from special imported silicone — no cracking at -20°C and high temperature resistance up to 90°C.
When the equipment is suddenly cut off or an air pipe bursts, the control system automatically locks vacuum to ensure glass will not fall for 10-15 minutes.
uFeatures
✓ 90° manual rotation
✓ 250-500 kg safe working load
✓ Japan SMC for lifting air cylinder, vacuum generator, one-way valve, vacuum manometer, air cleaner, etc.
✓ Extension arms for different configurations
✓ Imported vacuum pads with temperature resistance -20°C to 90°C
uSpecification
| Model | TYRYS-XF350/500 |
| Working Load | 250 / 500 KG |
| Rotation Degree | 90° manual rotation |
| Vertical Lifting Max Distance | 1.2 meters |
| Pad Quantity | 2, 4 or 6 |
| Pad Diameter | 250 mm |
| Pad Material | Silica Gel |
Product Gallery
