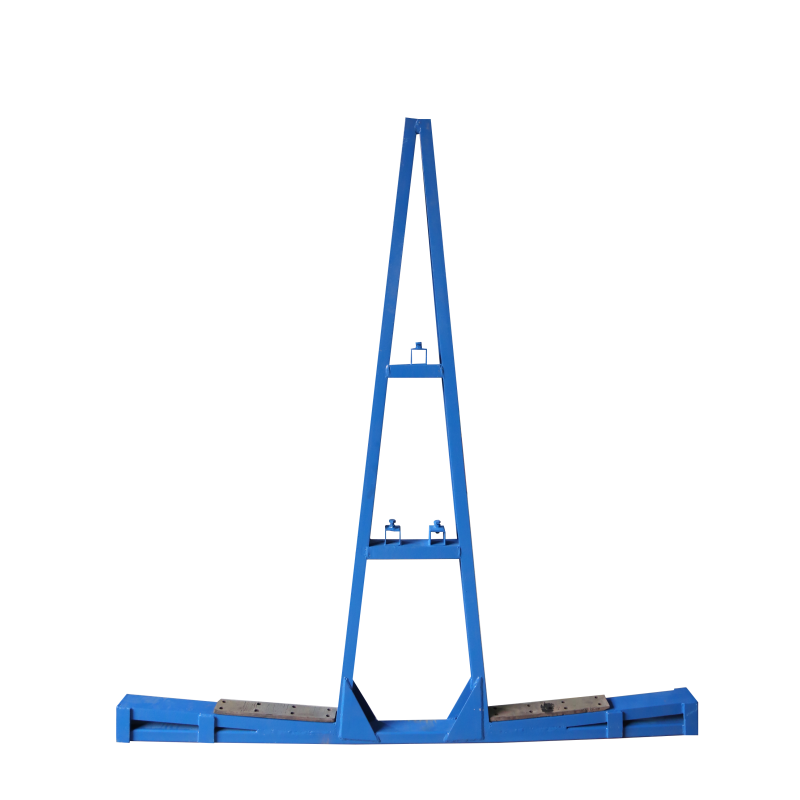

A Frame Glass Transportation Rack

1. Square steel tubing 60*60*3mm
2. Self-weight 200kgs
3. Added strengthening plates for increased Working Load Limit and stability from our previous design.
4. Working loading weight: 4Ton
5. Includes rubber to protect material and improve stability
6. Sold and used in pairs
7.One connection between two racks to fix the position
  • A frame glass transportation rack
  • Toyocc
Availability:
Quantity:

Product Description

2022 New TOYOCC  Catalog.pdf                                       A Frame Glass Transportation Rack


A frame Glass rack transportation type leather


Description

Designed for several packs of glass transportation, dozens of packages can be put in neat pattern with saving the most of space. It is constructed of 60mm square tubing and a channel base with angled rubber to protect glass, and it comes as a set of two. Strengthening plates have been added at the base, increasing the Working Load Limit. Both sizes can be extended unlimited.



Features

  • Square steel tubing 60*60*3mm

  • Self-weight 200kgs

  • Added strengthening plates for increased Working Load Limit and stability from our previous design.

  • Working loading weight: 4Ton

  • Includes rubber to protect material and improve stability

  • Sold and used in pairs

  • One connection between two racks to fix the position


Specification


A Frame Glass Transportation Rack

Model: A Frame Glass Transportation Rack

Operating weight: 4T

Height: 2440mm/ 1900mm

Length: 2200mm/2200mm

Self Weight:200kgs

Square steel tube: 60*60*3mm

Function:Mainly for glass packs storage, saving the most of space.

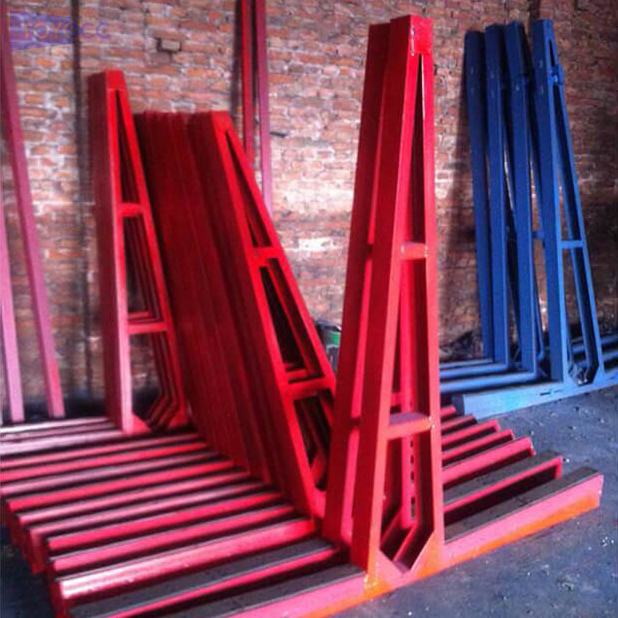

 A frame rack


u Application

Transportation rack

A frame rack

A frame rack
