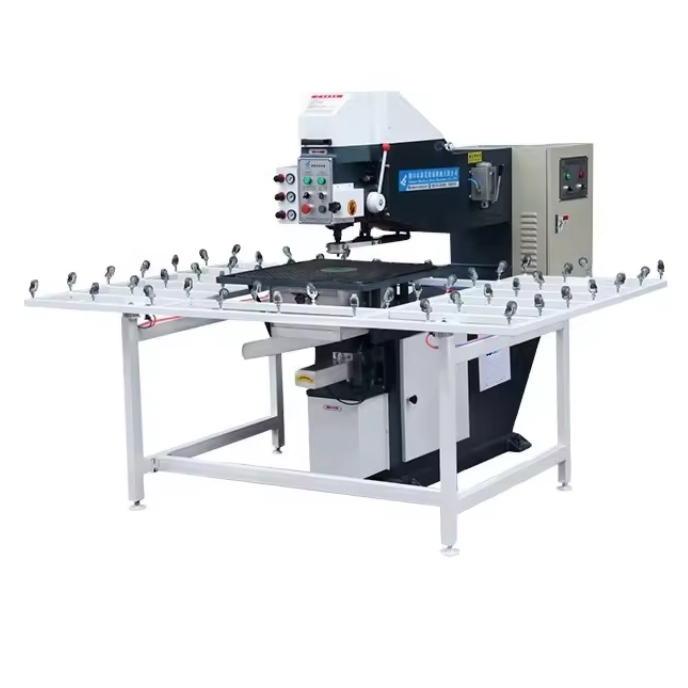

Auto, Semi-auto Glass Hole Drilling Machine

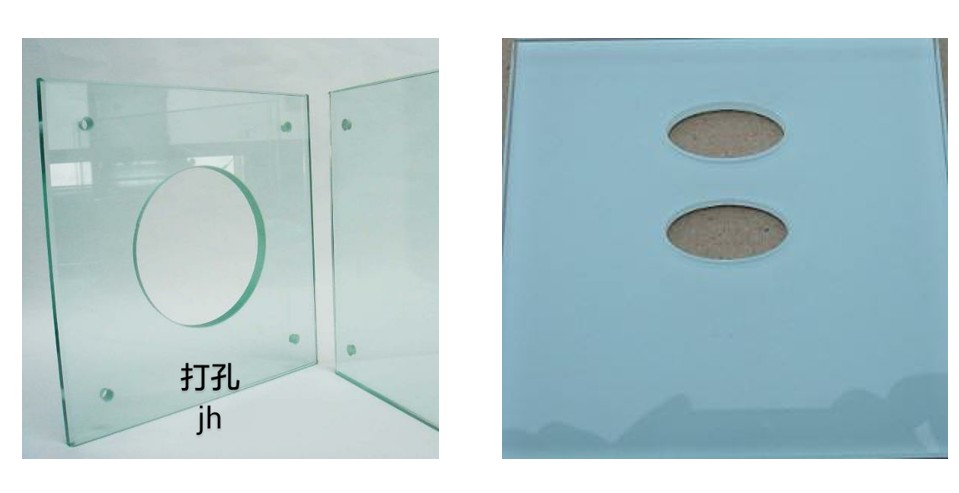

1. Capable of Drilling Large-Diameter Holes
2. Low Worktable for Easy Operation
3. Stable Drilling Speed with Gas Pressure Control
4. High Production Efficiency
5. Suitable for Mass Production and Assembly Lines
  • TOYZ220

  • TOYO

  • 8464901900

Availability:
Quantity:

Product Description

Introduction of Glass Drilling Machine

The glass drilling machine adopts automatic control design, pneumatic clamping glass, feed oil pressure buffer technology, free adjustment of the automatic drilling time and speed of the upper and lower drills, the upper and lower drills nest and drill successively. The working table adopts pneumatic lifting, equipped with movable positioning and automatic material receiving device, which can quickly and accurately locate the batch processed glass workpieces. The product is divided into automatic and manual options.

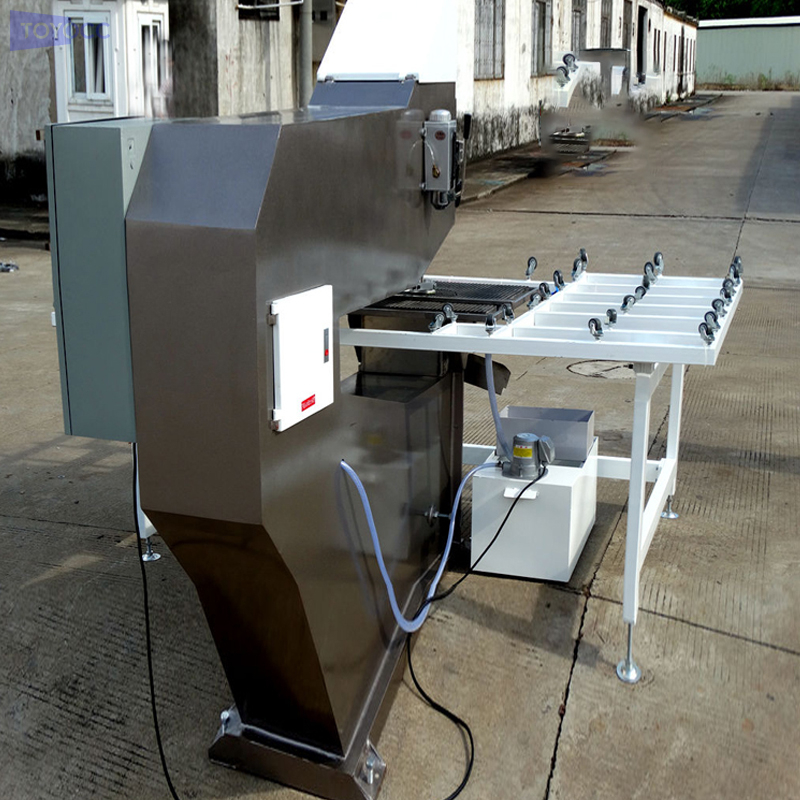

JGZK0222 glass drilling machine-1

Glass drilling machine Main configuration (Some configuration brands may be replaced due to products improvement without notify and Sunkon will have the right of final explanation.)

Name Main specific
Frame material This Frameadopt high quality casting material, through anneal process, with stable structure, can support large process loading
Grinding motor Adopt Guanghua brand.
Water pump adopt SHANQING brand
Bearing Adopt HRE brand
rotary switch / emergency switch adopt CHINT brand
Transformer, low voltage breaker, contactor adopt CHINT brand

Equipment acceptance standards
1. The up and down principal axis proper alignment:  Not more than φ 0.2 tolerance
2. The vertical of the table to the shaft axis line: Within the scope of φ 300 for 0.12
3. The radial runout with the center line which are in the taper hole of spindle: 50 around the main spindle position is 0.1
4. The error with diameter of the glass hole after processed not more than 0.3mm, and the glass edges not more than 0.5mm



1. Pay attention to safety during debugging and use, and do not touch the moving parts and power parts of the machine when the machine is started.
2. Do not place tools and other objects on the conveyor rail and cover of the machine
3. In an emergency, you should immediately press the "Emergency Stop" button or pull down the power-off switch
4. Keep the water tank with sufficient cooling water and clean water at all times to avoid burning the grinding wheel and glass, and timely clean up the grinding impurities in the water inlet and outlet pipes to keep the water circulation unblocked
5. Before each drilling work, check whether all switches work normally and whether the control direction is correct. If it is incorrect or the control direction is wrong, stop the machine for inspection immediately, otherwise it will cause serious damage to the machine
6. The operating temperature of the motor should be less than or equal to the ambient temperature +50°C.

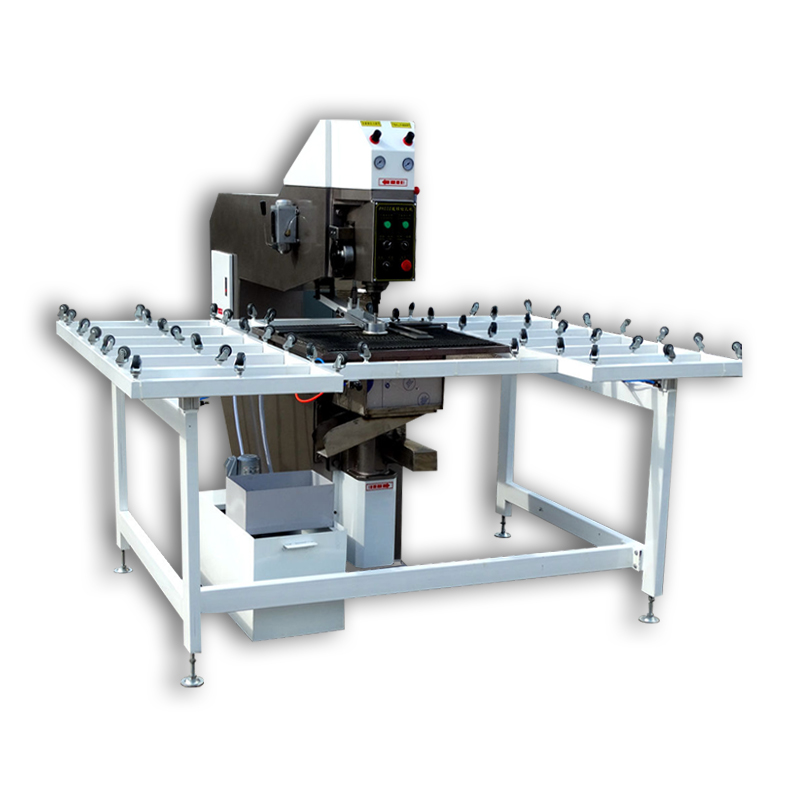

JGZK0222 glass drilling machine-3


Main Parameters

1.   drilling diameter: ø4-ø220mm

2.   Thickness of the glass: 2mm-20mm

3.   Maximum size of processed glass:2600mm*1800mm

4.   Height of the Worktable:1000mm

5.   Distance between center of drill shaft and column:1257mm

6.   Angle of Countersink:60°

7.   Dimension of the main machine: 750*2100*1700mm

8.   Dimension with the platform: 2200*2700*1700mm

9.   Weight:1000kg

10. Power:~380V/50HZ


  Technical Parameters:


Glass Drilling Machine
Model TOYZ220
Overall appearance 2200*2700*1700(mm)
Running mode Fully-automatic and Semi-automatic
Drilling diameter ø4-ø220mm
Maximum size of processed glass 2600mm*1800mm



  Technical description of drilling machine structure

1. Glass pressing mechanism: It is used to press the glass to facilitate drilling and nesting.
2. Upper drill bit operating mechanism: Operate the upper drill bit for manual drilling and manual drilling and nesting.
3. Speed adjustment and belt tensioning mechanism: used to adjust the speed of the upper and lower drill shafts and the adjustment of belt feeding.
4. Electrical control box and operation panel; used to control and operate the machine for work.
5. Floating table: used as an auxiliary support for the workpiece when processing large workpieces. When the size of the processed part is not large, it is not necessary to install this part.
6. Cooling system: cooling water is used to cool the upper and lower drill bits.
7. Pneumatic system: Provide power for clamping mechanism, material receiving mechanism, lower drill bit feed and floating table movement.

8. Material receiving mechanism: used to receive and store the drilled material core.
