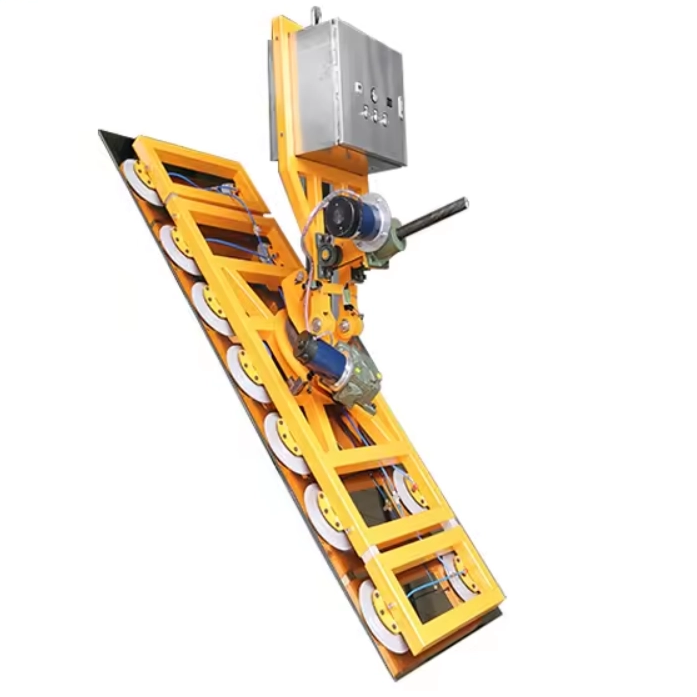

Electrical Vacuum Lifter sucker

1.Heavy and compact, easier operation with remote control 2.Battery power, no cable connection needed 3.12 pcs of vacuum suction cups, working load up to 1.2T 4.Electrical l turning-over 90°and rotation 360° 5.Digital vacuum pressure display and LCD battery display 6.Sealed cover for components protection, suited for outdoor use 7.Designed for big-sized glass, mainly suitable for outdoor screen installation/and outdoor large glass movement
Availability:
Quantity:

Product Description

vacuum lifter sucker

u Description

Designed for big-sized glass, mainly suitable for outdoor screen installation/and outdoor large glass movement, it has rotating and reversal function. (customer also could choose single rotating and reversal function); the machine has power-off protection and alarm function for lack of vacuum. Make use safely, meanwhile could add telecontrol device, suitable for the glass in top outdoor screen.



u Features

l  Heavy and compact, easier operation with remote control

l  Battery power, no cable connection needed

l  12 pcs of vacuum suction cups, working load up to 1.2T

l  Electrical l turning-over 90°and rotation 360°

l  Digital vacuum pressure display and LCD battery display

l  Sealed cover for components protection, suited for outdoor use

l  Designed for big-sized glass, mainly suitable for outdoor screen installation/and outdoor large glass movement











u Appearance Diagram

图纸

u Specification

  • Electrical Vacuum Lifter sucker (electrical turning over and rotation)

Model
  Data

Electrical Vacuum Lifter sucker

 (Electrical   Rotation and Turning Over)

Power

DC38V AC380V optional

Working Weight

1000-1500 kgs

Vertical Rotation

 rotation 360°

Horizontal Turning Over

Electrical   l turning-over 90°

Control

Manual/Remote

Function

Voltmeter, power-off protection for 15 minutes without   falling off; barometer, insufficient pressure alarm function

Vacuum System

Vacuum Pump

Air Power



Electric vacuum pump compressed   air 6-9 Pa

Cup Qty

12,14

Lifting Method

Plug-in to the lifting tool
