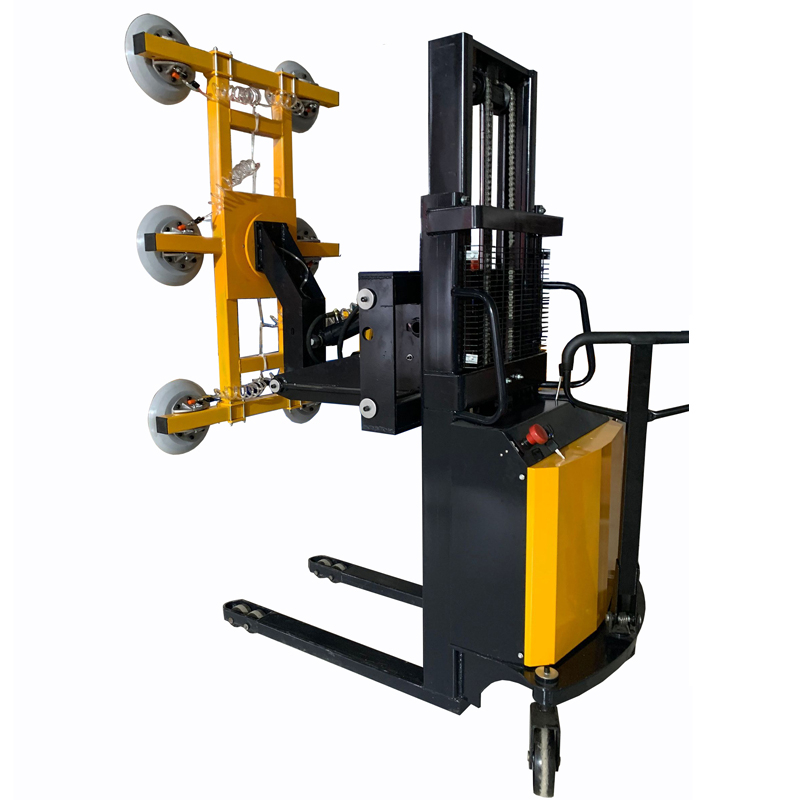

Lifting Equipment for Handling Glass, Iron Plate

Model: TRYN-S/ TRYN-F/ TRYN-N Max. Lifting Weight (horizontal): 800kgs-1000kgs Safe Loading Weight (Vertical): 400kgs-500kgs Operation: Manual/ Electrical Lifting Height: 1600mm Max Lifting Plate Size: 3660*2440mm Suction Cup Diameter: 300mm Lifting Speed:90mm/120s Falling Speed:125mm/80s Lifting Motor: 2.2kw Front Wheel Size: 80*70mm Back Wheel Size: 150*50mm Brake Method: Foot brake/ Electromagnetic brake
  • Cranage Equipment

  • Toyocc

Availability:
Quantity:

Product Description

Cranage Equipment for Handling Glass, Iron Plate, Stainless Steel Plate and Other Plates

Cranage Equipment

Introduction:
The production and design of the TRYN series suction cup pallet truck combines the advantages of forklifts and suction cup spreaders, which can be used as the functions of ascending, descending, forward tilting, backward tilting, side shifting, rotating, and side turning, and can lift the glass from horizontal to vertical or Any switch from vertical to horizontal, generally used for handling, loading and unloading glass, iron plate, stainless steel plate and other plates. Among them, TRYN-S requires manpower to push and pull to walk, TRYN-F can walk electrically, and RYN-N is a counterweight type without support legs, which is more convenient to operate. Can receive non-standard customization.

Features:
1. Battery powered, no need for external air source or power source, electric inhale and deflate, easy to use
2. It can be equipped with electric rotation, side rotation, side shift and other functions
3. High-power motor, strong power, stable operation
4. Japan's Panasonic digital display pressure sensor, with automatic start-stop function, clearly monitor the safe operation of the equipment
5. Built-in vacuum pressure compensation system to ensure that the entire vacuum system is maintained at a relatively constant safety value during the glass handling process. Even if the power is off unexpectedly, the pressure holding function can extend the emergency processing time and make it safer to use.
6. The position of the suction cup can be adjusted, and each suction cup is equipped with a separate control valve, which can suck different shapes and sizes of glass.

Specification:

Model / TRYN-S
Max. Lifting Weight (horizontal) Kg 800
Safe Loading Weight (vertical)
400
Operation / Manual
Lifting Height mm 1600
Max Lifting Plate Size mm 3660*2440
Suction Cup Diameter mm 300
Suction Cup Qty / 4/6/8
Lifting Speed mm/s 90/120
Falling Speed mm/s 125/80
Lifting Motor kw 2.2
Front Wheel Size mm 80*70
Back Wheel Size mm 150*50
Brake Method / Foot brake
Battery V/Ah 24/120



Model / TRYN-F
Max. Lifting Weight (horizontal) Kg 1000
Safe Loading Weight (vertical)
500
Operation / Electrical
Lifting Height mm 1600
Max Lifting Plate Size mm 3660*2440
Suction Cup Diameter mm 300
Suction Cup Qty / 4/6/8
Lifting Speed mm/s 90/120
Falling Speed mm/s 125/80
Lifting Motor kw 2.2
Walking Motor kw 1.2
Driving Wheel Size mm Φ300*80
Front Wheel Size mm 80*70
Balance Wheel Size mm 150*80
Brake Method
Electromagnetic brake
Power
AC
Battery V/Ah 24/120



Model / TRYN-N
Max. Lifting Weight (horizontal) Kg 1000
Safe Loading Weight (vertical)
500
Operation / Electrical
Lifting Height mm 1600
Max Lifting Plate Size mm 3660*2440
Suction Cup Diameter mm 300
Suction Cup Qty / 4/6/8
Lifting Speed mm/s 90/120
Falling Speed mm/s 125/80
Lifting Motor kw 2.2
Walking Motor kw 1.5
Driving Wheel Size mm Φ300*80
Front Wheel Size mm 150*80
Balance Wheel Size mm 150*80
Brake Method
Electromagnetic brake
Power
AC
Battery V/Ah 24/120(24/210 optional)


Close-up Pics:

Cranage Equipment

Cranage Equipment

Cranage Equipment

Cranage Equipment


Package and Loading:

Cranage Equipment


Custom Service:
In the future, we will provide better support to customers in the glass machinery and related consumables.
The most refreshing customer meets the most professional team, achieving the lowest cost fast cooperation.
Save customers a lot of time, purchase costs, get more professional team support, long-term consulting services,and cost-effective glass machinery products.
For glass factories, insulating glass factories, door and window factories, etc., the same support can be obtained.



Leave your email address, our team will provide the best solution we can provide!
