TYRSY-LM6PL6
| Quantity: | |
|---|---|
Product Description
Railing System

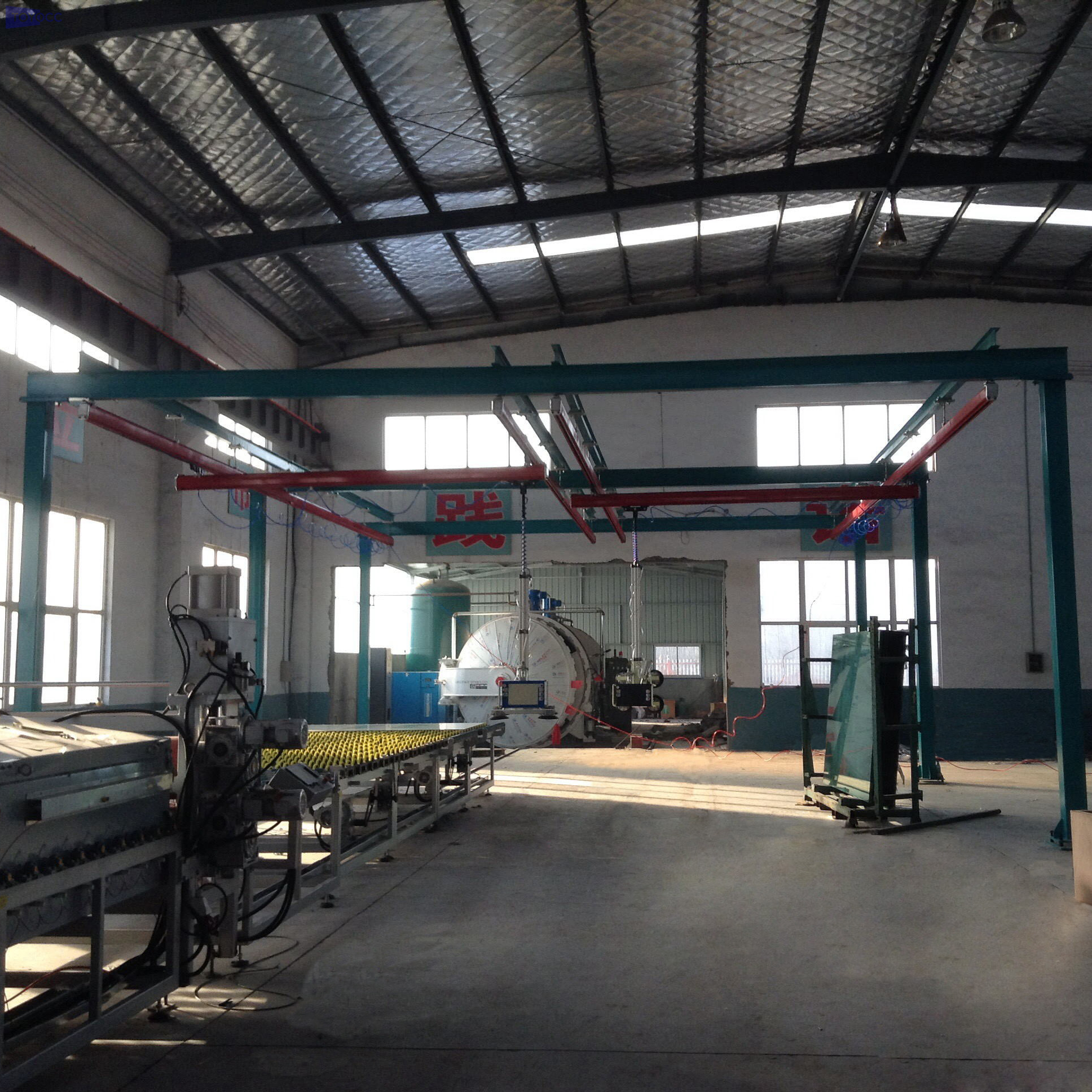

The outlooking looks like a porch; the vacuum lifter runs along the travelling beam of the porch; the travelling beam runs along the maim beam of the frame.
It is widely used in insulating glass line, lamination line, vertical CNC, tempering line and also cutting line, it with advantages of space-saving, stable to operate, manpower-saving and large area coverage.
The Porch-Shaped Overhead Crane takes your glass sheet to the production line and the right position that you’d like. It equipped with a vacuum lifter to operate your glass sheet up and down, rotate and tilt, quite easy to operate for one worker.
Vacuum Glass Lifter
Vacuum glass lifters have become widely used for lifting glass sheet in the factory and glass wall installation outdoor.
Safety and efficiency are two of the main reasons for using vacuum glass lifters. Not only does this equipment allow for a reduction in the number of personnel required to move piping, it also minimizes the risk or injury to ground personnel. Glasses are moved safely and stacked without extra personnel in the unloading area.
Our vacuum glass lifters are used Japan SMC as the control system of the electrical component, the vacuum pads are imported and made by the special silicones, it features with no crack at -20 degrees and high temperature resistance of 90 degrees.
When the equipment is suddenly cut off or the air pipe bursts, the control system will automatically lock the vacuum to ensure that the glass will not fall for 10-15 minutes.
Features
Customized pillar height, frame length and travelling beam width
Japan SMC components
Customized safe working load
Both workable for the vacuum lifter or the hoist
Extension vacuum lifter arms for different configurations
Silica gel vacuum pads with temperature resistance -20 degree to 90 degree
Regular Specification (custom is available)
System | |||
Item | Parameters | TY-XDB-N-6000 | TY-XDB-N-6S |
 | System Height | 4380mm | 4850mm |
Beam Width | 6000mm | 6000mm | |
System Length | 6000mm | 12000mm | |
Driven Theory | Manual | Manual | |
Loading Capacity | 700kg(s) | 700kg(s) | |
 | Vacuum Lifter | 4-pads/6-pads | 4-pads/6-pads |
Vertical Lifting Distance | 1200mm | 1200mm | |
Loading Capacity | 350/450 kg(s) | 350/450 kg(s) | |
Tilting & Rotation | 90° | 90° | |
Loading Pictures
SGS Checking & Certifications
Customers' Feedback
