Customer at a Glance
A leading U.S. glass processor required a customized storage solution for large-format glass that could fit its existing warehouse layout and meet its specific structural requirements.
Rather than adapting its operation to a standard rack, the customer provided its own technical drawing and specifications. TOYOCC reviewed the requirements and manufactured a complete made-to-drawing AL Frame Glass Storage Rack solution.
Project Highlights
Item | Detail |
|---|
Customer | Leading U.S. glass processor |
Industry | Flat glass processing & distribution |
Application | Large-format glass storage |
Storage Type | Single-sided |
Solution | Customized AL Frame Glass Storage Rack |
Quantity | 8 sets |
Design | Manufactured according to customer's drawing |
Frame Angle | 96° A-frame |
Main Structure | No. 20a I-beam, Q235B steel |
Manufacturing | Industrial CO₂ MIG welding |
Surface Treatment | Electrostatic powder coating |
The Challenge
Large-format glass requires a storage structure that provides stable support while protecting glass edges and surfaces during daily handling.
For this project, the customer needed a solution that could be built around its existing requirements rather than selected from a standard product range.
The key requirements included:
Storage dimensions matched to the customer's glass and warehouse layout
Stable support for large-format glass sheets
Heavy-duty structural construction for industrial use
Single-sided storage configuration
Durable surface protection for the working environment
Precise fabrication according to the customer's technical drawing
Complete accessories for straightforward assembly
The main challenge was therefore not simply supplying a glass rack, but turning the customer's technical requirements into a production-ready storage system.
Our Solution

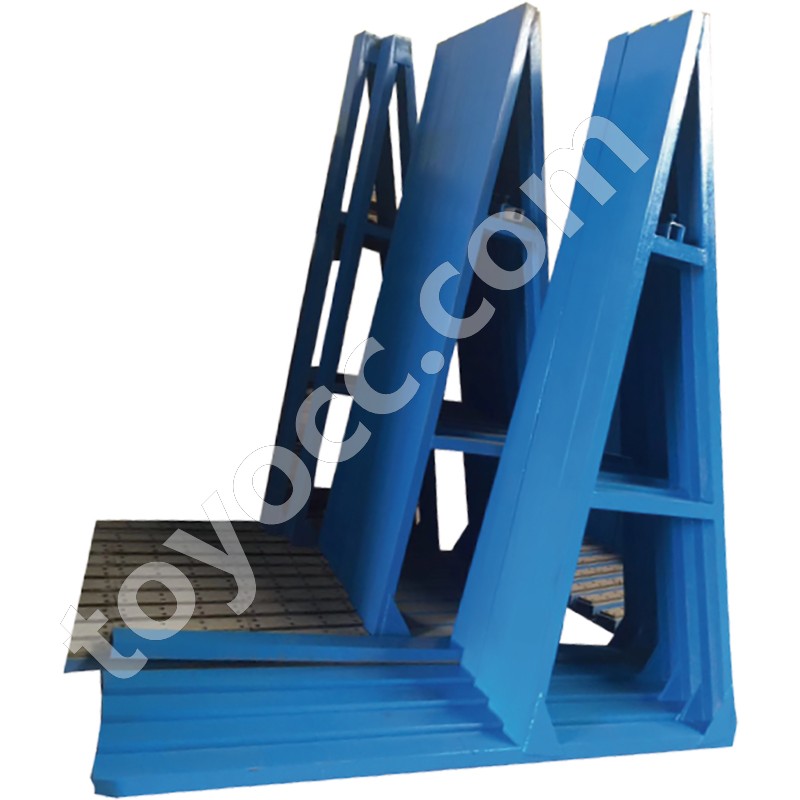

TOYOCC manufactured 8 customized AL Frame Glass Storage Rack sets according to the customer's drawing.
Each set consists of 3 AL racks and 2 connecting rods, forming a complete storage structure for large-format glass.
1. Made-to-Drawing Customization
The entire rack structure was manufactured according to the customer's technical drawing and required dimensions.
TOYOCC handled the engineering review, material preparation, fabrication and quality control to ensure the finished racks matched the specified design.
2. Heavy-Duty Structural Design
The main structure uses No. 20a I-beam sections, 100 × 200 × 10 mm, made from Q235B steel.
The heavy-duty steel structure provides the rigidity required for demanding glass storage applications.
3. Stable 96° A-Frame Configuration
The racks feature a 96° A-frame angle with a 1,929 mm usable depth.
This configuration provides stable support for large glass sheets while maintaining a practical storage arrangement for loading and retrieval.
4. Industrial Welding & Surface Protection
The rack structures are fabricated using industrial CO₂ MIG welding to provide strong and consistent joints.
An electrostatic powder coating in RAL 5015 blue provides a durable protective finish suitable for an industrial glass-processing environment.
5. Precision Manufacturing
Key manufacturing tolerances were controlled to ensure accurate assembly and consistent rack geometry:
Holes: ±0.1 mm
Angles: ±0.5°
Thickness: ±0.05 mm
Rubber protection strips, connecting rods and required fittings were supplied as part of the complete solution.
Key Specifications
Parameter | Specification |
|---|
Product | AL Frame Glass Storage Rack |
Quantity | 8 sets |
Overall Dimensions | 2,740 × 2,800 × 2,587 mm |
Main Section | No. 20a I-beam, 100 × 200 × 10 mm |
Material | Q235B steel |
Set Composition | 3 AL racks + 2 connecting rods |
Usable Depth | 1,929 mm |
Frame Angle | 96° A-frame |
Storage Mode | Single-sided |
Welding | Industrial CO₂ MIG |
Surface Finish | Electrostatic powder coating, RAL 5015 blue |
Hole Tolerance | ±0.1 mm |
Angle Tolerance | ±0.5° |
Thickness Tolerance | ±0.05 mm |
Accessories | Rubber protection strips & fittings |
Result & Customer Feedback
The complete rack system was manufactured according to the customer's technical drawing, packed into one container, and shipped from Qingdao to the United States.
The customer also shared on-site photos of the delivered racks.
The project demonstrated TOYOCC's ability to take a customer-specific drawing and turn it into a complete, production-ready glass storage solution, covering engineering review, precision fabrication, quality control, packing and international delivery.
The successful completion of the project also created a solid foundation for continued cooperation with the customer.
Why Work With TOYOCC
Not every glass processor can solve its storage requirements with a standard rack.
TOYOCC provides both standard glass storage equipment and fully customized solutions manufactured according to customer drawings.
Our team manages the complete process from drawing review and engineering to material preparation, fabrication, welding, surface treatment, quality inspection and export packing.
With 29 years of experience in the glass industry and experience serving 1,260+ customers worldwide, TOYOCC helps glass processors develop storage solutions around their actual glass sizes, facility requirements and working conditions.
