TY-XDB-3650-5000/TY-XDB-3650-6000
TOYOCC
| Quantity: | |
|---|---|
Product Description
Description
A jib-crane is a type of crane with a horizontal jib or boom, supporting a moveable hoist or sucker lifter, is fixed to a floor-mounted pillar, or to a wall, or to the I-steel which make the jib crane in three types, they are column type, wall type and I-steel type.
Cantilever crane has the advantages of simple structure, convenient manufacture, low cost, expedient operation and can used to some working procedure or special technical device, share the burden of the main lifting machinery in the whole production line.
It is widely used in factories mines product line, assembly line, especially in location need conveying goods partly, it with advantages of tight structure, delicate operation, low noise, safety and reliability, and in perfect shape.

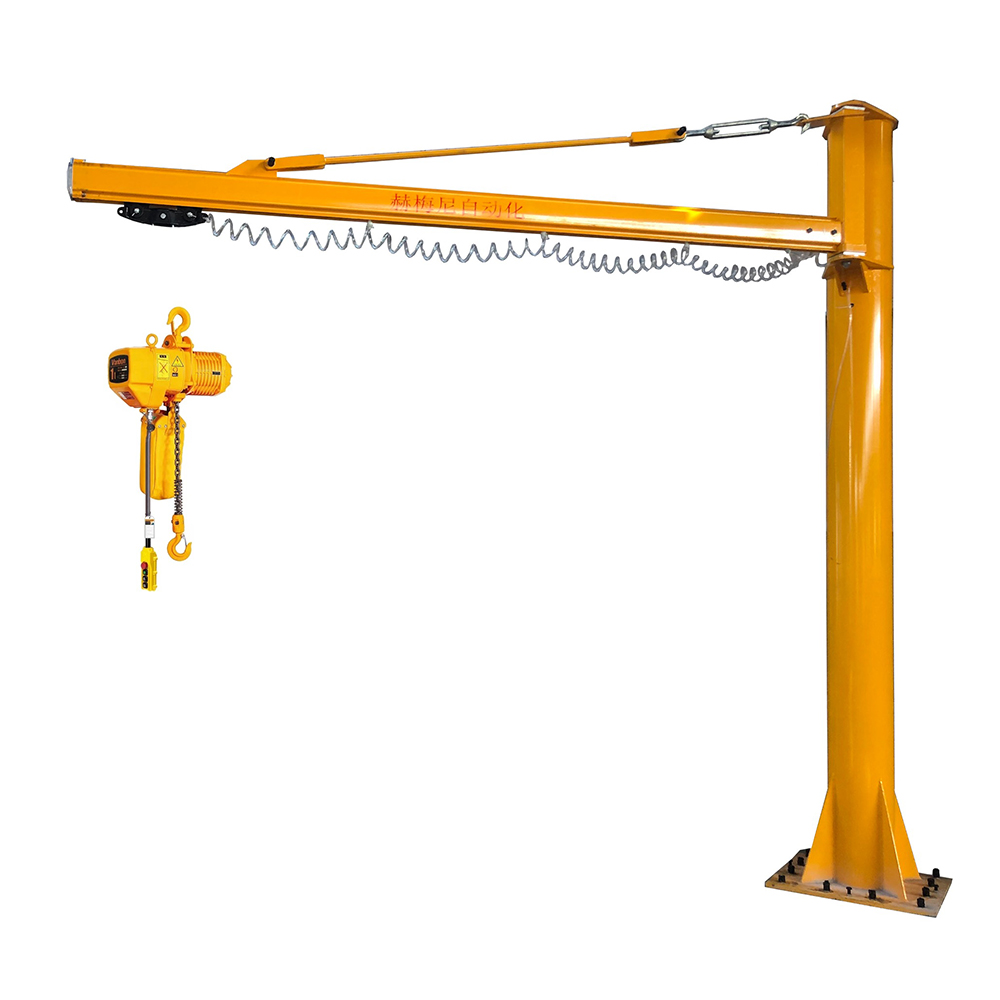

Column cantilever crane
Column cantilever crane doesn't need any other buildings except crane to fix, its column and arm support are separated parts. The column is set in the basic flange. Basic flange was installed and fixed on concrete by connection bolts. Because the column is fixed, it is named fixed column. The arm support connects to the column by using holders in top and bottom, so it can rotate 270 degree or 360 degree. Widely used indoor and outdoor or anywhere.

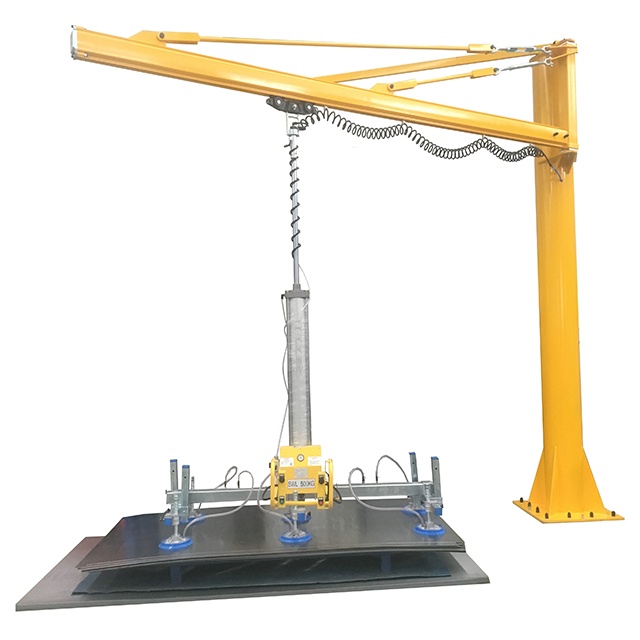

Column cantilever crane is comprised of column, art beam, swing mechanism and lifting mechanism. There are swing mechanism and connection flange of arm installing on column. Cantilever beam is made of sealed box structure; The hoist or the sucker lifter is installed on the I-beam steel, moving along the longitudinal direction of the beam, the rotating mechanism drives the cantilever beam to rotate by the gear transmission mechanism.
Features
Modular engineering design
Q345B high-strength steel beam, tensile strength ≥470MPa
Column embedment depth 1.2m-2.5m (suitable for different ground conditions)
Optional electric/manual rotation mode (IP54 protection class)
Intelligent security configuration
Dual overload protection (mechanical + electronic sensor)
Rotation limit alarm system (±5° accuracy)
CE/EMC compliant electrical components

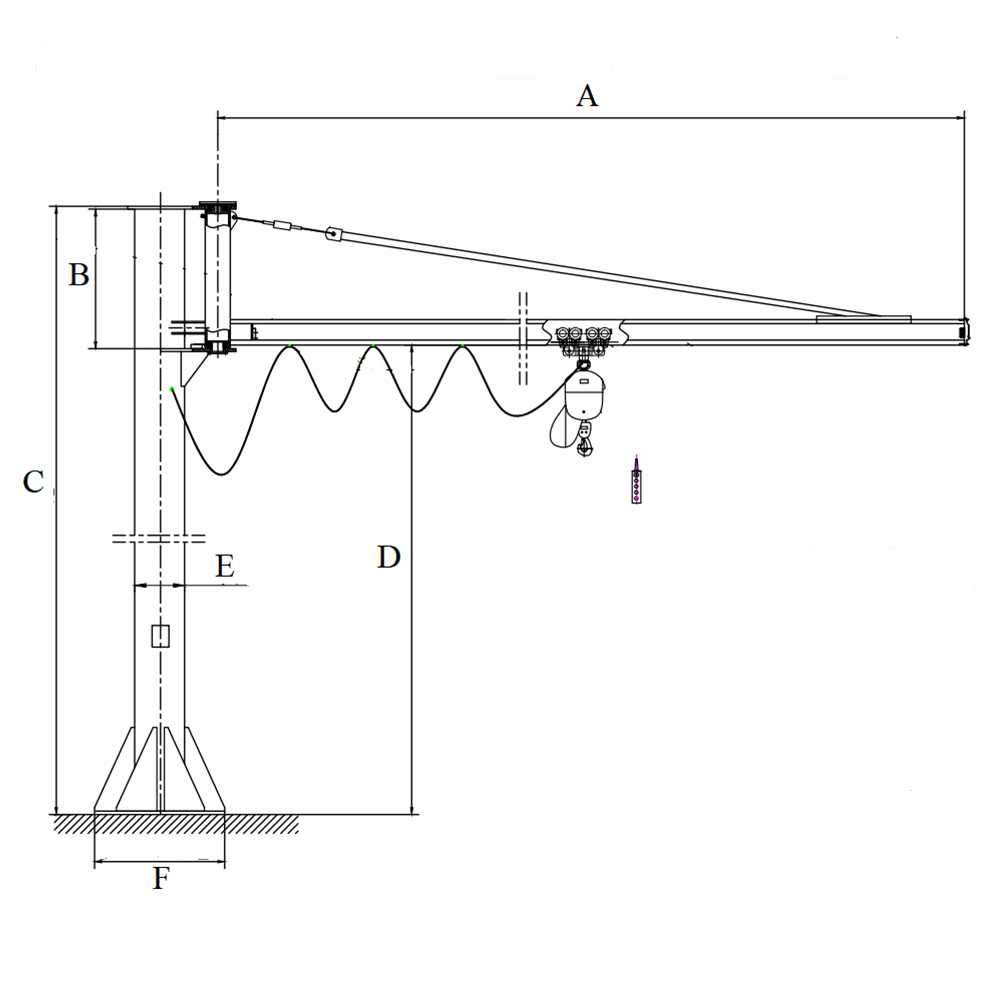

Appearance Drawing
Specification
Jib Crane System | |||
Item | Technical Parameters | TY-XDB-3650-5000 | TY-XDB-3650-6000 |
| Column Height | 4350mm | 4350mm |
Arm Length | 5000mm | 6000mm | |
Net Weight | 235kg(s) | 255kg(s) | |
Work Range | 270°or 360° | 270°or 360° | |
Driven Theory | Manual/Electrical | Manual/Electrical | |
Loading Capacity | 500kg(s) | 500kg(s) | |
| Vacuum Lifter | 4-pads/6-pads | 4-pads/6-pads |
Vertical Up Distance | 1200mm | 1200mm | |
Loading Capacity | 350/450 kg(s) | 350/450 kg(s) | |
Tilting & Rotation | 90° | 90° | |

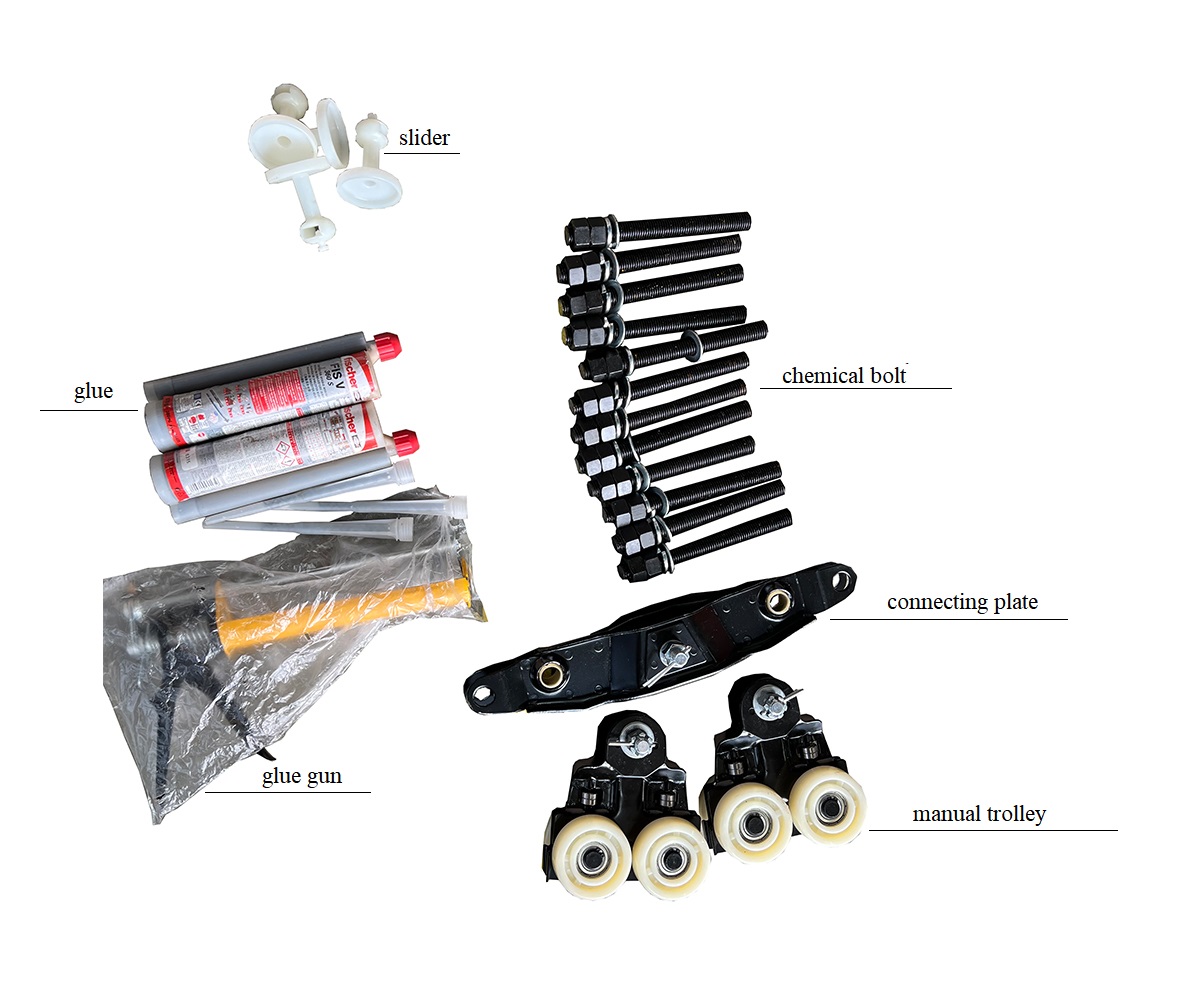

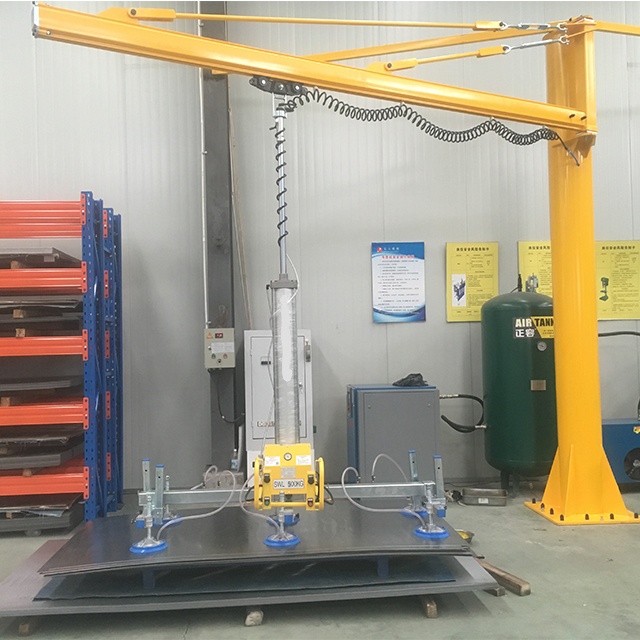

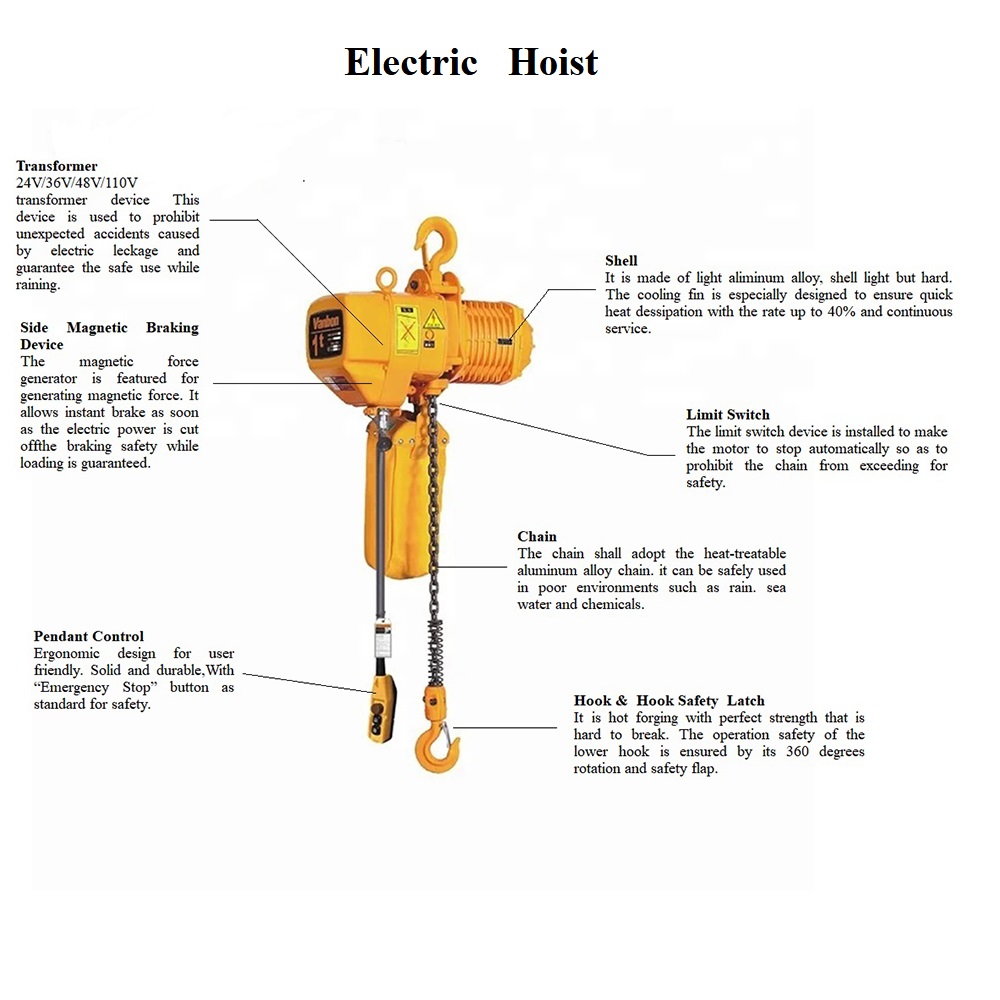

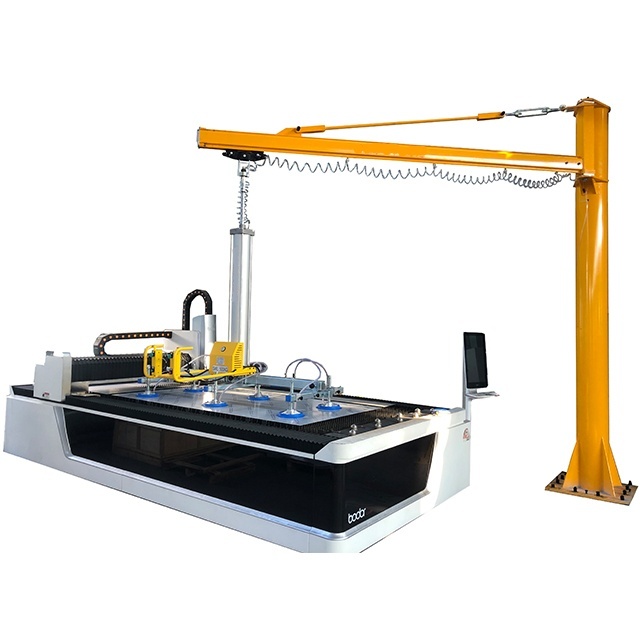

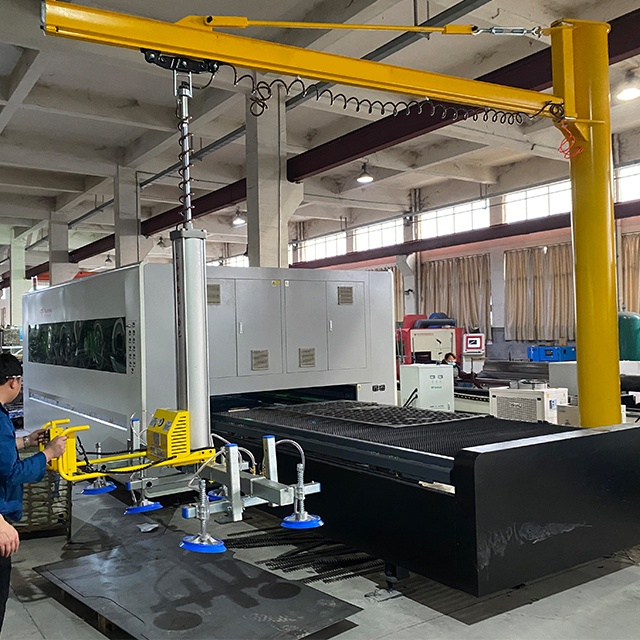

Applications

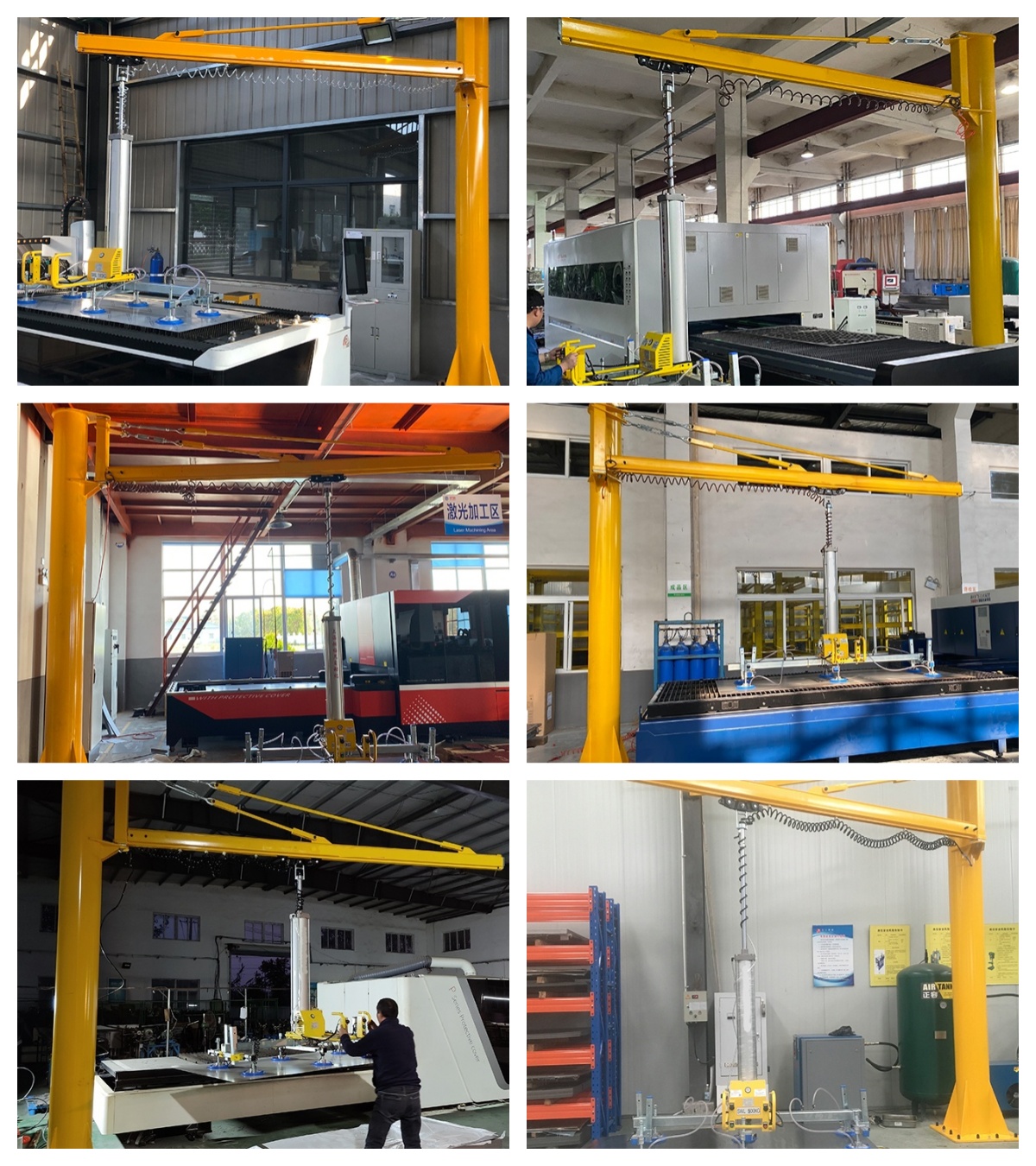

Loading Pictures
CE & SGS Certifications
