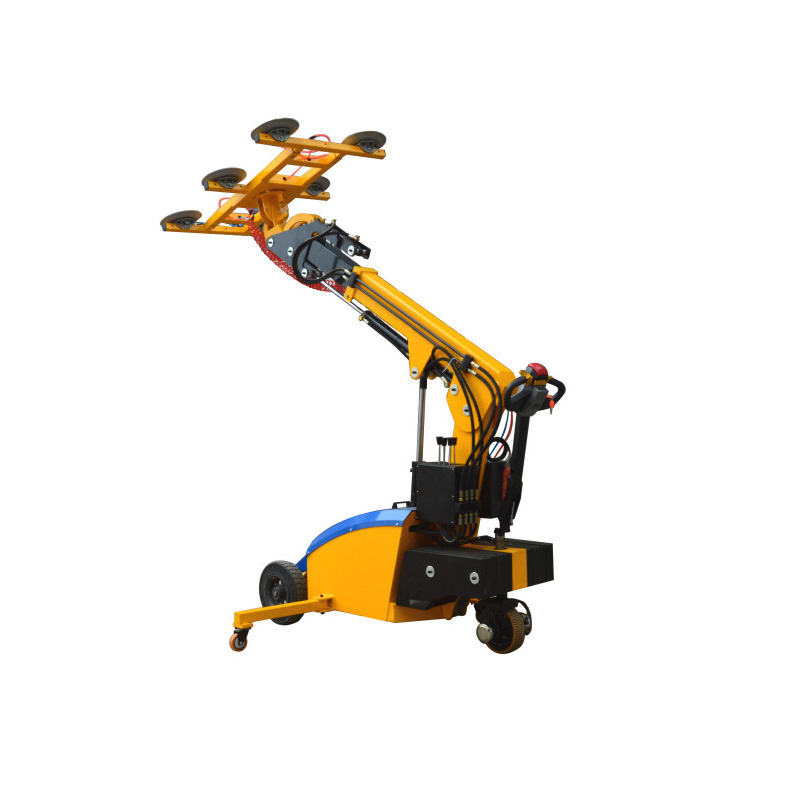

Glazing Robot for Jumbo Glass Sheet Lifting And Window Installation

Rated Load Capacity:350kgs - 800kgs
Manual Rotating: 360 degrees
Lifting Height: 3500mm
Manipulation: Walkie Type
Battery:2*12/80V/A
Charger: 24/12V/A
Overall Width; 810mm-850mm
Overall Length: 2660mm- 3045mm
Driving Wheel Dimension: 250*80mm- 450*200mm
Pads Diameter: 300mm
Glass Size: 3660*2440mm
  • glazing robot
  • Toyocc
Quantity:

Product Description

Glass Robot/ Glass Manipulator for Curtain Wall Installing

Glass robot

One of our top seller products glass robot, which is combining the advantages of a Crane Truck and Vacuum Lifter, providing the economy and efficiency of the robot. This equipment with following features:

  1. Low noise and no pollution

  2. Comfortable operation and convenient charge

  3. Legerity turning, flexible, reliable operation

  4. Big wheels design, easy for outdoor use.

  5. Dual vacuum system design for safety

  6. Adopt optimum design, have a solid frame and wide vision


u Specification

  1. Maximum load: 600kg while the second ram back to end, 300kg while the second ram full extended

  2. Maximum lifting height: 3500mm from the ground to the center of the suction frame

  3. Moving: automatically moving, speed control by manual roller sensibly

  4. Lifting control: with a hydraulic ram, controlled by manual mechanism valve sensibly

  5. Extension control: with a hydraulic ram, controlled by manual mechanism valve sensibly, maximum extension distance 650mm, maximum extension distance from the front wheel to the suction pads was 1350mm( the ram in parallel with the ground)

  6. Tilting control: with hydraulic ram, controlled by manual mechanism valve sensibly, the maximum tilting degree near to 130 degree

  7. Rotation control: By manual, with a spring lock for positioning, the maximum rotation was 270 degree

  8. Side moving: with a hydraulic ram, controlled by manual mechanism valve sensibly, 75mm for both sides, totally 150mm

  9. Side turning: By manual, with a spring lock for positioning, the maximum rotation was 180 degree, 90 degrees for both sides

  10. Power: DC 24V

  11. Driven unit: the rear wheels driven with DC motor worked as driven unit as well as for turning

  12. Wheels: 400mm*150mm *2 solid tire in front, single wheel of 300mm in rear

  13. Driven unit power: DC 24V brush-less motor, .1.2KW

  14. Hydraulic station power:1.2KW

  15. Battery: 12V,120A*2

  16. Maximum working period: about 20 Hours

  17. Charging power:220V

  18. Charging time: about 8 hours

  19. Vacuum system: Dual system

  20. Suction frame sized of 1800mm(L) and 800mm(W)


u Technicial Chart

Glazing   Robot

Glass Installation Robot

TA-300

TA-350

TA-400

TA-500

TA-600

TA-800

Rated Load
  Capacity

300KG

350KG

400KG

500KG

600KG

800KG

Manual Rotating

360°

360°

360°

360°

360°

360°

Lifting Height

3500mm

3500mm

3500mm

3500mm

3500mm

3500mm

Manipulation

Walkle Type

Walkle Type

Walkle Type

Walkle Type

Walkle Type

Walkle Type

Battery

2*12/80V/A

2*12/90V/A

2*12/100V/A

2*12/120V/A

2*12/120V/A

2*12/210V/A

Charger

24/12V/A

24/12V/A

24/15V/A

24/18V/A

24/18V/A

AC110-220V

Drive motor

24/1200V/W

24/1200V/W

24/1200V/W

24/1200V/W

24/1200V/W

AC 24V/2.2KW

Lift motor

24/2000V/W

24/2000V/W

24/2000V/W

24/2000V/W

24/2000V/W

24/2200V/W

Overall Width

810mm

810mm

810mm

810mm

810mm

850mm

Overall Length

2660mm

2660mm

2660mm

2800mm

2800mm

3045mm

Driving Wheel
  Dimension

250*80mm

250*80mm

250*80mm

300*100mm

300*100mm

450*200mm

Pads Diameter

300mm

300mm

300mm

300mm

300mm

400mm

Glass Size

3660*2440mm

3660*2440mm

3660*2440mm

3660*2440mm

3660*2440mm

3660*2440mm


u Detailed info


Item


Item

glazing robot control section

1 Reversing button

Charge Volume Display

Charge Volume Display

2 Speed regulator

3 Horn button

4 Lift button

5 Fall button

6 Fast Driving Mode

7 Slow Driving Mode

Remote Control

Remote Control

Glazing robot suction cups

Suction Cup

Glazing robot control panel

Control Panel

Glazing robot control handles

Control Handle



u Loading & Package

Glazing robot loading and package
