Column Cantilever Crane/Jib Crane Glass Vacuum Lifter in Flag Bridge Shape

Pillar-mounted type jib crane is convenient material handling solutions. It can be installed and used under the overhead crane, or in an open area to cover multiple stations simultaneously; or installed in a machine or assembly station to complete the stage operation with other type crane systems. Jib Crane system includes Pillar-mounted type jib crane, Wall-mounted type jib crane, and Mobile type jib crane. All types can be operated by electricity and manual.
  • TY-XDB-3650-5000/TY-XDB-3650-6000

  • TOYOCC

Availability:
Quantity:

Product Description

Description



A jib-crane is a type of crane with a horizontal jib or boom, supporting a moveable hoist or sucker lifter, is fixed to a floor-mounted pillar, or to a wall, or to the I-steel which make the jib crane in three types, they are column type, wall type and I-steel type.



Cantilever crane has the advantages of simple structure, convenient manufacture, low cost, expedient operation and can used to some working procedure or special technical device, share the burden of the main lifting machinery in the whole production line.


It is widely used in factories mines product line, assembly line, especially in location need conveying goods partly, it with advantages of tight structure, delicate operation, low noise, safety and reliability, and in perfect shape.

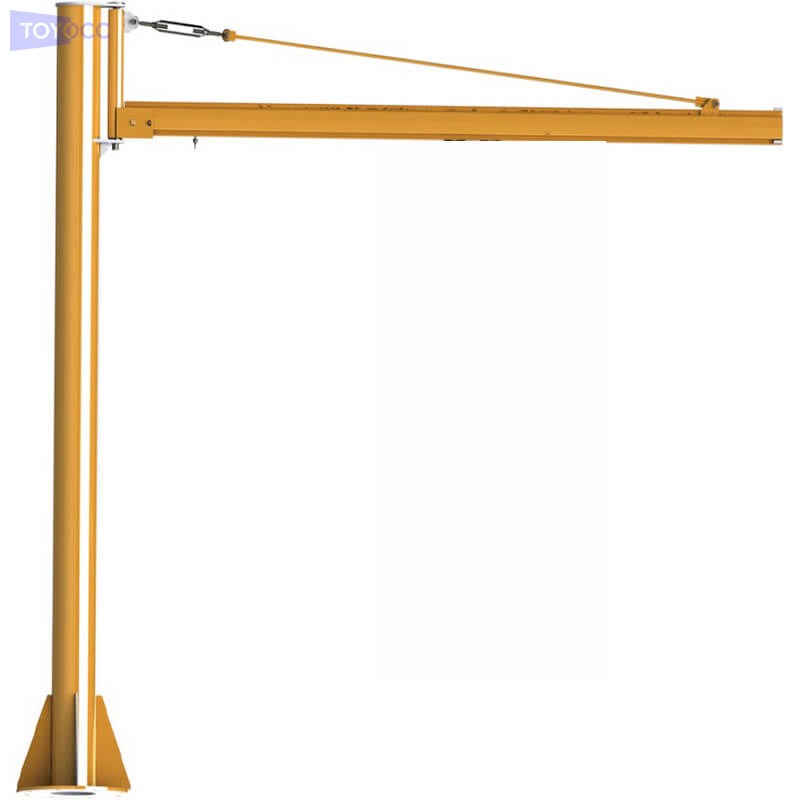

  • Column cantilever crane

Column cantilever crane doesn't need any other buildings except crane to fix, its column and arm support are separated parts. The column is set in the basic flange. Basic flange was installed and fixed on concrete by connection bolts. Because the column is fixed, it is named fixed column. The arm support connects to the column by using holders in top and bottom, so it can rotate 270 degree or 360 degree. Widely used indoor and outdoor or anywhere.



Column cantilever crane is comprised of column, art beam, swing mechanism and lifting mechanism. There are swing mechanism and connection flange of arm installing on column. Cantilever beam is made of sealed box structure; The hoist or the sucker lifter is installed on the I-beam steel, moving along the longitudinal direction of the beam, the rotating mechanism drives the cantilever beam to rotate by the gear transmission mechanism.



Features


  • Widely used indoor and outdoor

  • Column type, wall type and I-steel type, various types to select

  • Customized column height, arm length and working load

  • Manual operation with 270-degree rotation work range

  • Remote control with 360-degree rotation work range



Appearance Drawing


Jib Crane Drawing


Specification


Jib Crane System

Item

Technical Parameters

TY-XDB-3650-5000

TY-XDB-3650-6000

Vacuum Lilfter

Column Height

4350mm

4350mm

Arm Length

5000mm

6000mm

Net Weight

235kg(s)

255kg(s)

Work Range

270°or 360°

270°or 360°

Driven Theory

Manual/Electrical

Manual/Electrical

Loading Capacity

500kg(s)

500kg(s)





Vacuum Lilfter

Vacuum Lifter

4-pads/6-pads

4-pads/6-pads

Vertical Up Distance

1200mm

1200mm

Loading Capacity

350/450 kg(s)

350/450 kg(s)

Tilting &   Rotation

90°

90°


Applications

Cantilever


SGS Checking

SGS Inspection


Loading Pictures

Cantilever Loading


CE & SGS Certifications

CE SGS


Customers' Feedback

Customers Feedback
