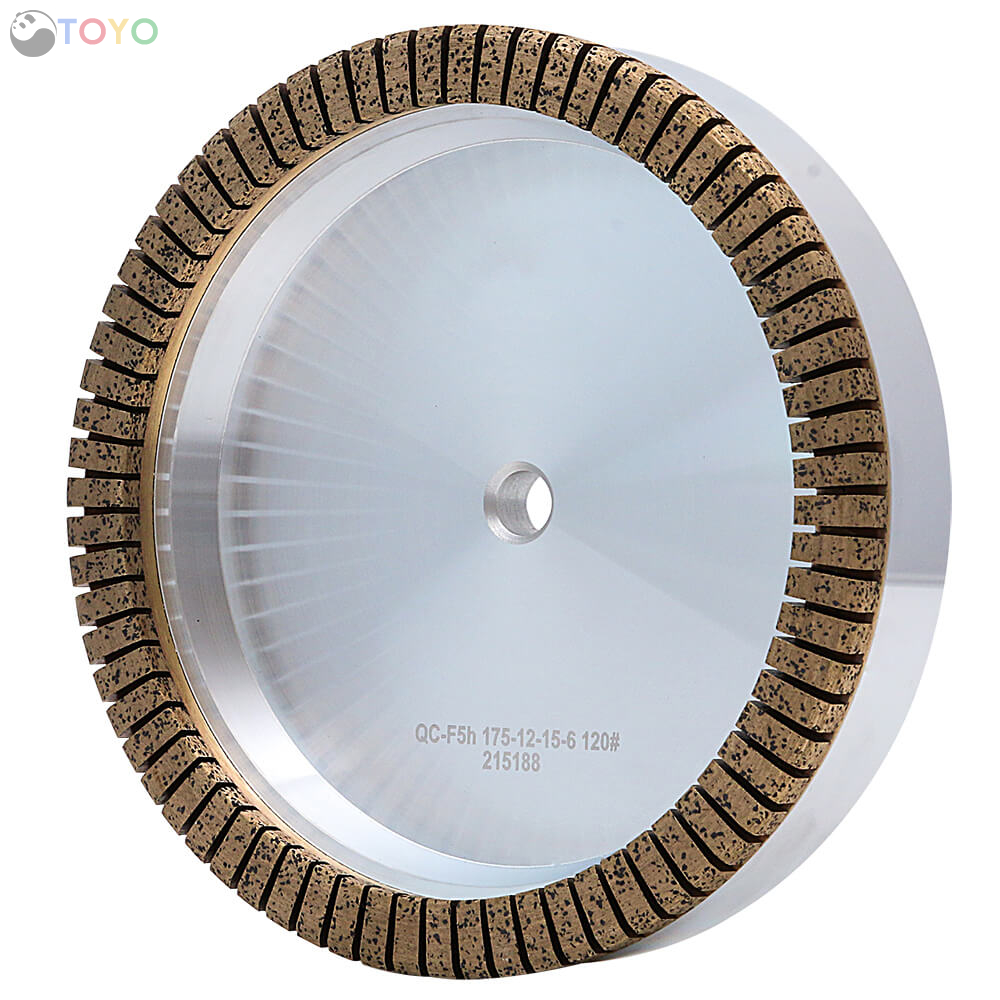

Precision Diamond Glass Grinding wheels – High Speed Gears

1. High Speed Glass Machine Process
2. Good sharpness
3. High grinding efficiency
4. High wear resistance and low abrasive consumption
5. Customized
Quantity:

Product Description


Description


Widely use for the glass thickness over 5 mm and suitable for the high-speed glass machine process.



The working layer of the toothed grinding wheel can provide space for drainage and chip removal during the working process, reduce the temperature of the working surface, and prevent the glass from burning due to excessive temperature.



The diamond wheel has good sharpness, high grinding efficiency, and no chipping. The grinding wheel has high wear resistance and low abrasive consumption. It can maintain long-term sharpness to ensure fast machine speed, stronger stability, and perfect glass products (usually used as #1 or #2 position of the machine).



·     Appliance: Widely used as #1 or #2 grinding wheel of the glass straight edge grinding


·     Material: Emery, metal powder binder, aluminum alloy matrix


·     Craftsmanship: Sintering




Specification


Diameter

Width
  Sand Layer

Height
  Sand Layer

Inner   Diameter

Mesh

150

15

12

12

80#,   100#, 120#

150

15

12

22

80#,   100#, 120#

150

15

12

50

80#,   100#, 120#

175

15

10

12

80#,   100#

175

15

10

22

80#,   100#

175

15

10

50

80#,   100#

175

15

6

12

80#-180#

175

15

6

22

80#-180#

175

15

6

50

80#-180#

175

12

6

12

140#,   180#

175

12

6

22

140#,   180#

175

12

6

50

140#,   180#

Customized   wheels are available


Pictures


High Speed Gears (1)




High Speed Gears (5)
