Russia | Glass Processing | TY-QFX350-6S Vacuum Glass Lifter
01 — Customer Requirement
The customer was looking for a reliable vacuum lifting solution for daily glass handling, with a lifting capacity of up to 350 kg.
The equipment needed to provide not only secure vacuum lifting, but also flexible positioning during operation.
02 — TOYOCC Solution

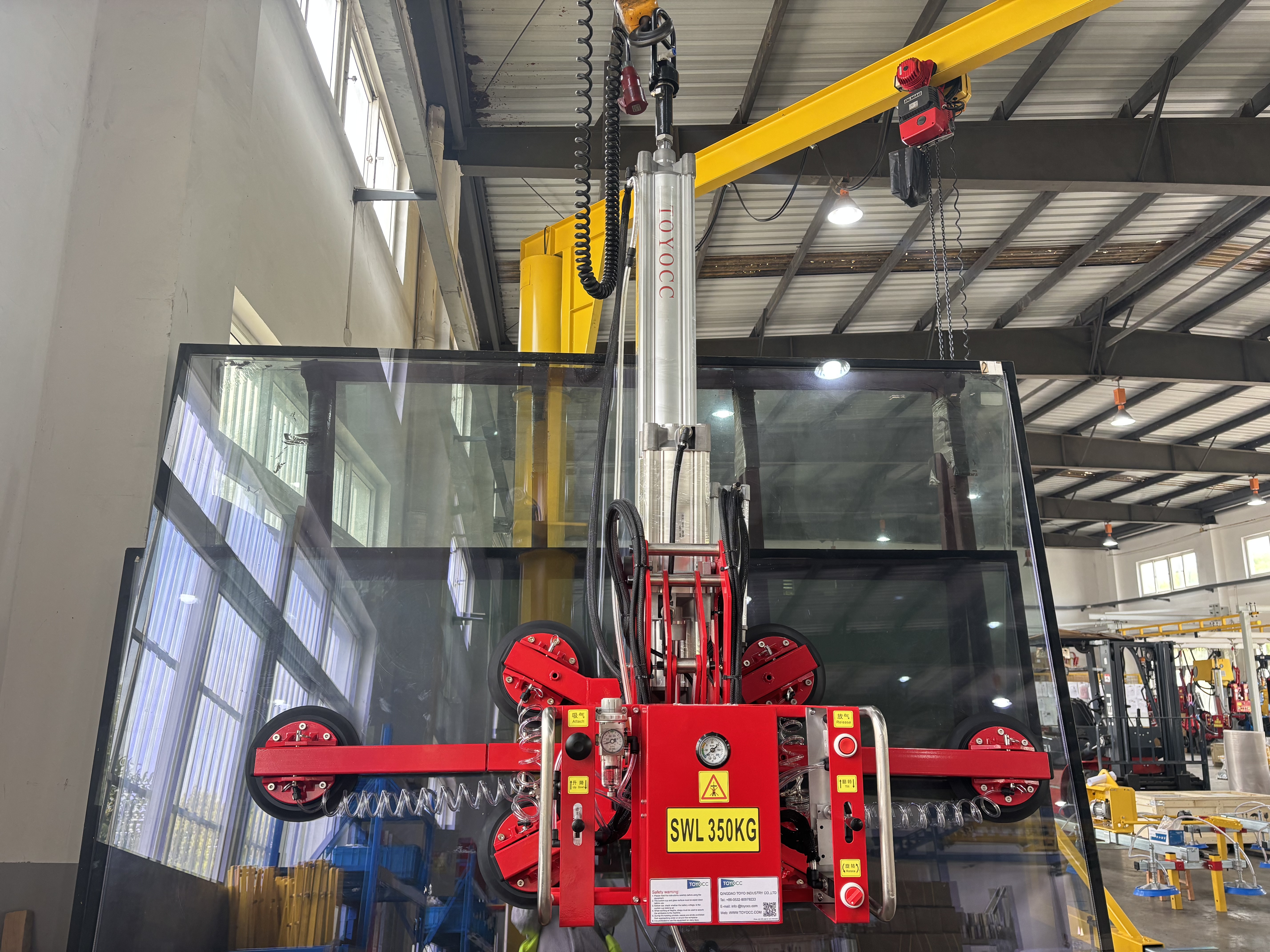

Based on the application requirements, TOYOCC supplied the TY-QFX350-6S Vacuum Glass Lifter.
The system uses 6 × Ø250 mm vacuum suction cups and provides:
350 kg
Maximum Load Capacity
90°
Pneumatic Tilting
90°
Pneumatic Rotation
<2 sec
Vacuum Suction Time
-850 mbar
Maximum Vacuum
03 — Designed for Safe Handling
Safety was one of the key considerations in the equipment design.
The TY-QFX350-6S features a 4:1 structural safety factor and a vacuum safety level designed above the standard operating requirement.
The vacuum system also includes a vacuum check valve, pressure gauge, vacuum generator and alarm system to provide stable and reliable operation.
04 — Reliable Components
The equipment integrates components from internationally recognized pneumatic brands, including:
SMC
Cylinders & pneumatic components
PISCO
Vacuum generator
HAFNER
Air control valves
This configuration helps ensure reliable performance during continuous glass handling operations.
05 — Customer Feedback
After receiving and using the equipment, the Russian customer gave positive feedback on the overall performance of the TY-QFX350-6S Vacuum Glass Lifter.
The customer was particularly satisfied with the stable vacuum suction, easy operation, and flexible 90° tilting and 90° rotation functions.
The equipment made glass handling more convenient and provided a reliable solution for the customer's daily glass lifting and positioning needs.
The customer expressed satisfaction with the equipment quality, operation, and overall performance.
06 — Quality Inspection Before Shipment
Before delivery, every vacuum lifter undergoes factory inspection, including:
Vacuum suction test
Vacuum pressure holding test
Alarm test
Control system inspection
Component inspection
Appearance and damage inspection
This ensures the equipment is ready for operation before shipment.
Application
TY-QFX350-6S Vacuum Glass Lifter
Designed for glass processing and handling applications where safe lifting, positioning and rotation are required.
Maximum Capacity: 350 kg
6 Suction Cups
90° Flip + 90° Rotation
Manual Lever Control
2-Year Warranty
TOYOCC — Glass Handling Solutions
From individual vacuum lifters to complete glass handling solutions, TOYOCC provides equipment designed around the actual working requirements of glass processors.
