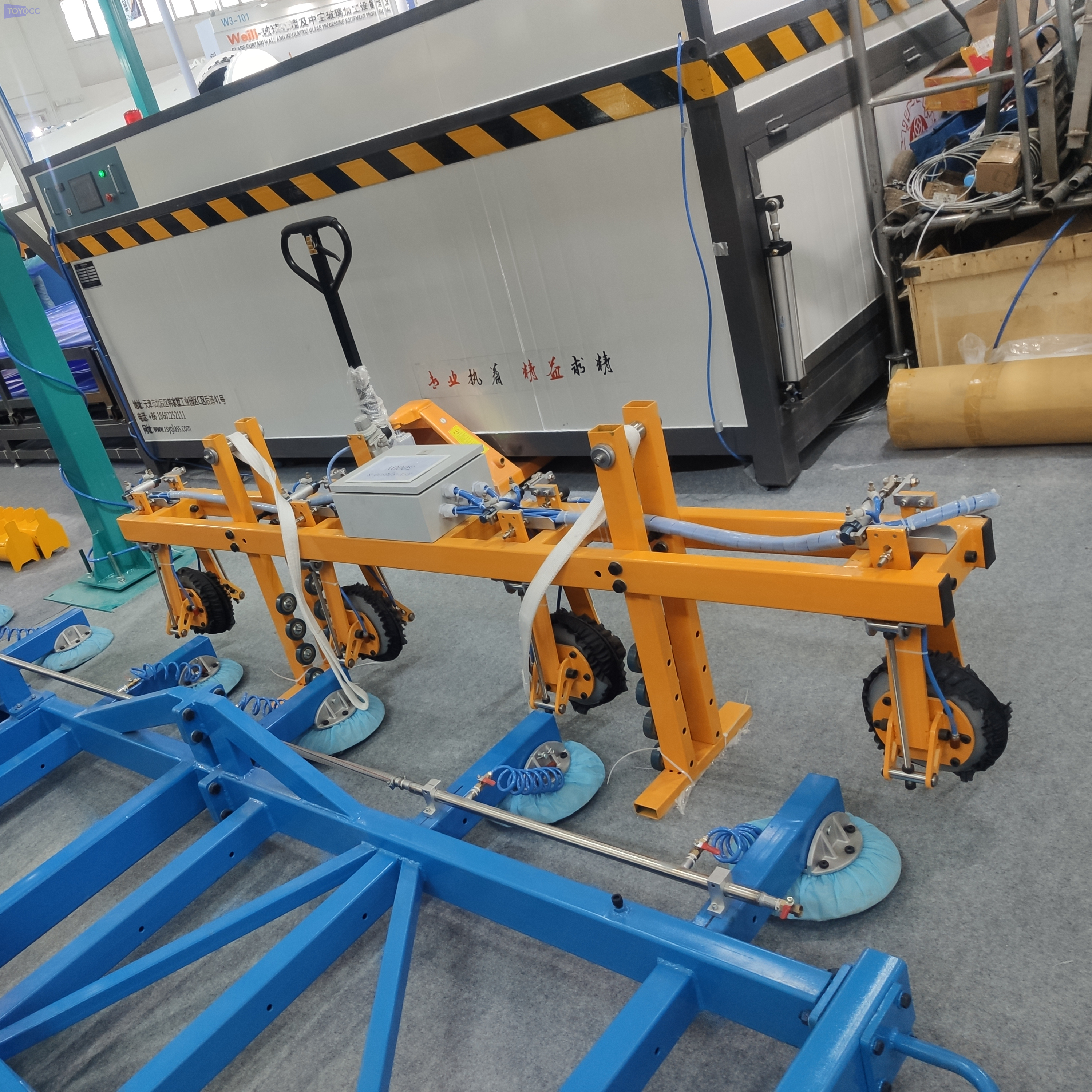

Super Large Hollow Double Clamp Sucker

1.Heavy and compact, easier operation with remote control 2.Battery power, no cable connection needed 3.8 pcs of vacuum suction cups, working load up to 800 kgs 4.Electrical l clamp function 5.Digital vacuum pressure display and LCD battery display 6.Sealed cover for components protection, suited for outdoor use 7.Designed for big-sized glass, mainly suitable for hollow glass production and glass movement
Availability:
Quantity:

Product Description

clamp sucker

u Description

Designed for big-sized glass, mainly suitable for hollow glass production and glass movement, it has clamp function; the machine has power-off protection and alarm function for lack of vacuum. Make use safely, meanwhile could add remote device, suitable for the glass in top outdoor screen.



u Features

l  Heavy and compact, easier operation with remote control

l  Battery power, no cable connection needed

l  8 pcs of vacuum suction cups, working load up to 800kgs

l  Electrical l clamp function

l  Digital vacuum pressure display and LCD battery display

l  Sealed cover for components protection, suited for outdoor use

l  Designed for big-sized glass, mainly suitable for hollow glass production and glass movement





u Appearance Diagram

双夹电动吸盘(8盘)

u Specification

Super Large Hollow Double Clamp Sucker

Model
  Data

Super Large Hollow Double Clamp Sucker

Use Range

Designed for big-sized glass, mainly suitable for   hollow glass production and glass movement

Power

DC48V  AC380V optional

Battery working life

15-20 hrs

Working Weight

800 kgs

Function

Clamping

Control

Remote

Function

Voltmeter, power-off protection for 15 minutes without   falling off; barometer, insufficient pressure alarm function

Vacuum System

Vacuum Pump

Air Power

Electric vacuum pump compressed air 6-9 Pa

Cup Qty

8

Lifting Method

Plug-in to the lifting tool


Glass-Lifter-Clamp-for-Insulated-Glass-Curtain-Wall-Installation (1)


Glass-Lifter-Clamp-for-Insulated-Glass-Curtain-Wall-Installation (2)


Glass-Lifter-Clamp-for-Insulated-Glass-Curtain-Wall-Installation (4)
