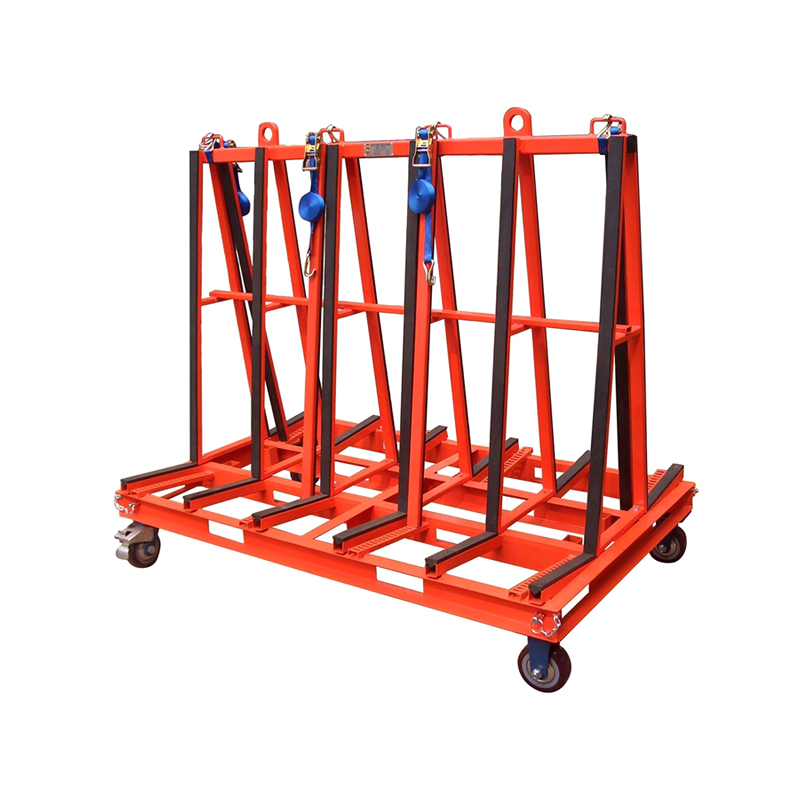

A Frame Glass Rack Trolley

1. Light and compact, easier use 2. Storage and transportation all in one 3. High quality rubber pads with built-in steel plates 4. Customized size and design are available 5. Sold and used in one 6. Racks can be stacked up when shipping to save freight cost 7. Square steel tubing: 60*60*3mm 8. Electrostatic spraying for long lasting surface 9. Step 220mm each side 10.Two universal wheels have brakes to fix
  • OSA9679

  • Toyocc

Availability:
Quantity:

Product Description

A Frame Glass Trolley

   a FRAME GLASS TROLLEY )

u Description

Sturdy structure, designed to eliminate any risk of slabs tipping over.

Slabs are placed on a special rubber profiles and secured with four ratchet securing bars. Contains an extra storage section in the center that is ideal for storing tools.

Frame features two eyelets which can be used to pick up the frame with an overhead crane. Built in brackets on all sides for forklift transport.

Four 2T and 5T heavy-duty removable casters included.

reaches 220mm, suitable for big truck transport.



u Features

ü  Light and compact, easier use

ü  Storage and transportation all in one

ü  High quality rubber pads with built-in steel plates

ü  Customized size and design are available

ü  Sold and used in one

ü  Racks can be stacked up when shipping to save freight cost

ü  Square steel tubing: 60*60*3mm

ü  Electrostatic spraying for long lasting surface

ü  Step 220mm each side

ü Two universal wheels have brakes to fix

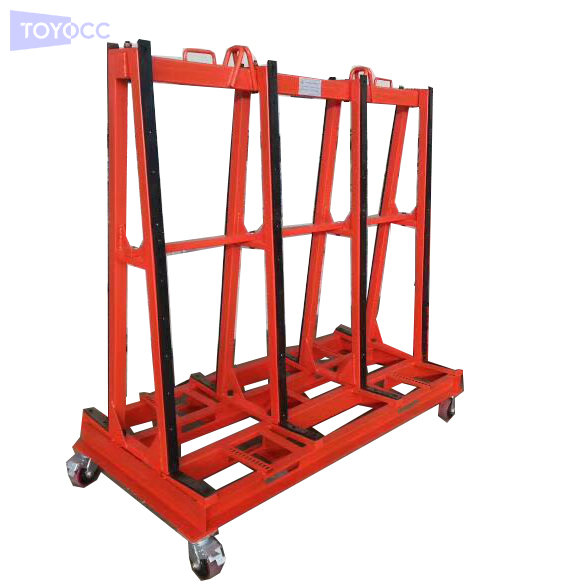

u  Appearance Diagram

A frame Glass Trolley


6

A frame rack


u Specification

A frame glass trolley

Specification (mm)

Length*Height*Width

Storing Thickness (mm)

Working Loading

Self-weight (kgs)

1800*1600*900

220 each side

2T

240

1800*1600*900

220 each side

5T

240

Note:

Customized size and design are available.

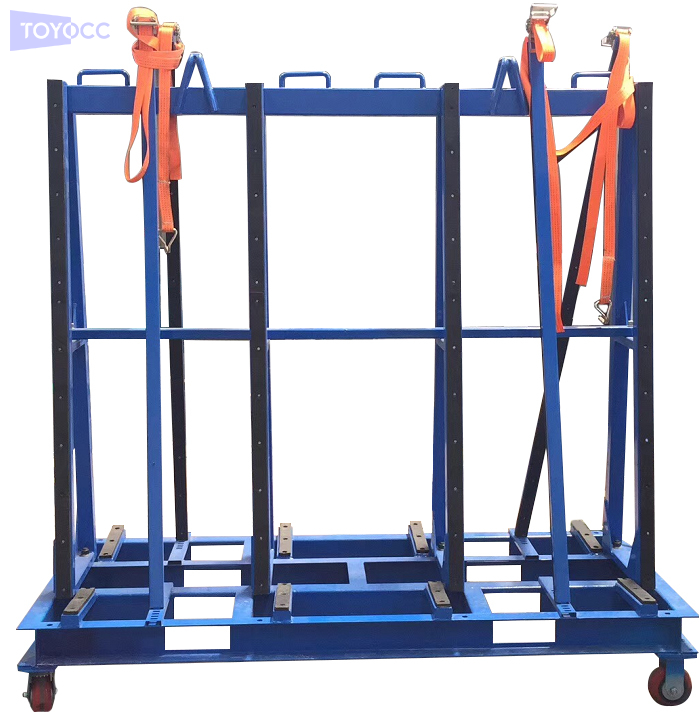

u  Application

A frame Trolley


2


3
