Product Description

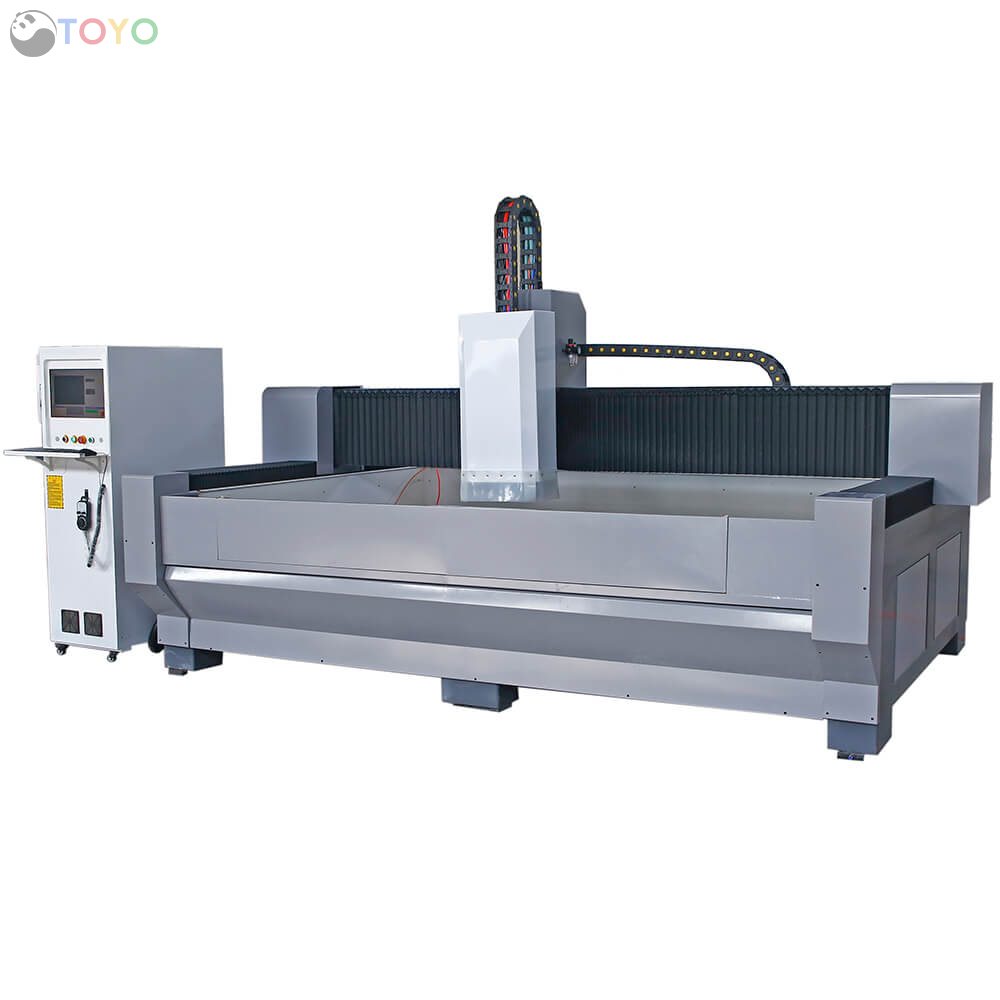

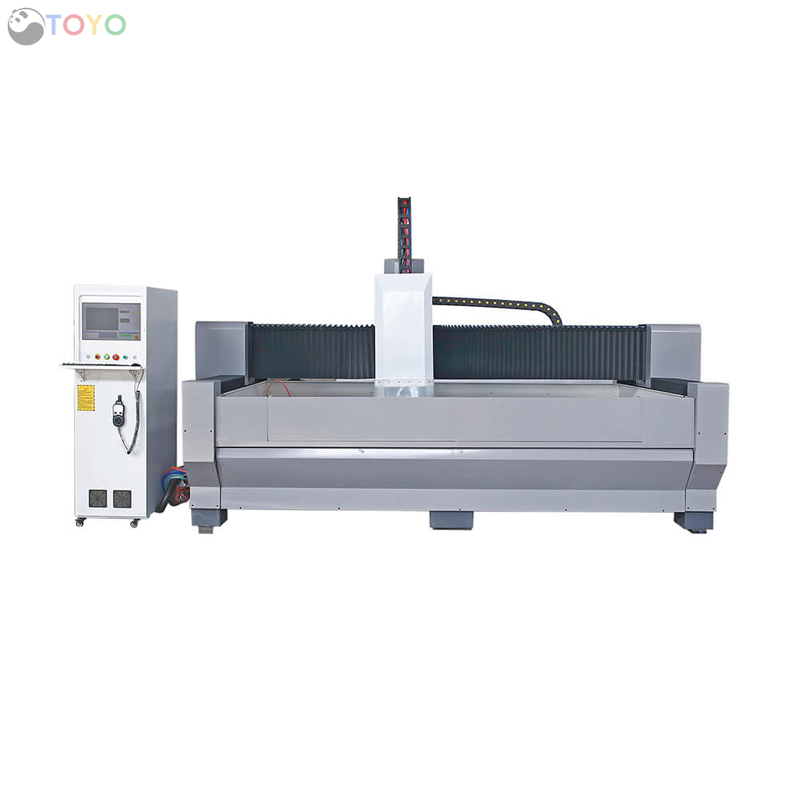

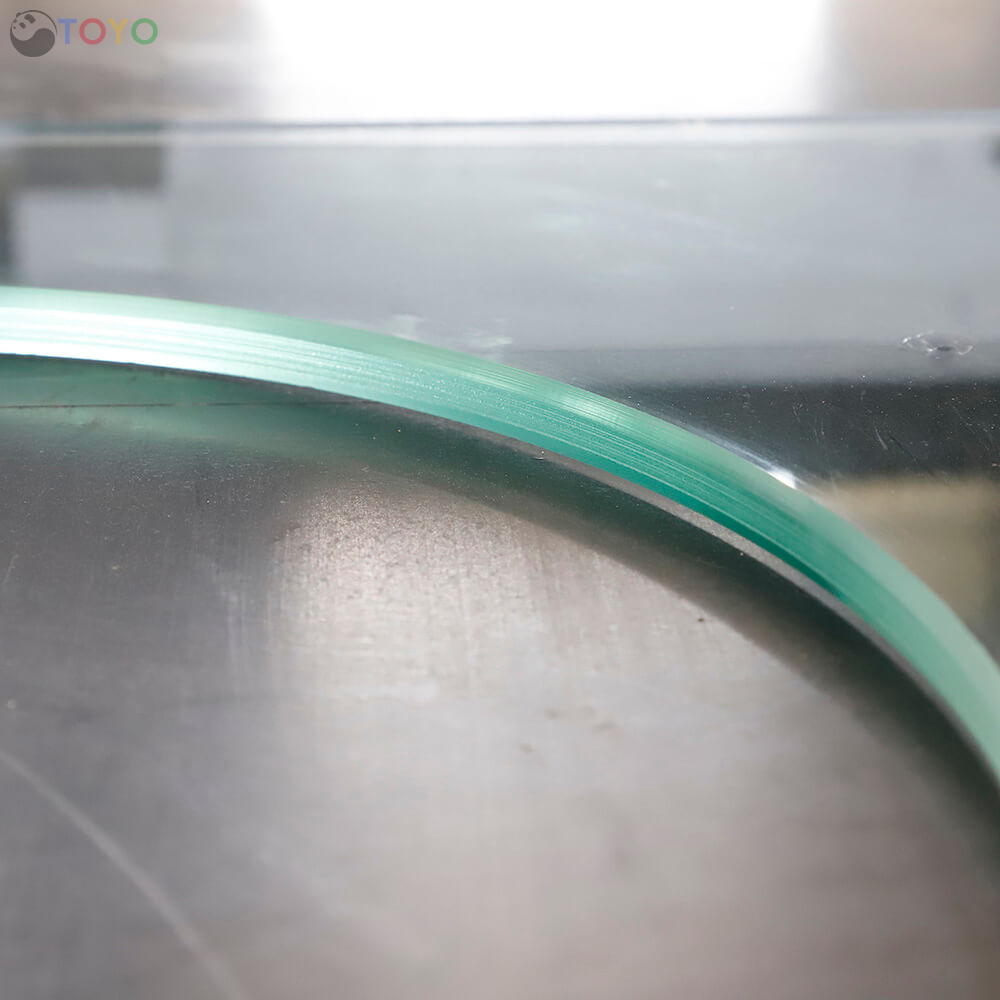

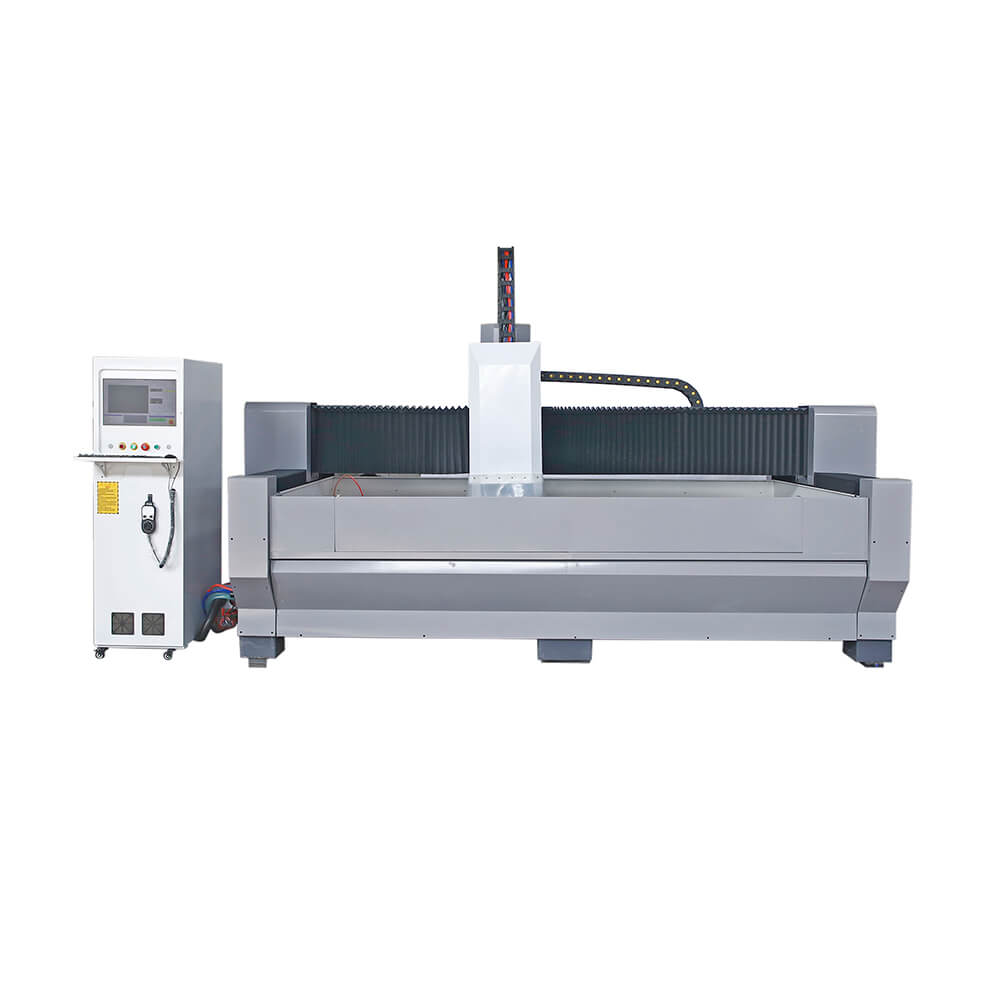

The CNC machine has one part function of waterjet machine, can cut any shape what you want. It can drill the holes like drilling machine. It can process the glass edges with grinding and polishing for all different shape of glass. The same time, it can also carve the drawings on glass surface like engraving machine. With integrative function drilling cutting milling grinding polishing and engraving,once time finished, no need to change the cutter, which effectively avoids glass scratches and dimensional errors caused by repeated positioning.

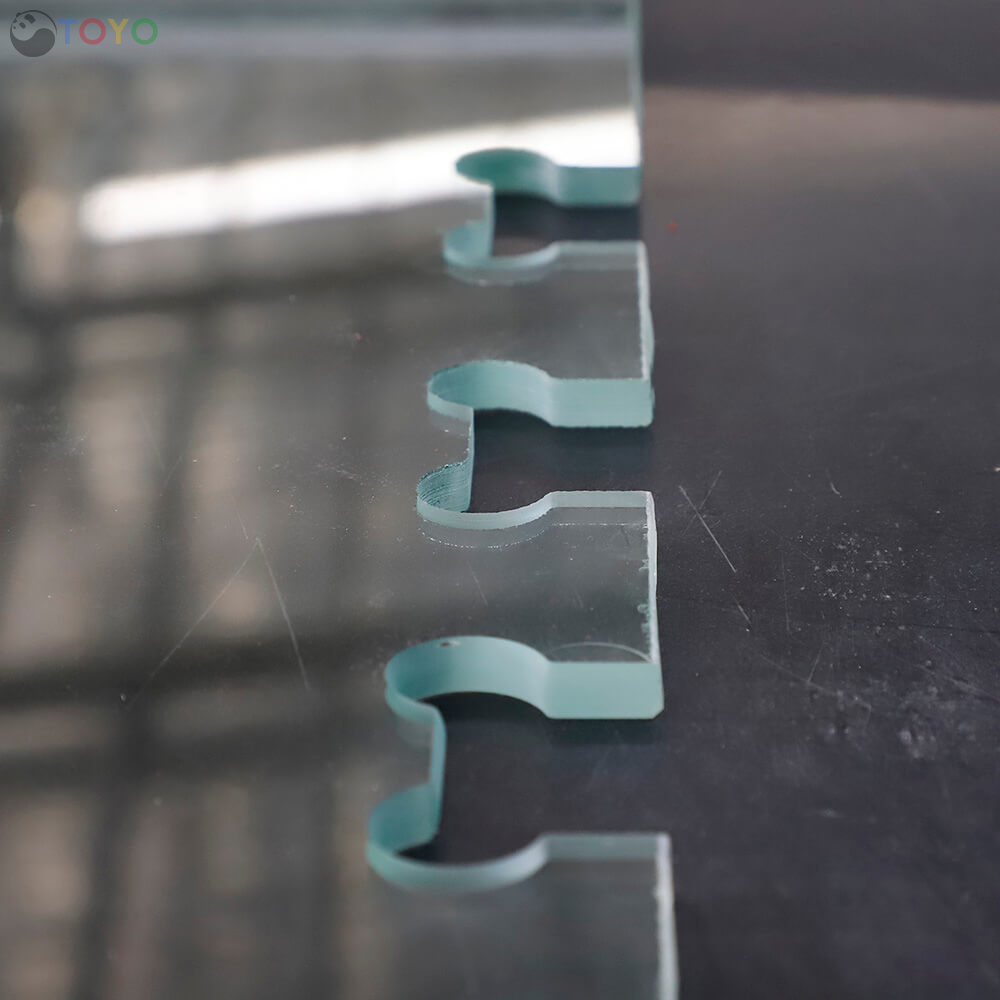

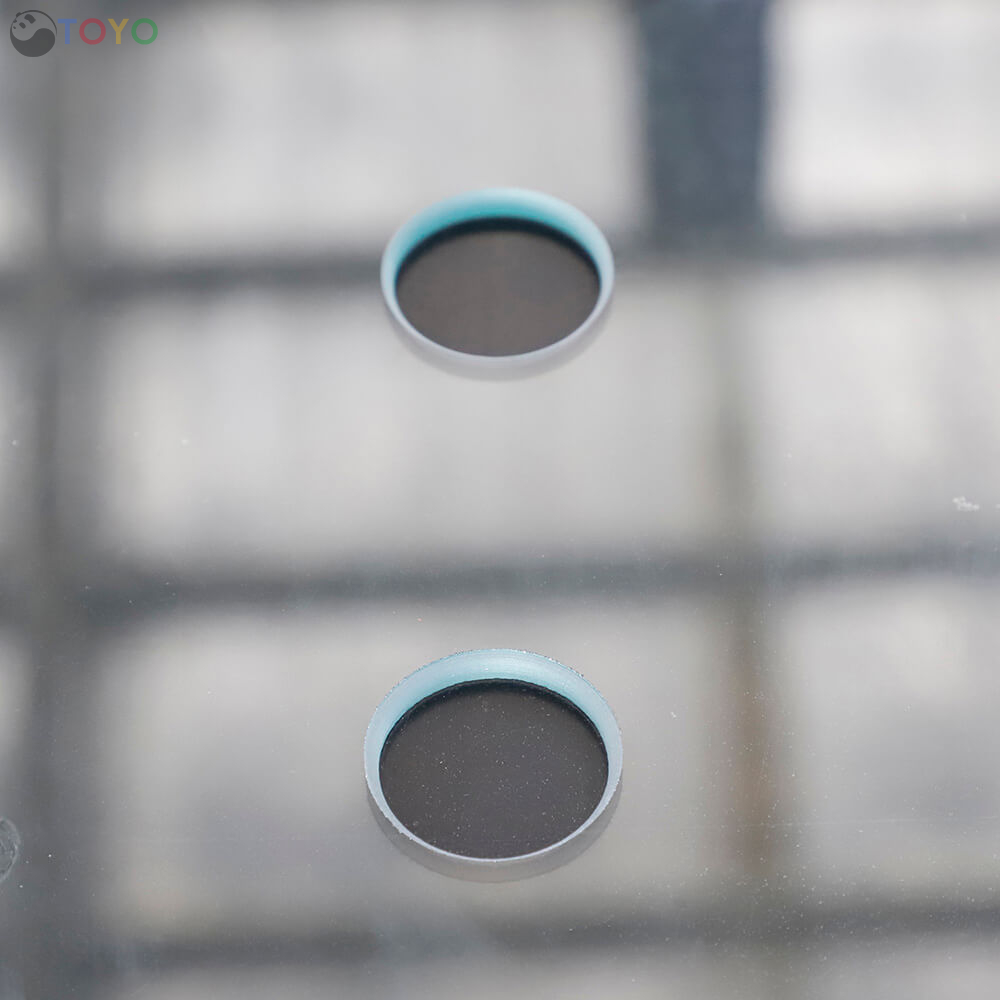

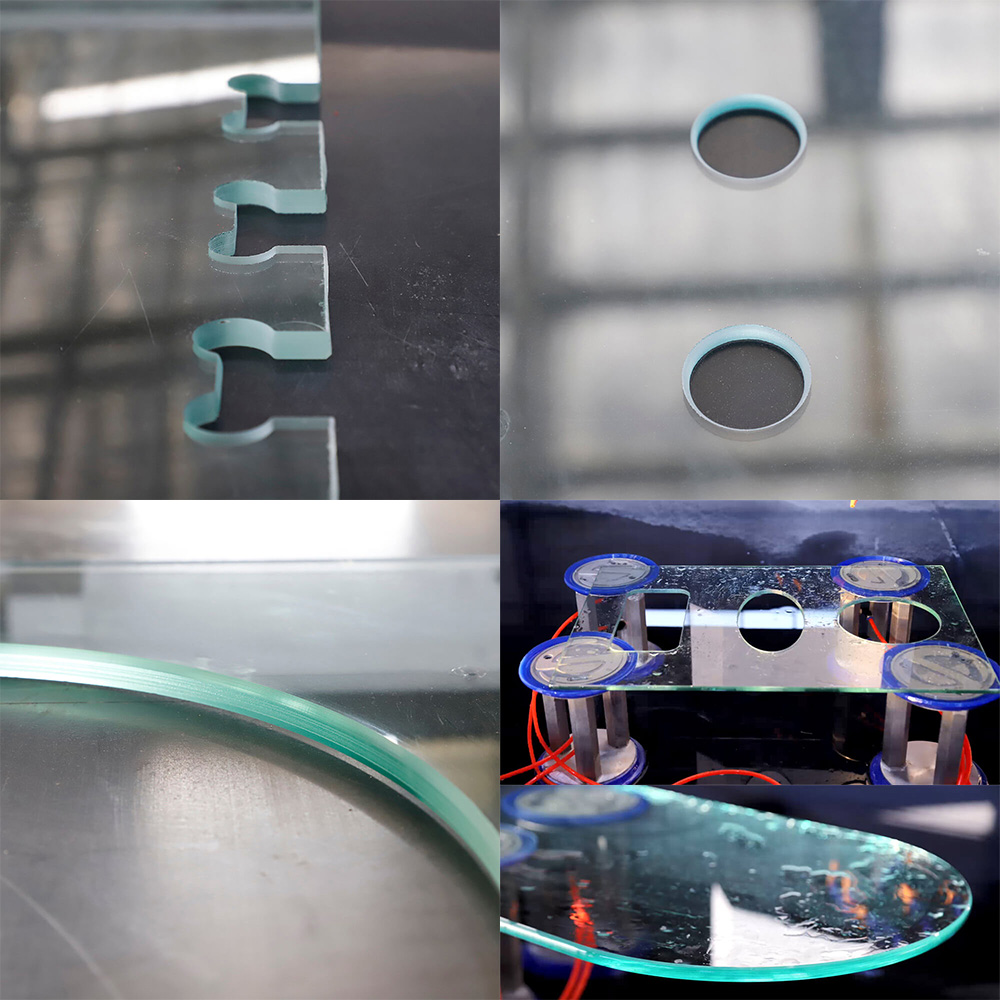

1. Sink hole in the glass countertop of the cabinet, stove hole, pipe hole
2. shower door clamp, hinge hole, handle hole, cut outs,
3.Cabinet Kitchen door invisible handle hole
4.Aluminum profile handle hole and hinge hole
5. Electric panel
6. Aquarium stealthy cover, fish tank making etc.
7. Boothroom mirror back processing , one part of function as sandblasting
| Model No. | Mach. Size | work table size | Max. working stroke | Glass Thickness |
| ZXX - C1015 | 1850*2600*2200mm | 1000*1500mm | 1000*1500*380mm | 3-25mm |
| ZXX - C1812 | 2230*1830*2200mm | 1800*1200mm | 1800*1200*380mm | 3-25mm |
| ZXX - C1325 | 3270*2200*2200mm | 1300*3000mm | 1300*2500*380mm | 3-25mm |
| ZXX - C3018 | 4000*2860*2200mm | 2700*1800mm | 2700*1650*380mm | 3-25mm |
