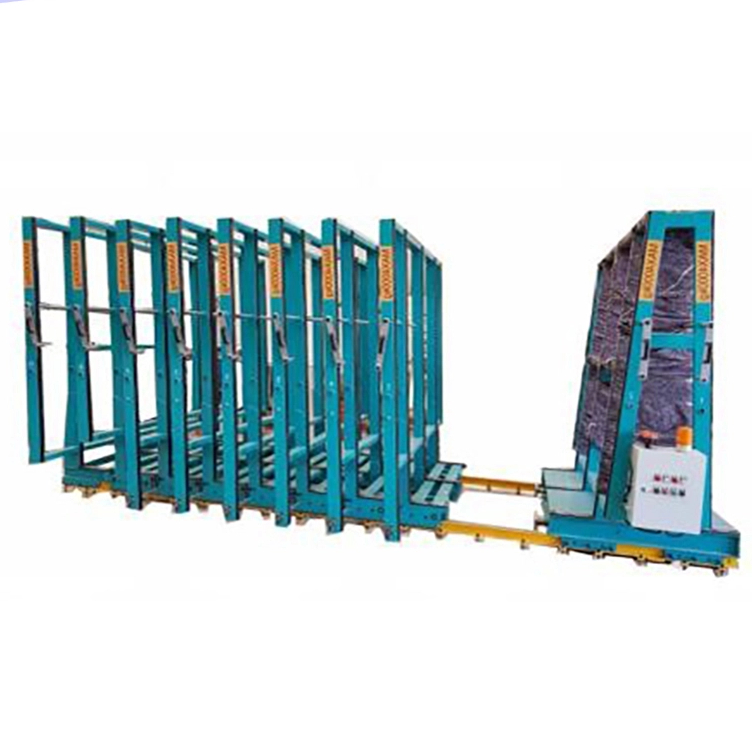

Electrical Glass Storage System

1. Light and compact, easier use 2. Storage in one compact shape and space 3. High quality rubber pads with built-in steel plates 4. Customized size and design are available 5. Sold and used in one set 6. Square steel tubing: 60*60*3mm 7. Electrostatic spraying for long lasting surface 8. Electrical control with speed of 1m/min 9. Overhead crane to pick up and put the glass pack 10.The height of warehouse needs to be more than 4m 11.One 40HQ can contain 20 racks
  • Toyocc

Availability:
Quantity:

Product Description

electrical Glass storage system

u Description

This equipment is suitable for the placement and storage of the bare bag glass with the dimension of 2440*3660*200mm

(or other objects with no larger dimension, and the maximum load of each set of mobile rack is 4000kg).

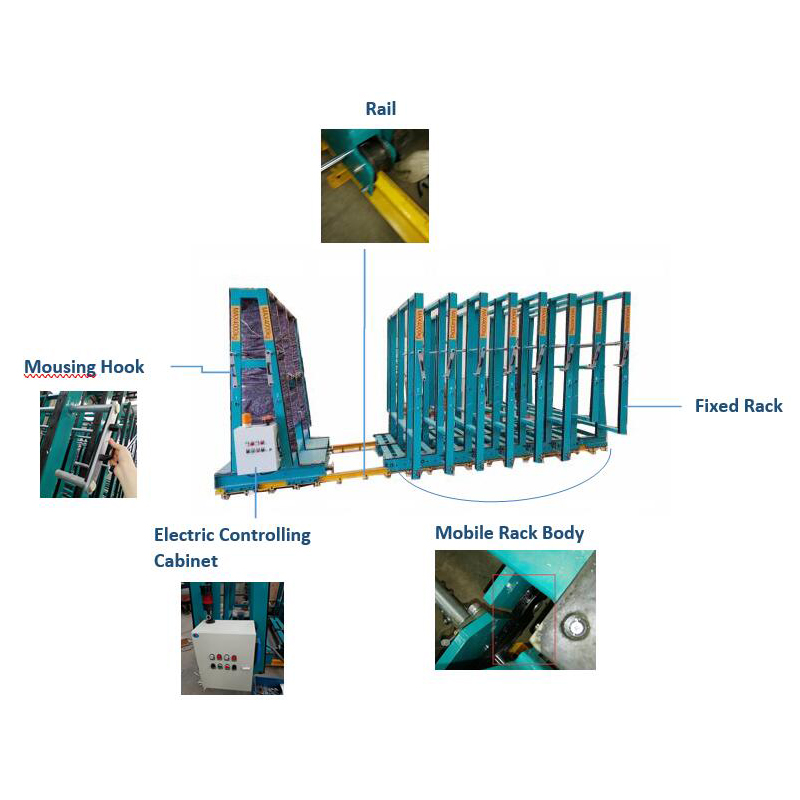

The equipment is composed of electrical part and mechanical part, and the operator will drive the motor via the remote-controlling equipment,

which will drive the mechanical pushing rod to make mobile rack bodies of a certain amount on the equipment to move in a certain direction,

and it can realize the storage and placing operation of the glass effectively. Quantity of racks for one system can up to 35.



u Features

ü  Light and compact, easier use

ü  Storage in one compact shape and space

ü  High quality rubber pads with built-in steel plates

ü  Customized size and design are available

ü  Sold and used in one set

ü  Square steel tubing: 60*60*3mm

ü  Electrostatic spraying for long lasting surface

ü  Electrical control with speed of 1m/min

ü  Overhead crane to pick up and put the glass pack

ü  The height of warehouse needs to be more than 4m

ü  One 40HQ can contain 20 racks



u Appearance Diagram

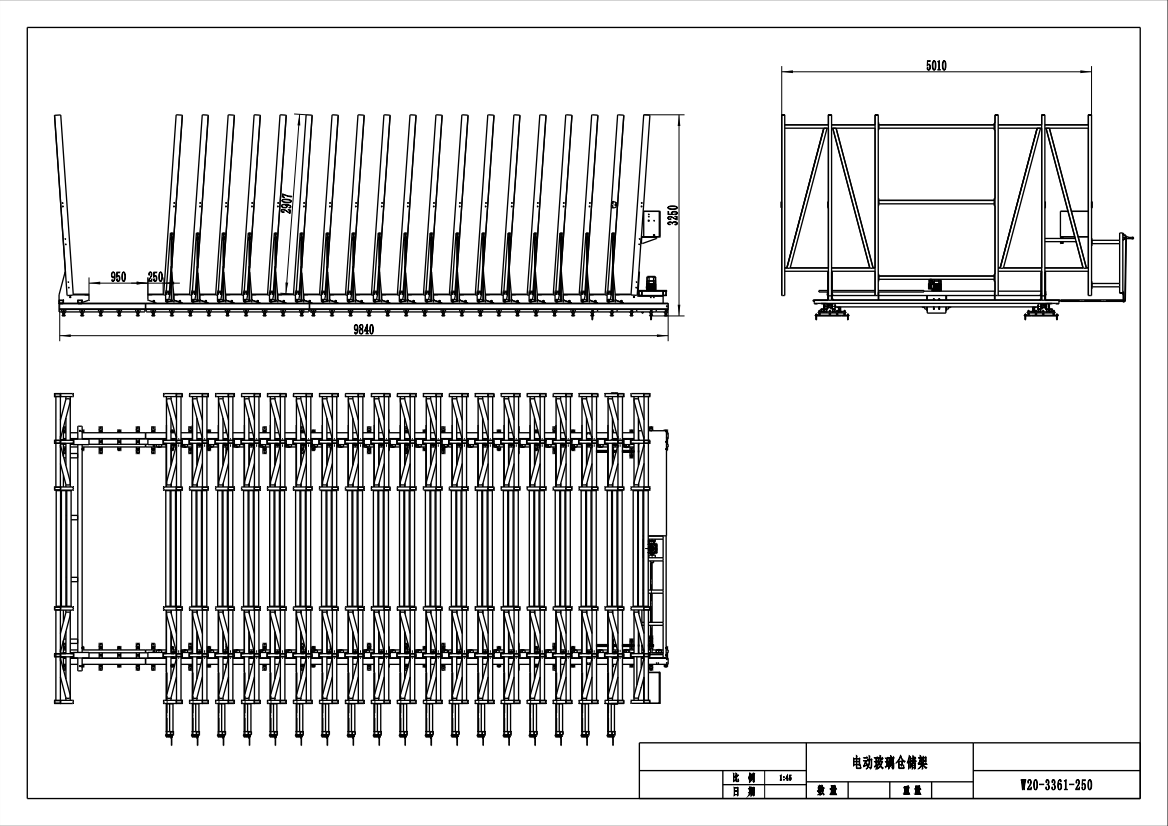

10 sets Electric Movable Storage Rack

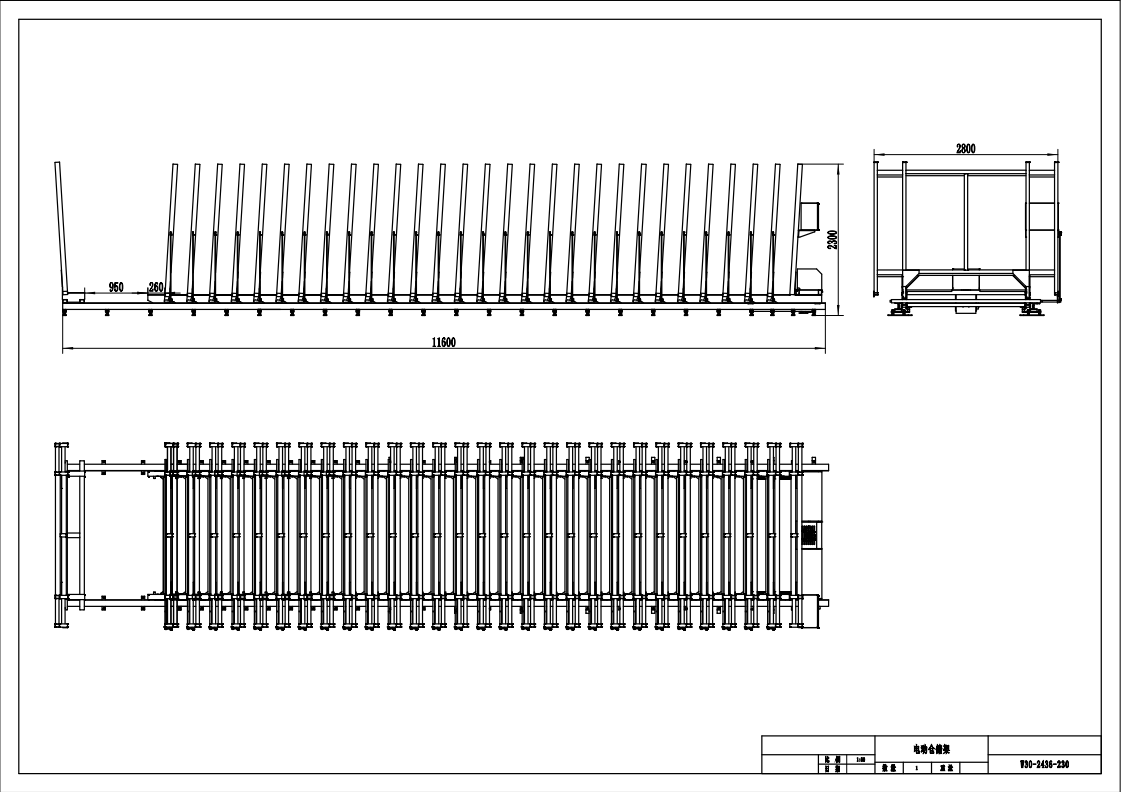

30 sets of electric storage racks

u Specification

Electrical glass storage rack system

Specification (mm)

Length*Height*Width

Storing Thickness for one Rack (mm)

Qty for 1*40HQ (racks)

Weight Load for one rack  (kgs)

2440*1830

250

20

4000

2440*3660

250

20

4000

Note:

Customized size and design are available.





Application

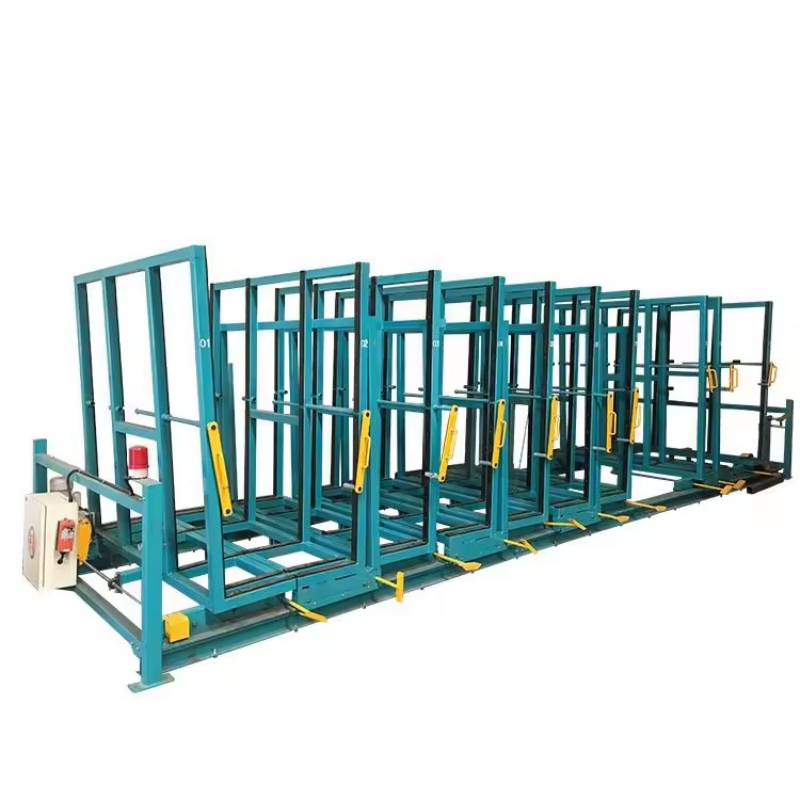

10 sets Electric Movable Storage Rack

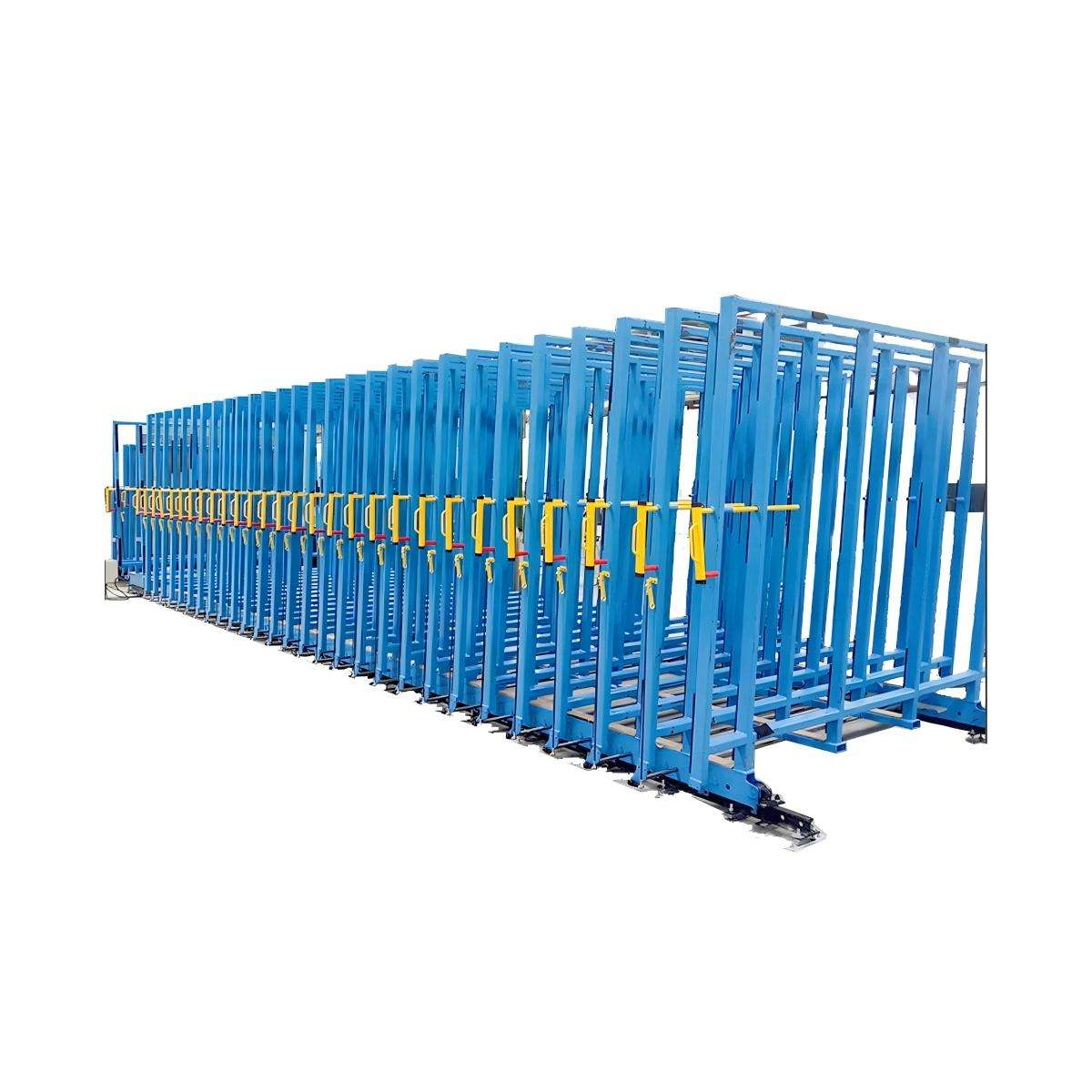

Electric Movable Storage Rack


2


3


11


12

7
