Glass Installation Robot Trolley

Quantity:

Product Description

  1. Double system control, one vacuum system for working, and one for alternate;

  2. Adopt Ameriacan TOOMAS vacuum pump, Italy METALROTA heavy type driving wheel, Swiss BUCHER power unit and intelligent maintenance-free battery, during the use, without air source or power supply, it can achieve electrice walking, lifting, lowering, taking and releasing air by electrical. Manually rotated 360 in the vertiacl side, and manually rotated 90 in the horizontal side.

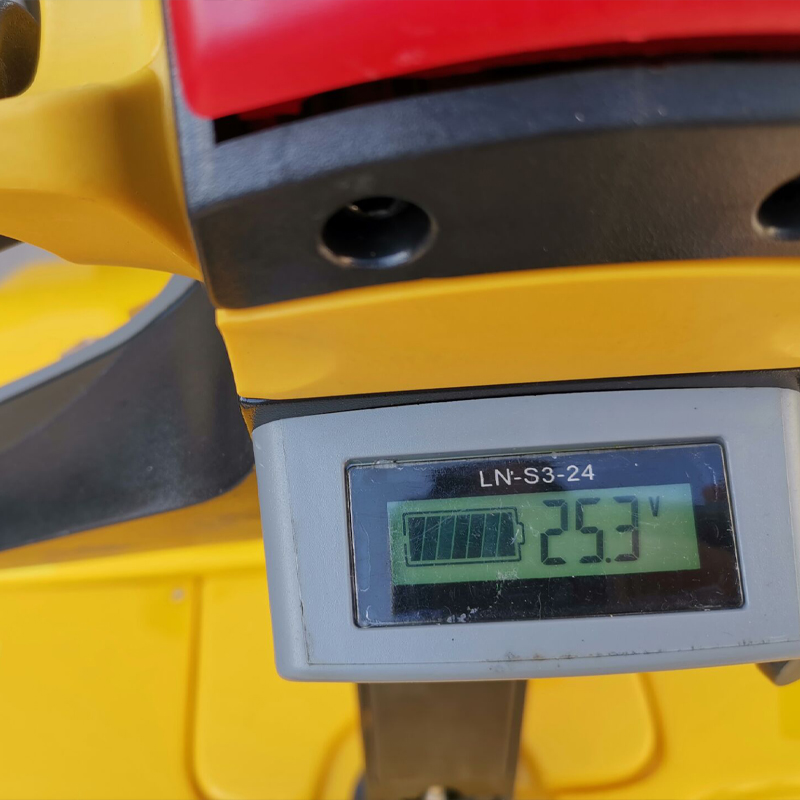

  3. With Japan PANASONIC digital display vacuum pressure switch and battery fuel gauge, clearly monitor the safe operation of the equipment.

  4. With vacuum pressure auto supply system to ensure the whole vacuum system maintained at a relatively constant safety pressure value, if catch the unexpected power failure, the pressure holding function can exten the emergency handing time, safer to use.

  5. Adjustable design, can be changed the position of the suction cups and assembled in various ways according to needs, each suction cup equipped with a separate control value, can handle glass of different shapes and sizes.

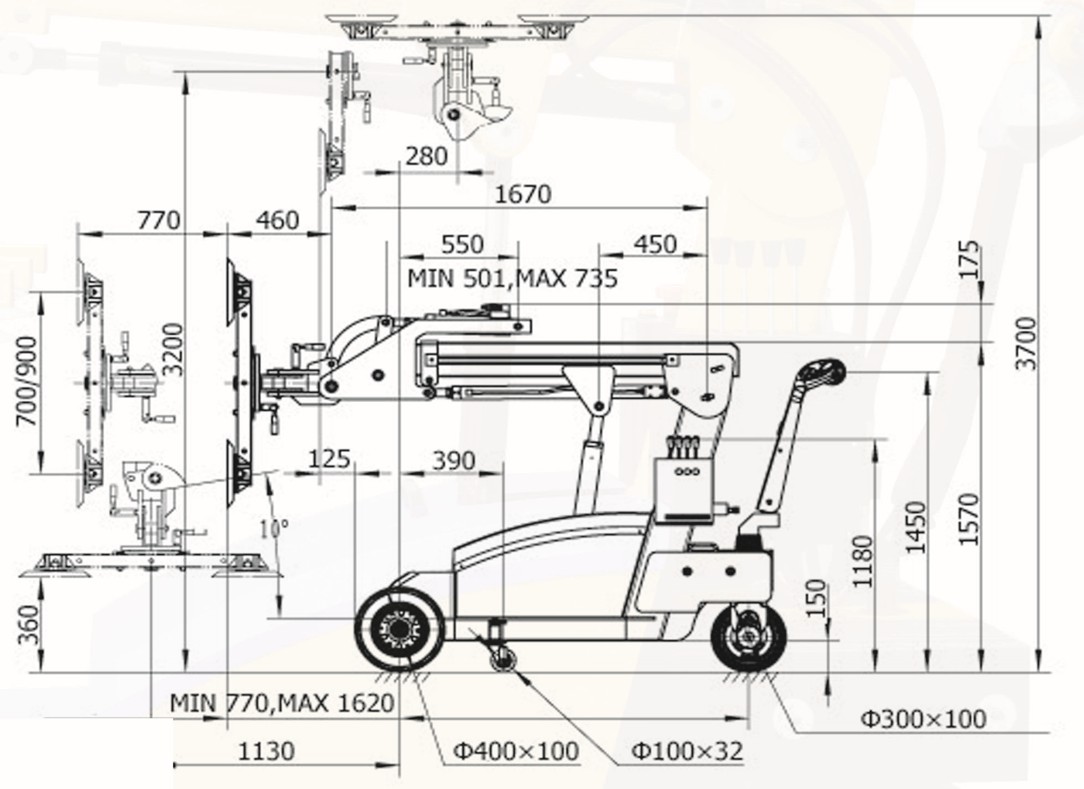

Electric   Robot  Unit RYG
Rated load   capacity kg 300 350 400 500 600
Manual   rotating deg 360 360 360 360 360
lifting height mm 3500 3500 3500 3500 3500
Manipulation / Walkie Type Walkie Type Walkie Type Walkie Type Walkie Type
Battery V/A 2x12/80 2x12/90 2x12/100 2x12/120 2x12/120
Charger V/A 24/12 24/12 24/15 24/18 24/18
Drive motor V/W 24/1200 24/1200 24/1200 24/1500 24/1500
Lift motor V/W 24/2000 24/2000 24/2000 24/2200 24/2200
Overall Width mm 810 810 810 810 810
Overall Length mm 2660 2660 2660 2800 2800
Driving wheel   dimension mm 250*80 250*80 250*80 300*100 300*100
Suckers   diameter mm 300 300 300 300 300
The glass size mm 3660*2440 3660*2440 3660*2440 3660*2440 3660*2440
