Irregular Shape/Round Shape/Special Glass Shape Grinding Machine

1.Easy to operate 2. Waterproof 3. Stable working platform 4. Small body, space saving 5. Customized color
  • TYJT-G1

Availability:
Quantity:

Product Description


Description



Shaped glass edging machine is suitable for processing round, oval and irregular shaped glass. It could make out the round edge, duck edge, square edge and bevel edge. The machine base is made of integral castings, and other structures are made of high-strength cast iron. The overall structure ensures the stability of the working. The working platform adopts a vacuum pump to absorb the glass, the motor drives the working platform and then makes the glass sheet to rotate and be polished. What’s more, the working speed could be adjusted according to the demand.



This machine can be equipped with cylinders, which can be used for rough grinding, fine grinding and polishing of simple shapes of glass.



Features



  • Easy to operate

  • Waterproof

  • Stable working platform

  • Small body, space saving

  • Customized color



 Parameters


Special Shape glass edge grinding   machine

Technical Parameters

TYJT-G1

Space

1200*1200*1800mm

Net Weight

1000kg

Glass Processing   Thickness

3-25mm

Angle

0-15 degree

Max Bevel Surface Width

35mm

Rotary diameter of glass

100-2100mm

Speed

0.5-2.5r/min

Voltage

380V, 50HZ, 3 Phrase

Power

3kw


Pictures

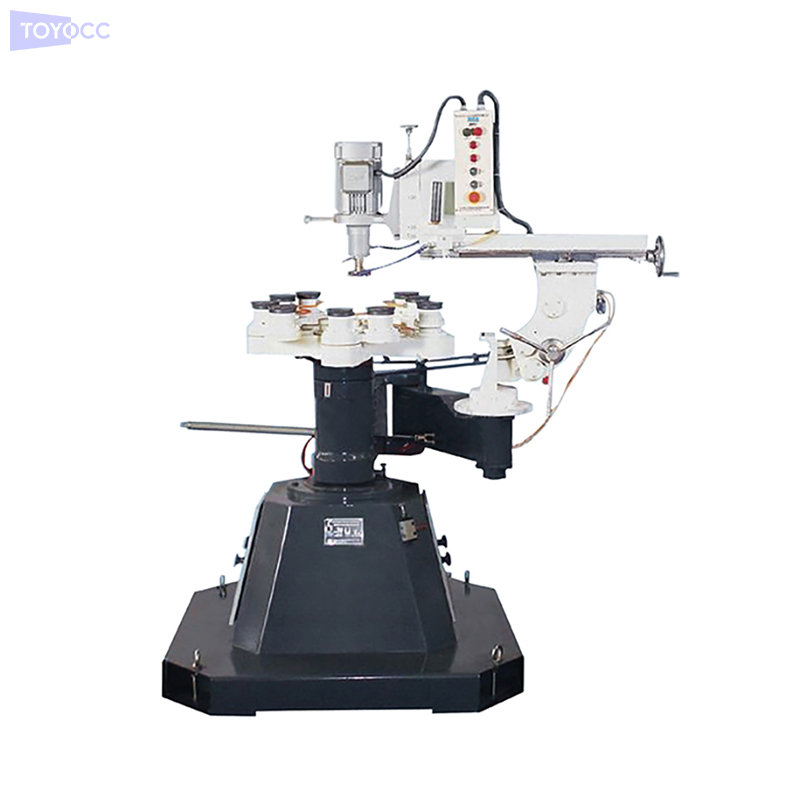

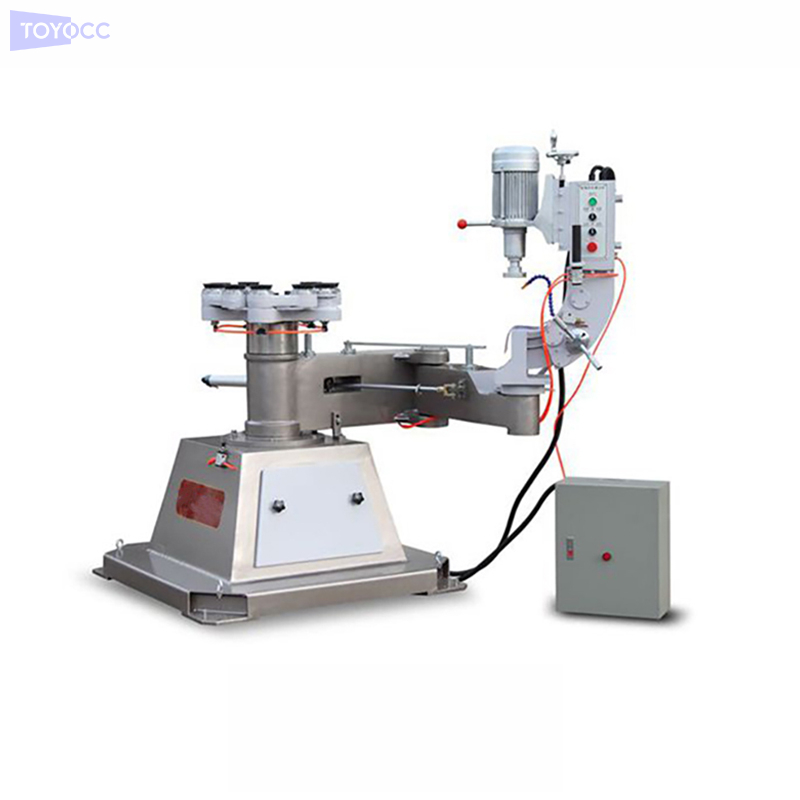

JGYM1320 External circular shaped machine-1


JGYM1320 External circular shaped machine-3


Desiccant Zeolite (1)

TCGYX1321-1


TCGYX1321-5


TCGYX1321-4
