CNC Full-Automatic Glass Cutting Line

- Fully automated glass cutting system for float glass
- Fast, accurate and stable cutting performance
- Automatic glass loading from both sides
- Extremely robust structural design
  • TC-4228
Availability:
Quantity:

Product Description

The design draws on the concept of German Industry 4.0, and realizes the automation of the cutting process, information data, and intelligent operation. The overall frame of the equipment adopts bridge steel technology, which is treated with aging after welding. strength and stability. The frame structure material is made of high-strength steel, which has high strength and no deformation. The welding has undergone aging treatment. It has good physical properties and can be produced in conjunction with bilateral grinding and four-sided grinding.


Features


- Fully automated glass cutting system for float glass

- Fast, accurate and stable cutting performance

- Automatic glass loading from both sides

- Extremely robust structural design


Parameter


Model

TC-4228

Accuracy

±0.15mm/m

Apeed

0-200m/min

Max Cutting Size

4200mm*2800mm

Thickness

3-19mm

Power

5-8KW

Power Supply

380V/50HZ

Loading Speed

Adjustable

Cutting Speed

Adjustable



Machine Pictures

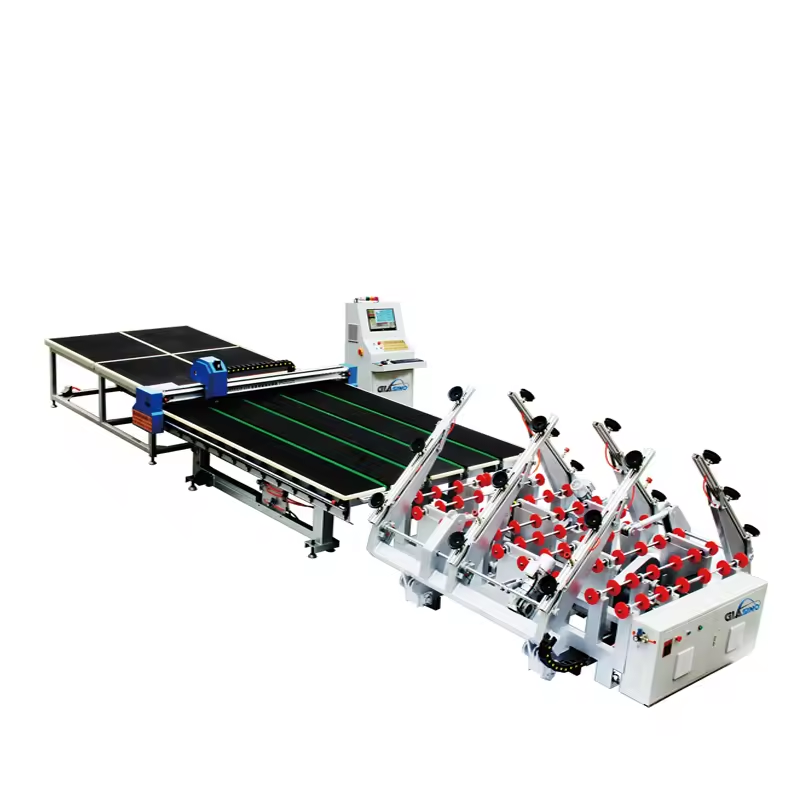

Glass cutting line2
Glass cutting line6


Details Infomation

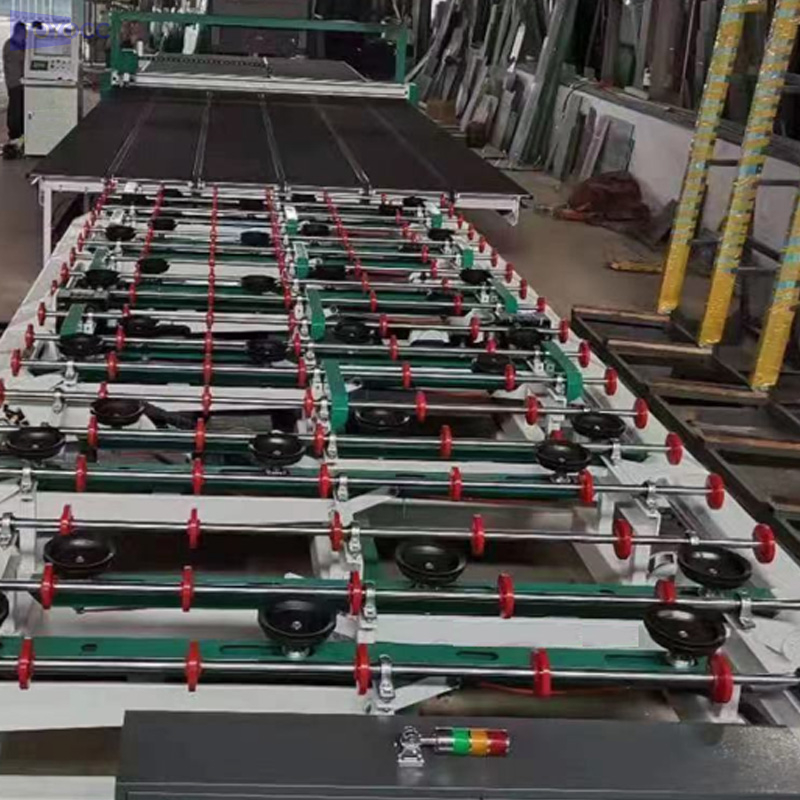

TC-4228 Full-automatic glass double arms and single positions loading machine

  • Equipment System: main frame/ running system/ transfer system/vacuum adsorption system/mechanical turning system/high and low pressure control system/program control system

  • Automatic glass loading machine is an equipment that can suck glass from the glass shelf and turn to  the level table and transport to cutting machine or any other working place.

  • Vacuum system use famous brand vacuum pump, and increase stability and safety of the equipment largely.

  • All the work processes are controlled by the PLC.

  • With very sturdy frame structure, reliable vacuum system design with venturi vacuumdevice to prevent glass falling in case of electricity blackouts.

  • Loading arms was driven by electrical motor.

  • High quality certified components to guarantee long term reliability and easy, spare parts

availability. Modular design makes future upgrades to more stations available.


Glass cutting line4

TC-4228 CNC Full automatic high speed glass cutting machine

  • High strength quenched steel frame: the superior steel was put outdoors for six months to eliminating stress and used annealing process to eliminate residual stress, to ensure the frame no-deformation. Steel thickness reaches 10 mm which guarantee its steady in any environment and any temperature.

  • Grinding level rack technology:High-quality grinding level rack is installed on both sides of glass cutting machine to make sure running high rigidity and precision.

  • Rotation axis of tool bit adopts the design of integrated entrance guiding shaft. No other machined parts connected. It can avoid error during processing, and guarantee high precision during cutting.

  • The cutting bridge using aerospace al-mg alloy integrate casting molding,

  • After use high precision CNC working center processing,  sturdy & light.

  • All kinds of precision error caused by vibration or weld cracking will not occur in a long-term continuous production. The cutting speed reach staggering 200 meters / min, the acceleration is 10 m²/s.


Glass cutting line7


TC-4228 glass breaking machine

  • Table top size:4200×2800mm

  • Table top height:900±30mm(According to customers’ requirements)

  • Table top surface:Fiber and woolen felt.

  • Table top:HDF

  • Bar:2pcs horizontal level,1pcs vertical level

Glass cutting line8


Please feel free to contact us for a quote.
