Glass Washing and Drying Machine

1. Horizontal structure design
2. Suitable for common, coated, and LOW-E glass
3. Full-section lifting washing and drying
4. Optional digital display or PLC control
5. Adjustable glass thickness
6. Stepless speed adjustment
7. 22kW high-power drying system
  • TOYOCC

Availability:
Quantity:

Product Description

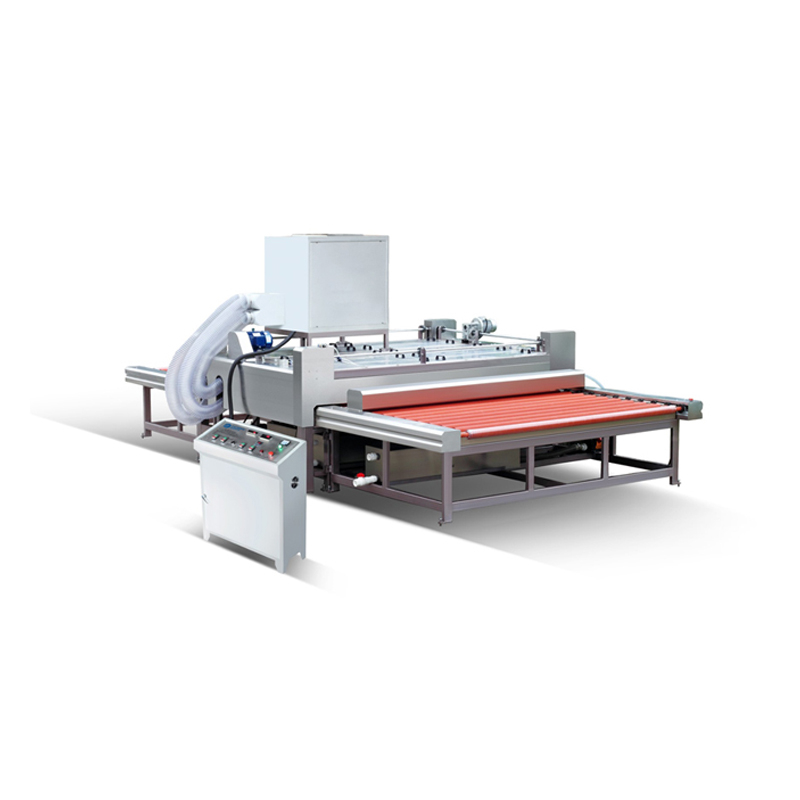

Glass Washing and Drying Machine

JGX1600-6

Description:
Adopt a flat horizontal structure and be used to clean and dry a variety of flat glass.
Machine structure is composed of feeding section, washing section, drying section and discharging end.
Using four pairs of the brush to clean, three pairs of sponge rollers to absorb water, adjustable heater for drying to bring good washing and drying result.
Adopting continuously variable transmission with stable performance, reliable and durable.


Main Technical Date:


TCGQ1200 TCGQ1600
 Max.Glass size  1150mm 1550mm
 Min.Glass size  150×150mm 230×230mm
 Glass thickness  2-15mm  2-15mm
 Transmissinon speed  0.5-5m/min  0.5-5m/min
 Power  9KW 10KW
 Weight  900kg 1000kg
Working Height 850mm 850mm
 Land occupation  3300×1600×1020mm  3800×1850×1020mm



The configuration brand of Major parts and the feature (Some configuration brands may be replaced due to products improvement without notify and Sunkon will have the right of final explanation.)


Fixture Material


The welding steadier adopts heavy thickness(3mm) metal pipe to make a stable structure to bearing large weight. They also processed casting annealing, which can avoid to be out of shape after long-time working or shaking.
The rubber roller turned by the chain in an easy way.
The vulcanization rubber (sour liquid forbidden) are stabilization and durability.

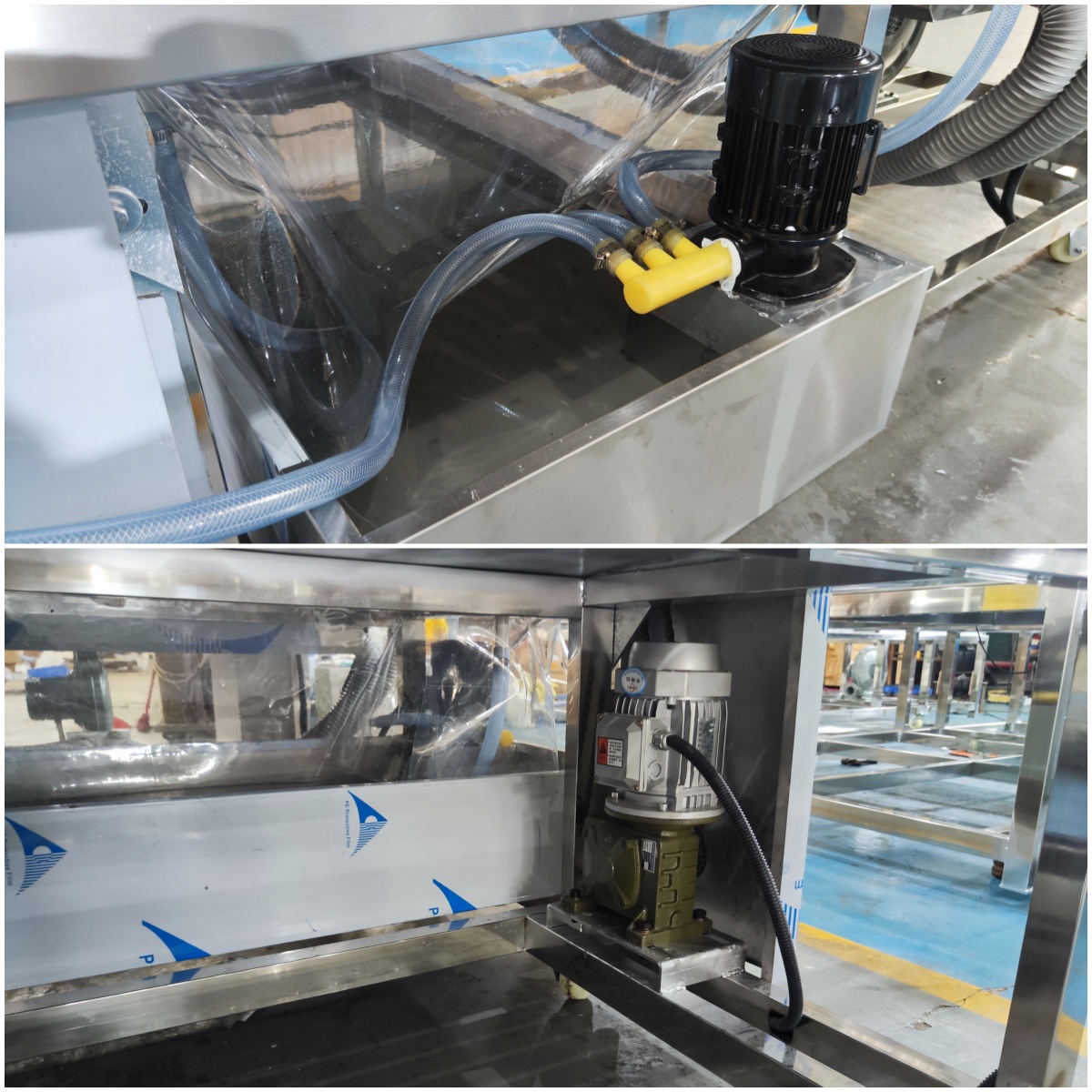

Water Pump National Famous Brand, Guangdong Lingxiao Pump            0.25KW

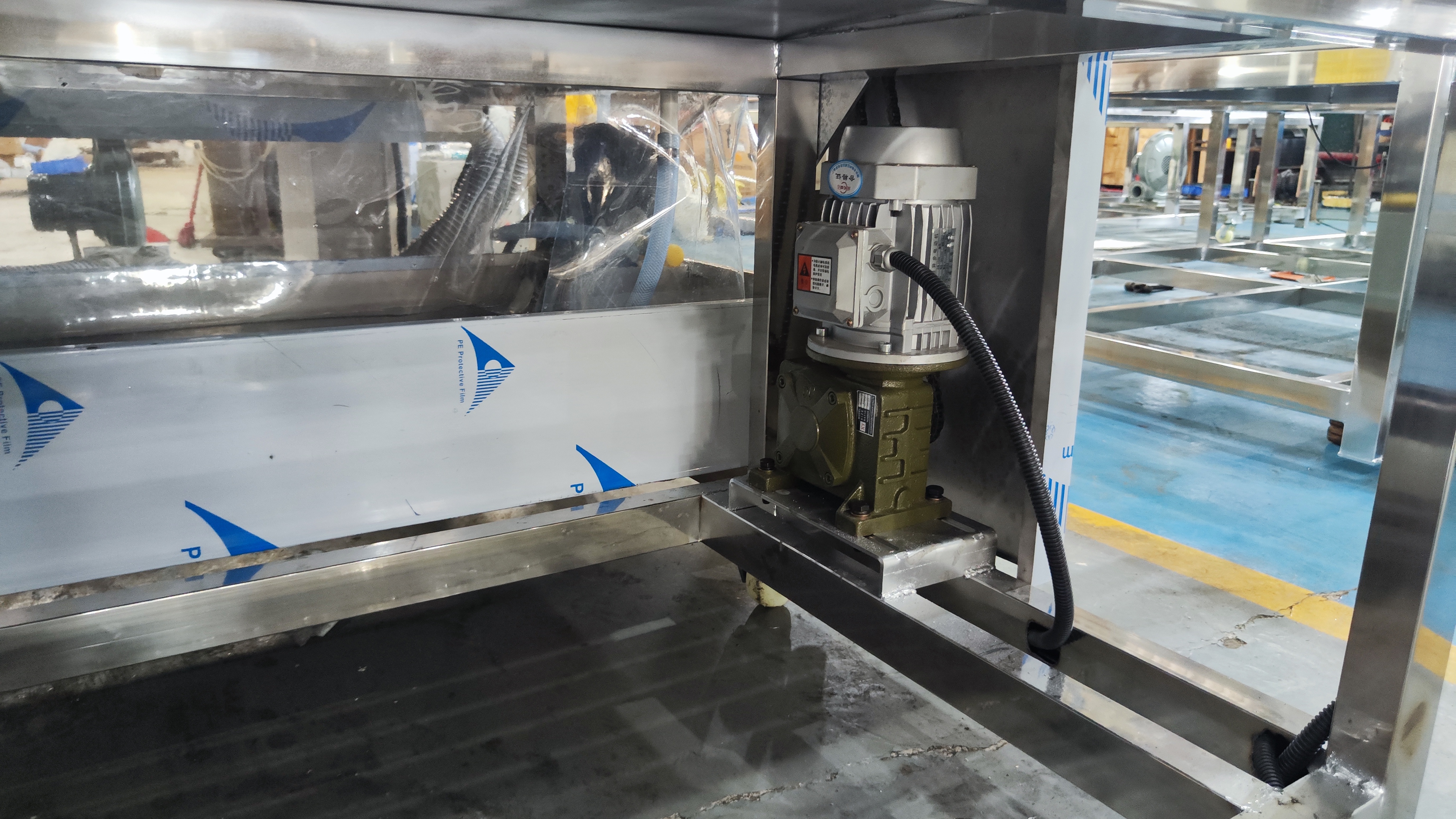

Brush Motor National Famous Brand, Zhejiang Xinling Motor   0.55KW

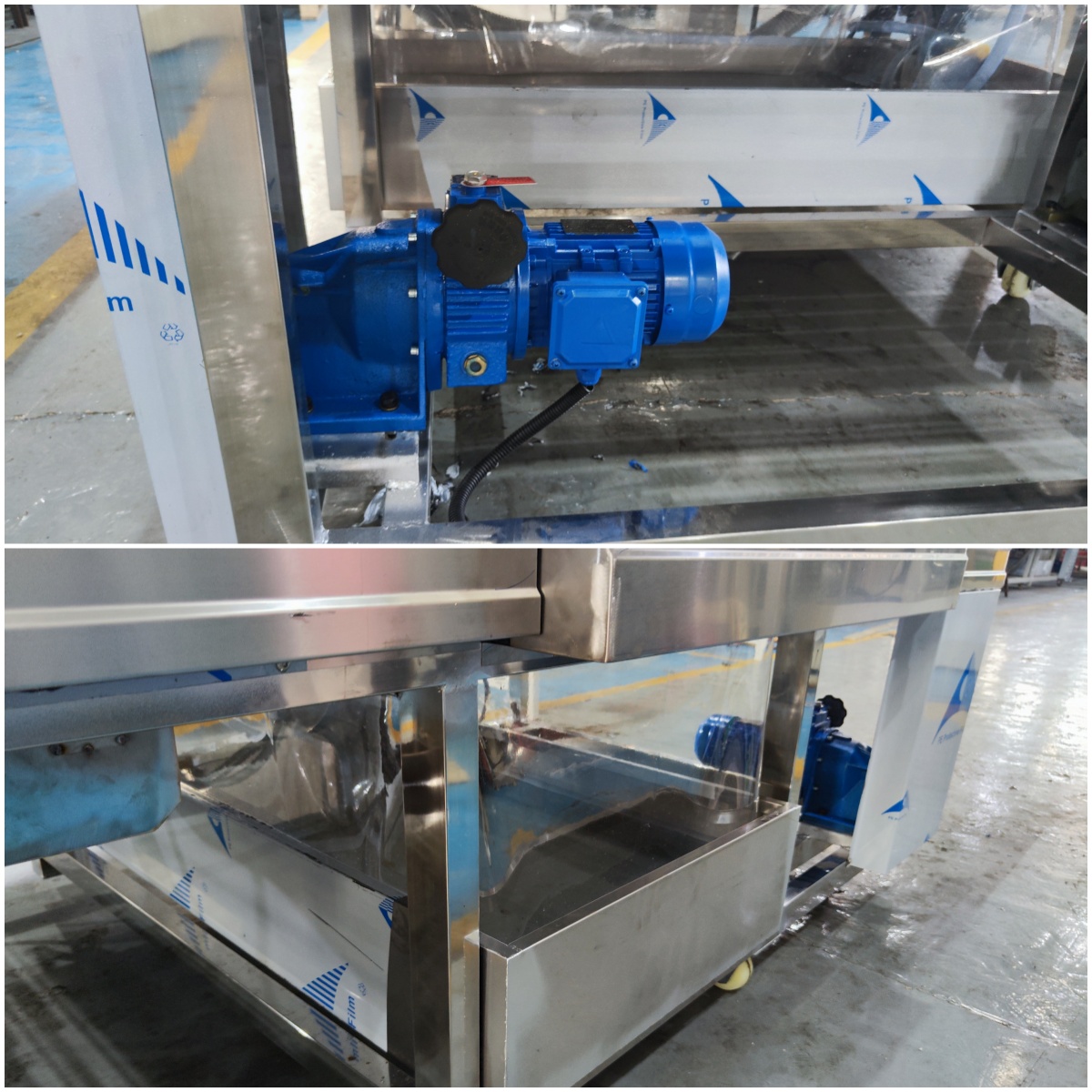

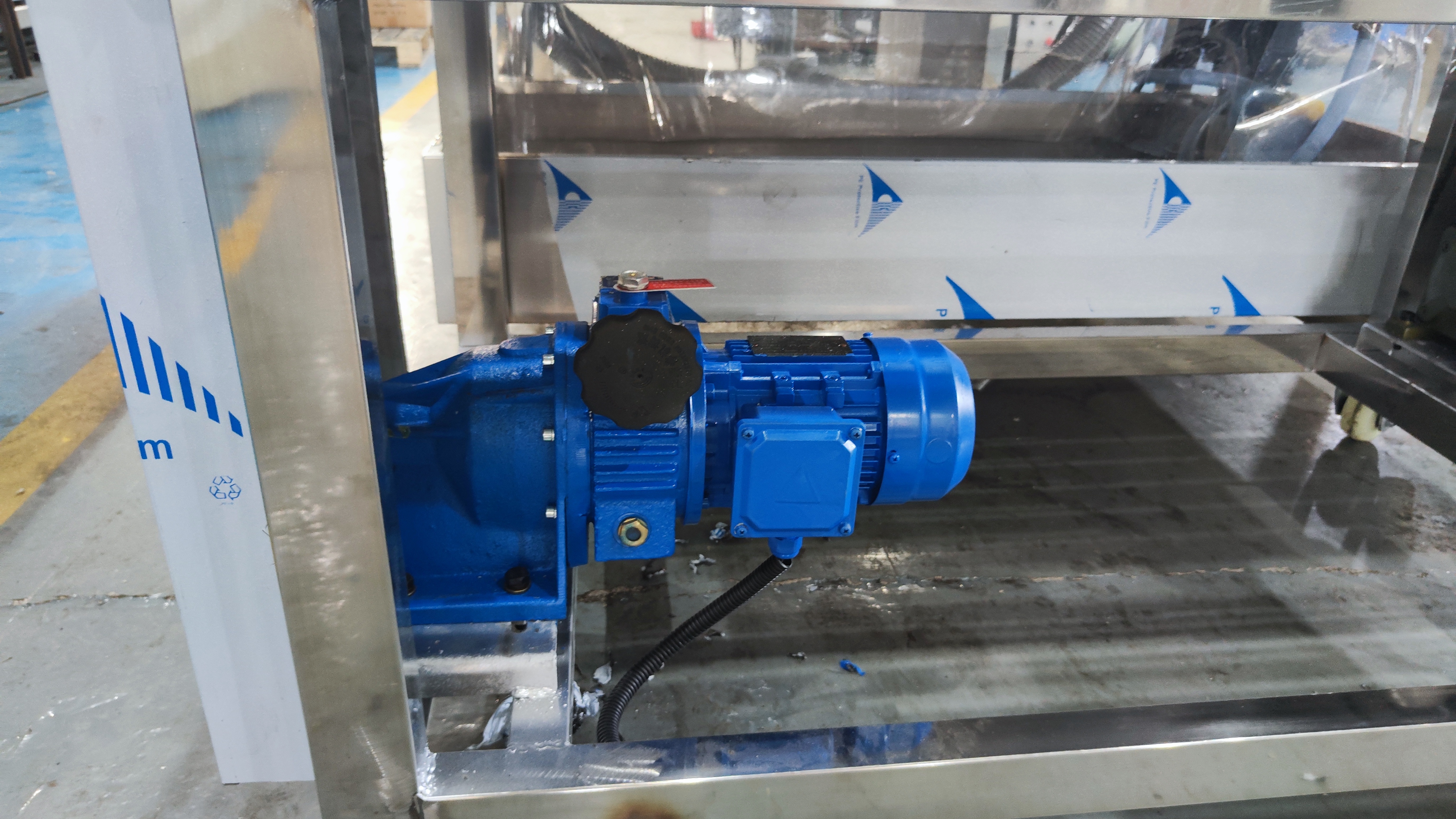

Step-less speed variator National Famous Brand, Nanhua Stepless Gearshift             0.37KW
Bearing National Famous Brand, Harbin HRE

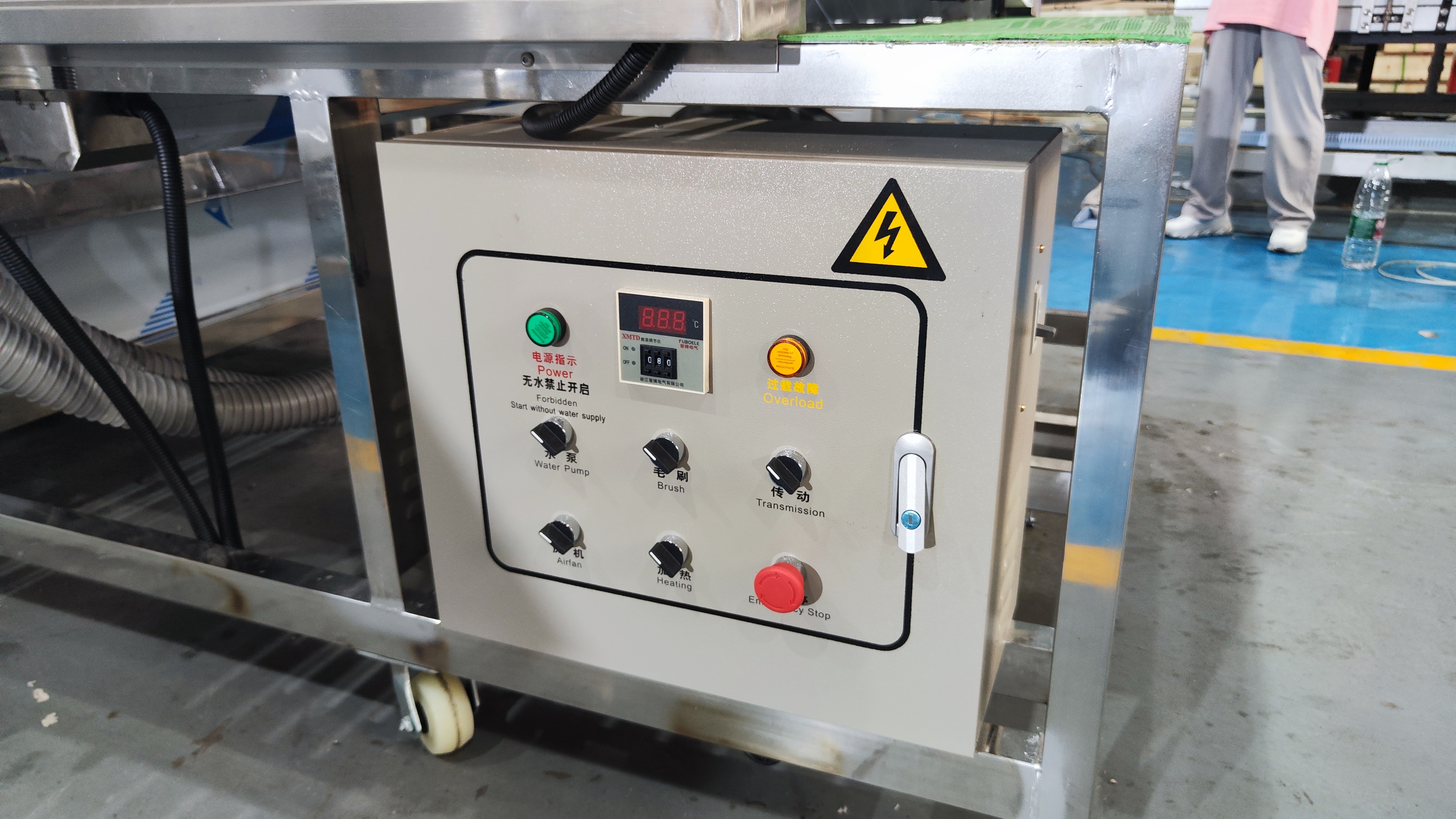

Electrical Appliance National Famous Brand, Zhejiang Chint Electrics
Water Tank 700x220x1200mm


Machine details:

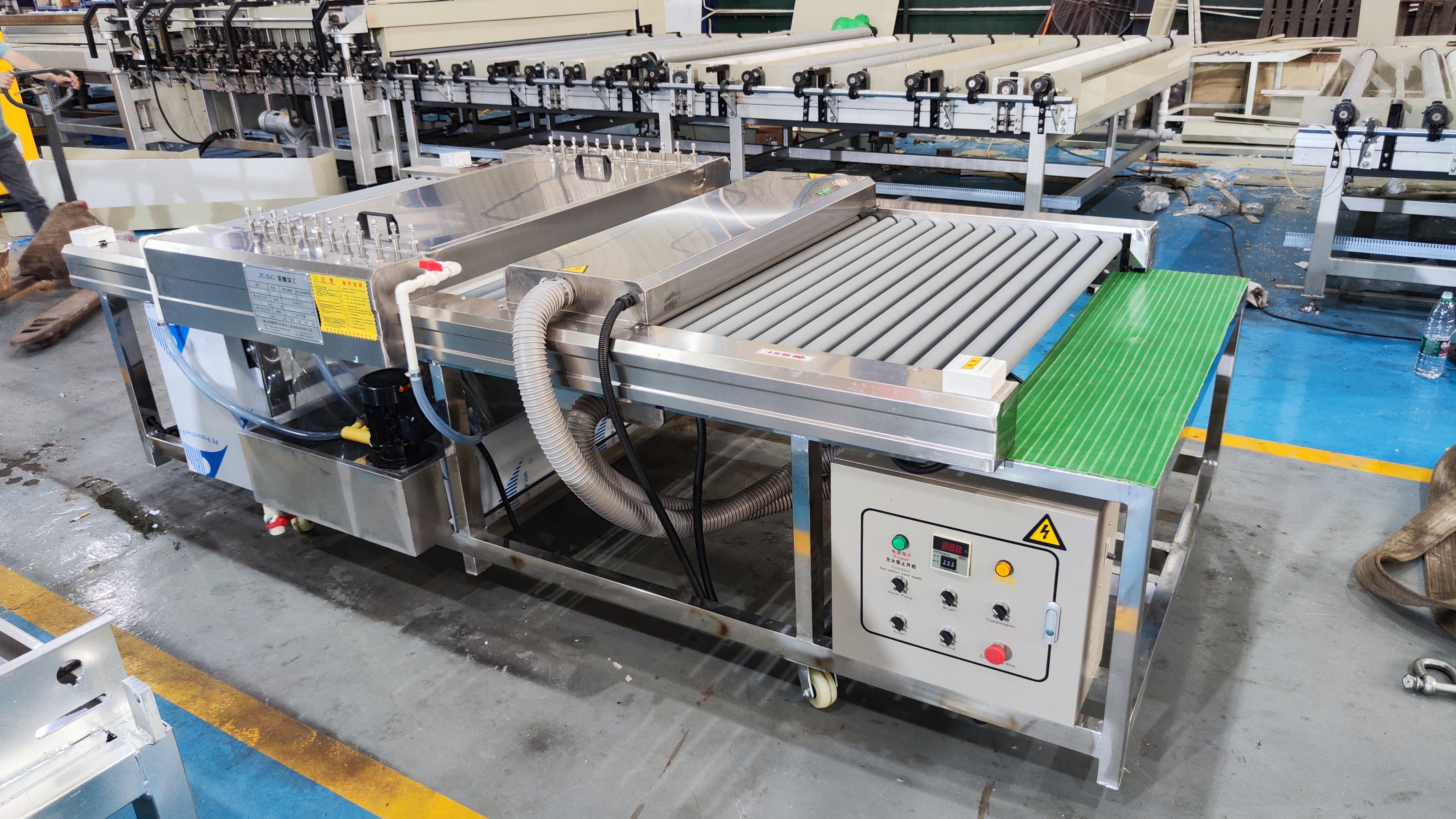

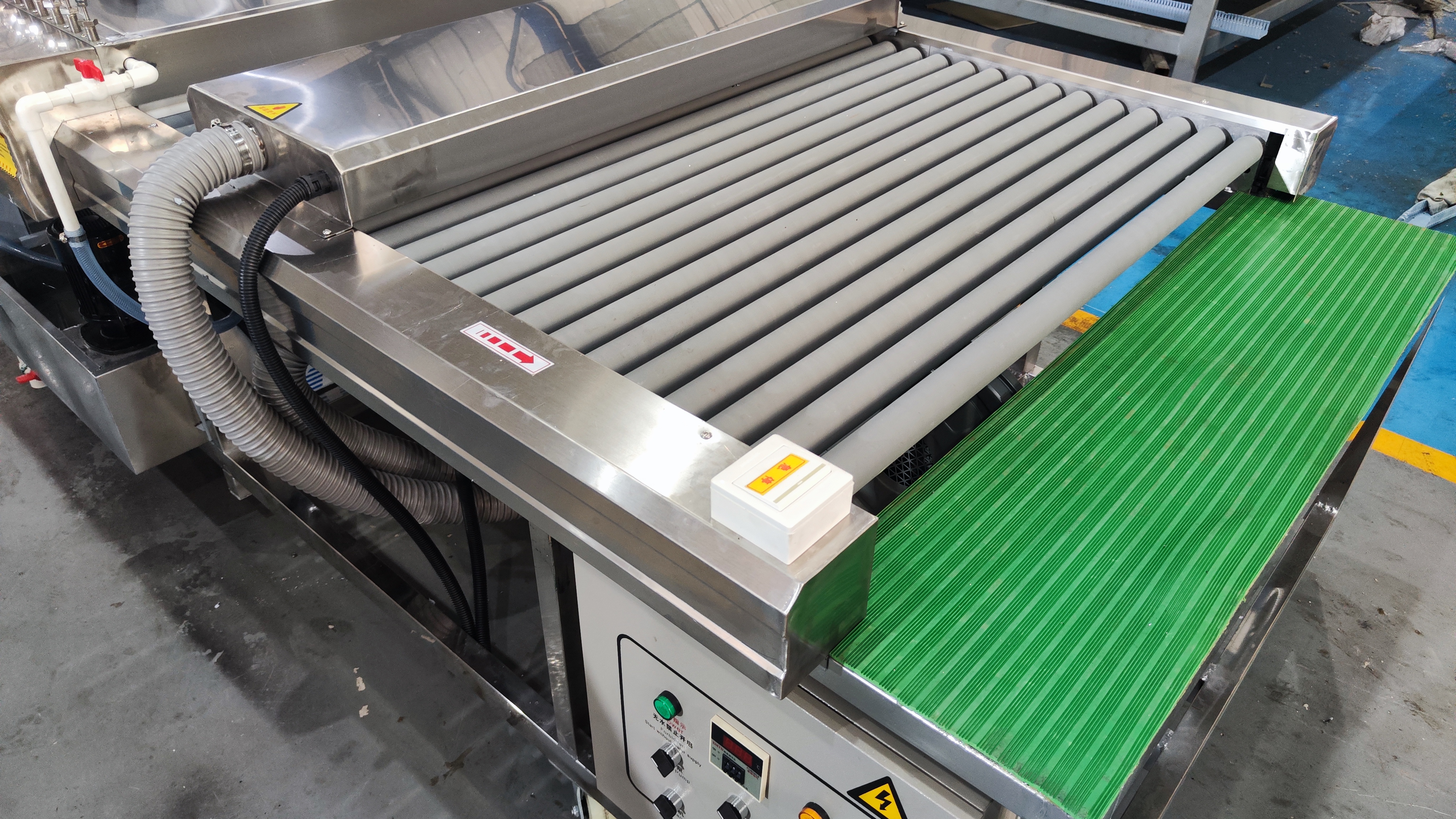

glass waching machine3glass waching machine2glass waching machine1


Toyocc glass machine1Toyocc glass machine
