Dual IG Storage Rack
Product Overview:

The Dual IG Storage Rack Unit is a free loading harp storage rack (optional mounted on four heavy-duty casters). The floor is with numbered slots and glass handling controlled by a dual set of replaceble dividing nylon cords and corners. Glass is delivered to the washer sorted in the proper order to match up with the spacer frames. The washer operator simply loads each glass sheet in order from the racks. Also offered are 100-slot carts for single slotting glass.

Features:

  • Rugged structural steel design with multiple base and divider options designed to fit your needs
  • The rack base and back vertical members are all MIG welded construction
  • Durable electrostatic coating for long-lasting durability
  • The harp dividing nylon cords and corners are removable, so that the cords and corner can be replaced when it becomes worn.
  • The rack flooring contains bolted HDPE strips glass contact surfaces for easy sliding of glass.
  • HDPE strips also provides a non-stick surface for insulated glass.
  • Labeled slots is easy to organize production for the rest of the plant
  • Frame for storing / transporting insulating glass units for inside and outside, mounts for forklifts and industrial trucks, optionally four additional casters.
  • Multiple racks are shipped stacked & vertically nested for freight savings.
  • User assembly of cords and casters.
Specification:


Model

Width

Depth

Height

Loading Capacity

Slot Width

Flooring Strips

TY-IGR1200

2000mm

1200mm

1800mm

2T

10-40mm

HDPE

TY-IGR788

2000mm

788mm

1800mm

2T

10-40mm

HDPE


Drawing:
Product details:
Shipment picture:
Harp Rack

Product Overview:



This product is widely used in highend glass, Insulated glass pairing, and other places with a strict requirement on glass placing. It can ensure that single piece of glass not hurt when placing. For hollow glass pairing, it can take and put glass accurately, to achieve the goal of saving manpower & time & space. The shelf has a device for fixing glass to avoid glass slide down when moving. It uses separated structure, easy to assembly and installation, can greatly reduce the cost of transportation.

Features:

  • Light and compact, easier use
  • Storage and transportation all in one
  • Detachable into parts when shipping to save space
  • Customized size and design are available
  • Sold and used in one
  • For hollow glass pairing and other exquisite glass sheet which needs careful storage condition
  • Small nylon wheels in the base to reduce friction and scratch
  • Electrostatic spraying for long lasting surface
Specification:

Model

L*H*W

Max. glass thickness

slots

Self-weight

Working Load

TY-HR84

1500*1800*1200mm

8mm

84

150kgs

1500kgs

TY-HR40

1000*1800*1200mm

12mm

40

125kgs

1500kgs


Drawing:
Product details
Shipment picture:
Glass L Rack
Product Overview:

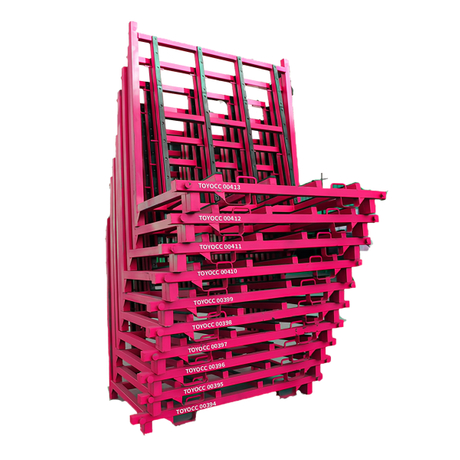

L-shape glass rack is a mufti-functional glass stock rack integrating storage and transport all-inone. It is the first choice to store fragmented glass or finished glass. Rack angle strictly controlled at 90 degrees, so it will never be slipped for the insulated glass. With weight block and forklift truck, it can move glass with great stability. And also it can be directly handling by crane. The rack can be overlaid one by one to save storage space, transport space and improve utilization rate.
Features:

  • Light and compact, easier use
  • Storage and transportation all in one
  • High quality rubber pads with built-in steel plates thickness 0.5mm instead of 0.3mm
  • Customized size and design are available
  • Sold and used in one
  • Racks can be stacked up when shipping to save freight cost/ detachable L rack is available
  • Square steel tubing: 60*60*3mm
  • Production by automatic painting line production and high-end welding robot
  • Electrostatic spraying for long lasting surface

Specification:



Model

L*H*W

Storing Thickness

Qty for 1*20GP

Qty for 1*40HQ

Self-weight

TY-CRL750

1800*1600*750mm

540mm

30pcs

86pcs

95kgs

TY-CRL950

1800*1600*950mm

690mm

27pcs

75pcs

100kgs

TY-CRL1150

1800*1600*1150mm

890mm

25pcs

68pcs

115kgs

Drawing:
Product details:

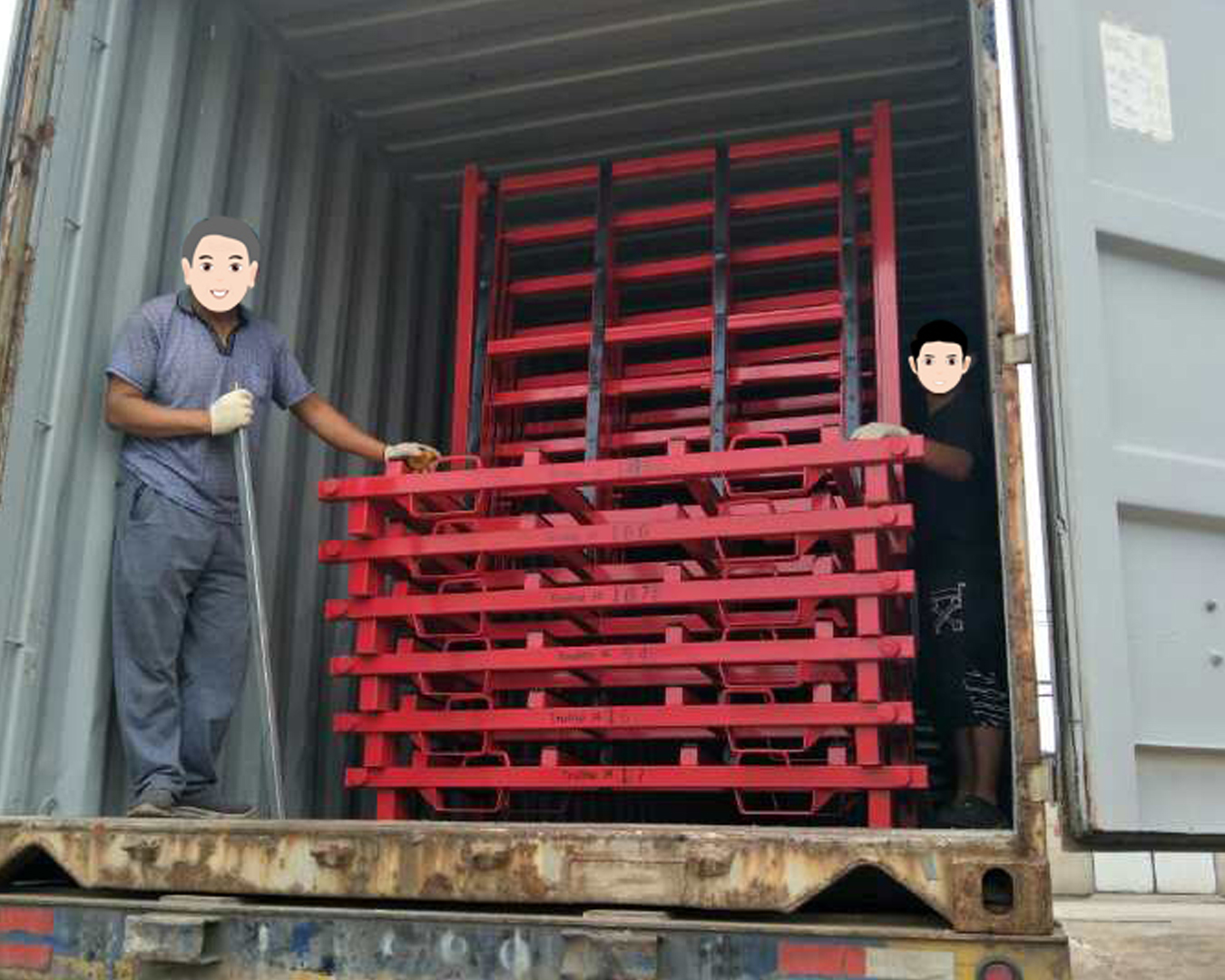

Shipment picture:
Feedback:
Drawer Type Glass Rack
Product Overview:

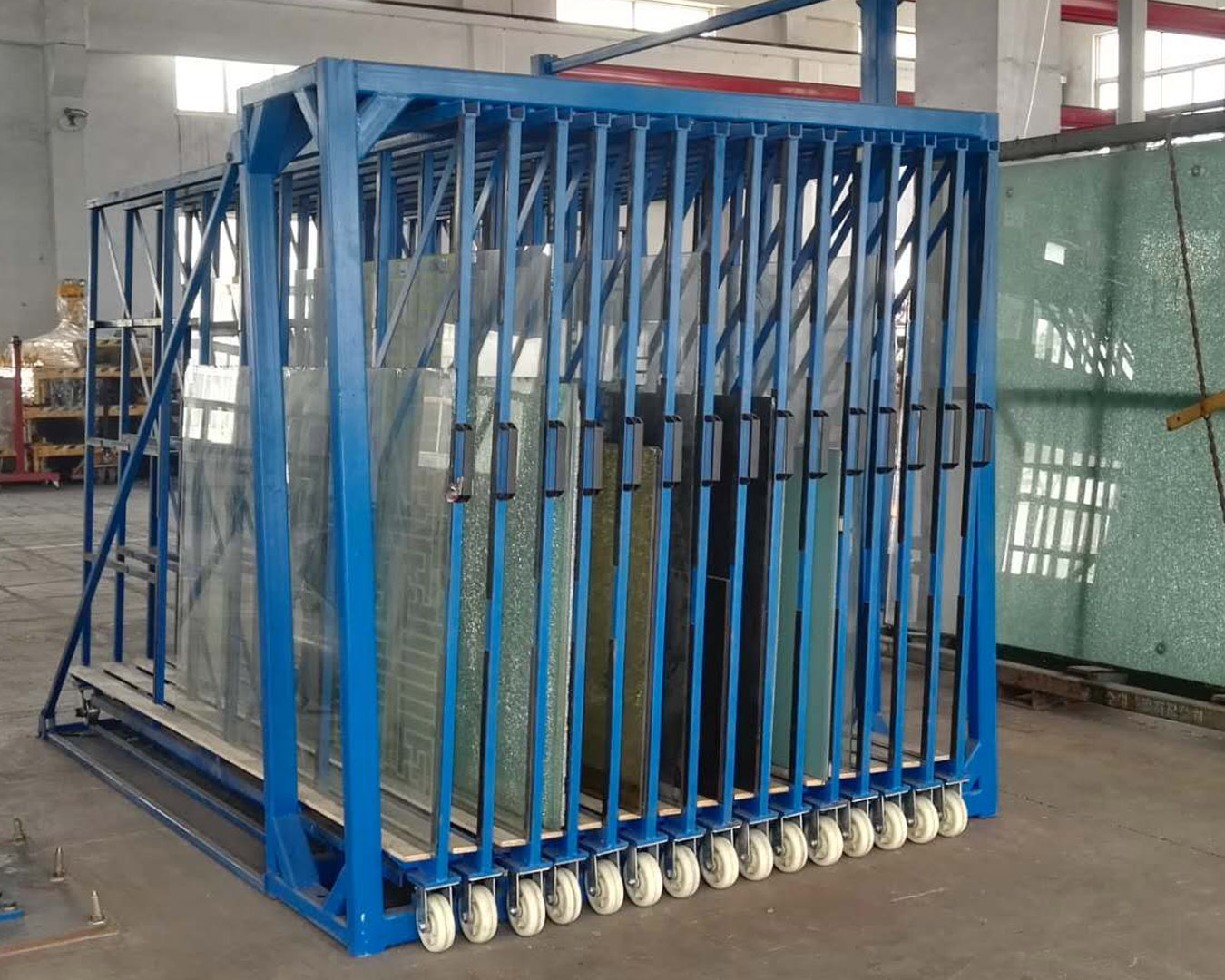

Drawer type glass racking system is especially designed with storing different glass size sheets and crates. The system features all steel construction and “U” grooved casters for workers to pull out the drawer, even when the drawer is heavily loaded. Easy to operate and daily maintaining, we have several stock sizes, but customized model and size are available.
Features:

  • All steel construction with rubber on the rack to proctect glass
  • “U” grooved casters and heavy duty casters for easy drawer pull-out
  • Walk-in base drawers rated at up to 40,000kgs for each drawer
  • Superior protection and electrostatic spraying for long lasting surface
  • Egular Drawer Type
  • Good space saver, light and compact, easier use
  • Mixed size model is available according to acutal needs
Specification:


Model

Glass Size

Storing Thickness for Each Drawer

Working Capacity for Each Drawer

Drawer Qty for One System

System Qty for 1*40HQ

TY-DRS2436-10-100

3660*2440mm

100mm

2000kgs

10

12

TY-DRS2436-5-230

3660*2440mm

230mm

4000kgs

5

8

TY-DRS1824-10-100

2440*1830mm

100mm

1400kgs

10

9

Drawing:
Product details:

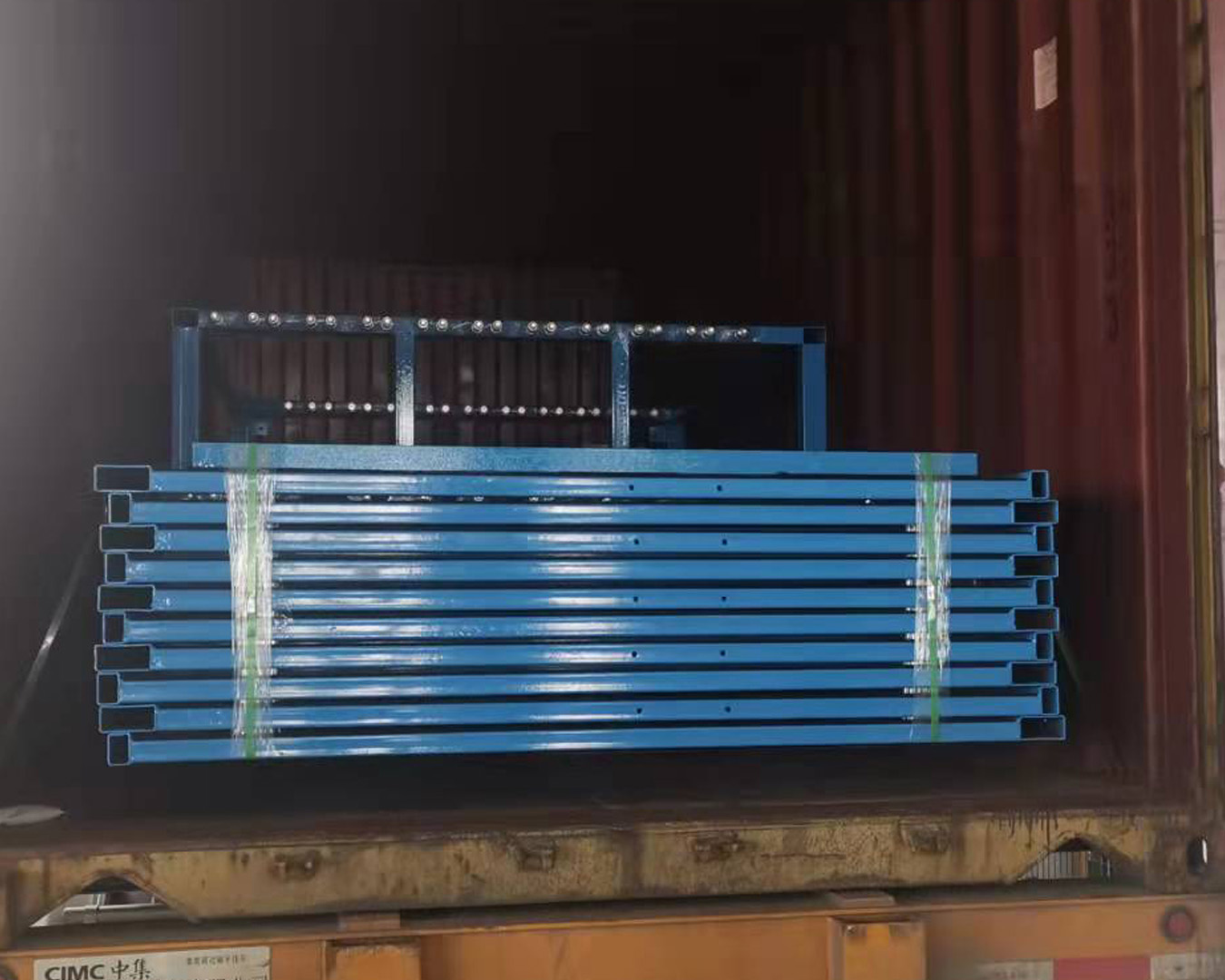

Shipment picture
Glass Motorized Glass Rack System
Product Overview:

The mobile load of glass storage rack handles up to 300 tons. There are hundreds of different glass packs weighing 3-4 tons per pack that are placed properly in one rack system to avoid frequently movement. In a word, the glass storage system is safe and efficient, and it is the best choice for all glass factories.
Features:

  • Light and compact, easier use
  • Storage in one compact shape and space
  • High quality rubber pads with built-in steel plates
  • Customized size and design are available
  • Sold and used in one set
  • Square steel tubing: 60*60*3mm
  • Electrostatic spraying for long lasting surface
  • Electrical control with speed of 1m/min
  • Overhead crane to pick up and put the glass pack
  • The height of warehouse needs to be more than 4m
  • One 40HQ can contain 20 racks

Specification:



Model

L*W

Storing Thickness for Each Drawer

Qty for 1*40HQ

Weight Load for one rack

TY-W30-1824-300

2440*1830mm

250mm

20racks

4000kgs

TY-W30-2436-240

2440*3660mm

250mm

20racks

4000kgs

Drawing:
Product details:
A Frame Glass Rack Trolley
Product Overview:

Sturdy structure, designed to eliminate any risk of slabs tipping over.Slabs are placed on a special rubber profiles and secured with four ratchet securing bars. Contains an extra storage section in the center that is ideal for storing tools. Frame features two eyelets which can be used to pick up the frame with an overhead crane. Built in brackets on all sides for forklift transport. Four 2T and 5T heavy-duty removable casters included. reaches 220mm, suitable for big truck transport.
Features:

  • Light and compact, easier use
  • Storage and transportation all in one
  • High quality rubber pads with built-in steel plates
  • Customized size and design are available
  • Sold and used in one
  • Racks can be stacked up when shipping to save freight cost
  • Square steel tubing: 60*60*3mm
  • Electrostatic spraying for long lasting surface
  • Step 220mm each side
  • Two universal wheels have brakes to fix

Specification:



Model

L*H*W

Storing Thickness

Working Loading

Self-weight

TY-AR2181690

1800*1600*900mm

220mm

2T

240kgs

TY-AR5181690

1800*1600*900mm

220mm

5T

240kgs

Drawing:
Product details:
Shipment picture
