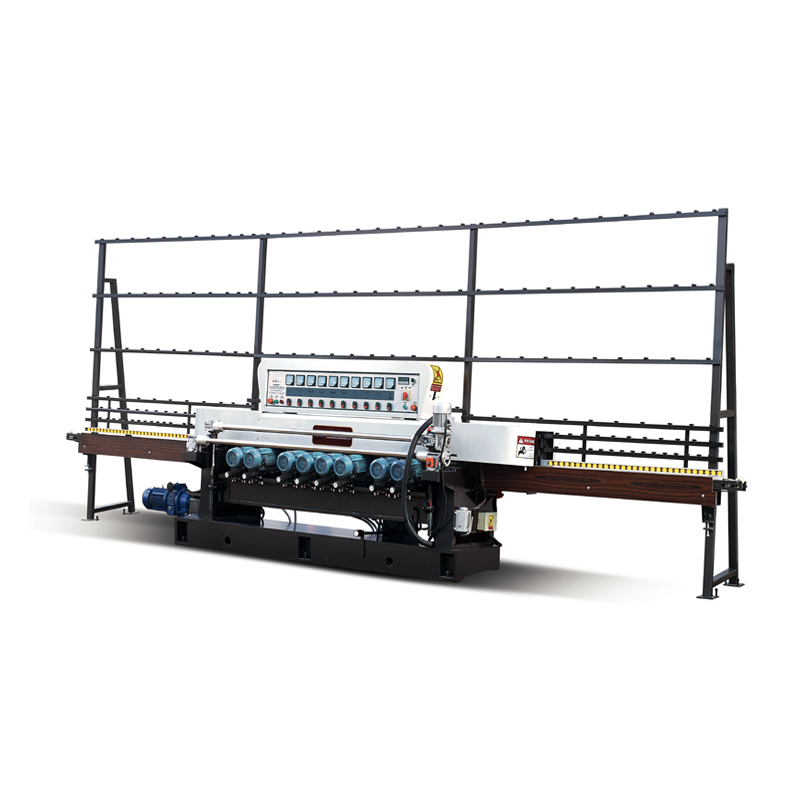

Glass Straight Line Beveling Machine in Vertical Type

This machine is suitable for edging and polishing of flat glass’s bevel and bottom edge in bulk,combining bevel edge’s coarse grinding ,fine grinding and polishing with bottom edge’s grinding at one time.The clamp plate using the forging parts,middle splint are refined with 40cr materials,so their wear ability can reach an incalculable limitation,In addition, the motors adopts international famous brand.Overall,this is a practical beveling machine made up of good-quality components.
  • JGXM261

Availability:
Quantity:

Product Description

toyocc100




Glass Straight-Line Beveling Machine

JGXM261


JGXM261-6JGXM261 straight line beveling machine grinding wheel configuration diagram


1

2

3

4

5

6

7

8

9

φ150

φ150

φ175

φ150

φ150

φ150

φ150

φ150

φ150

diamond wheel

diamond wheel

round wheel

resin wheel

resin wheel

resin wheel

Polishing wheels

felt wheel

felt wheel




Main data:


Model

JGXM261

power supply

380V/50HZ

Power

21KW

Max.bevel width

within 35mm

Min.glass size

80*80mm

Glass thickness

3-12mm

Weight

3500KG

Bevel angle

0-27°

Transmission

Stepless speed regulation

Process speed

0.7-3.5m/min

Workbench height

2500mm

Machine size

7000*1200*2500mm

Glass parallel error

±0.2mm/m

Glass chamfer bevel error

±0.2mm/m

Glass diagonal error

±0.3mm/㎡

Bevel location error

±0.2mm/㎡



Main configuration table:

Machinery main parts material configuration table

Electric machine



supplier

DeQuChi

specification

380V/50Hz

power

1.5kw~2.2kw

motor

supplier

ChaoRui

Conveyor drive motor


supplier

GuangDong JinJiang

specification

2.2KW variable frequency motor

Main bearing


Manufacturer

TaiWan ShangYin

supplier

NSK HaErBin

Pressing plate

Manufacturer

GuangDong LongJiang

Reduction gears

supplier

MengKaTe

Electric appliance

Manufacturer

ZhengTai



Alternating current contactor



Model

EV1000-4T0022G

Manufacturer

TianZheng

specification

1801C 1810C


Thermorelay



Model

LC1-D1801C,LC1-D1810C

Manufacturer

TianZheng

Name

LRD-C

Intermediate relay


specification

ShiNaiDe

Model

MY4N AC24V


DC electrical source


Manufacturer

ShiNaiDe

specification

5A

Motor tank

Materials

stainless steel


worm-gear case


Manufacturer

GuangDong YiChuan

Girder, base, motor seat


Materials

cast iron

 Technology

annealing treatment

electric wire

Manufacturer

ZhuJiang

Button, indicator light.

Manufacturer

ShiNaiDe




Machine Details

Detail 1

The swing drive motor, the angle of the swing frame is electrically adjusted, and the processing thickness can be adjusted manually or automatically, and can be operated with reference to the thickness display.







Detail 2

The angle adjustment electronic display makes the operation more convenient and the display more intuitive.



Detail 3

Overload protection circuit, when the motor is overloaded, the machine will automatically stop motors, which provides safety for the motors and operators.






Detail 4

The electric box adopts the pneumatic opening and closing method (traditional can only be completed by screw disassembly, the steps are cumbersome and waste of time) and a safety lock is added to ensure the safety of the operator. The entire design not only improves efficiency, but also improves the degree of safe production.



Detail 5

Using stepless speed regulating motor, it can control processing speed, work efficiency and high performance stability







Detail 6 :

Using synchronous belt transmission, higher accuracy and stability.



Detail 7 :

Cast iron forging: The base beams are all cast parts, and are processed by high-temperature annealing and precision grinders, which are durable in quality.






The effect:



















list of accessories(Gift with the machine)

Name

model

Quantity





diamond wheel



Φ150



2









resin wheel



Φ150



3



Polishing wheel



Φ150



2



Polishing wheel



Φ150



1




Bottom wheel



Φ175



1




Polishing powder




1


toolbox


1




Water tank





1






Water tank





1



hardware tool




Set




1





installation instructions



book


1




Machine maintenance


instruction


book


1


book




Water shield




1



Universal hose




1








Consumables list reference

No.

Product Name

Pictures

Remark

1

Conveyor pressure back (front & back)


2

Grinding wheel


3

Water string


4

Brush


5

Chain


6

Universal conduit


8

Emergency stop switch


9

Rotary switch
